Запчасти Case IH 324 (18) - HYDRAULIC CYLINDER

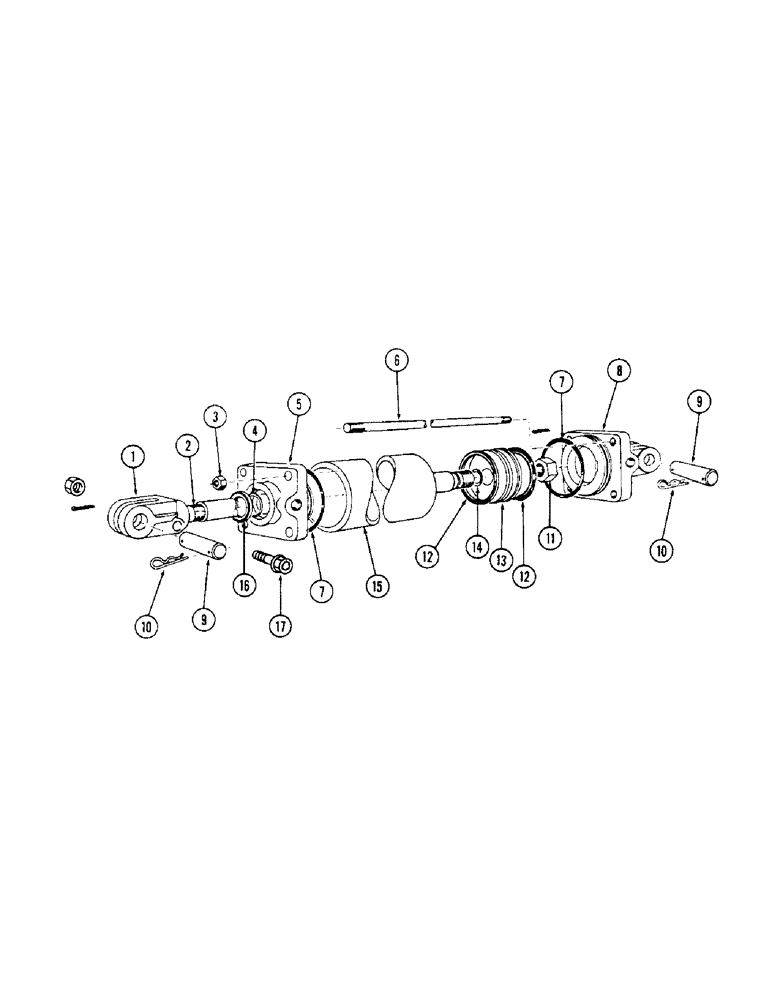

Схема запчастей Case IH 324 - (18) - HYDRAULIC CYLINDER
13
9
15
6
9
12
3
12
10
2
11
1
4
8
10
7
7
16
5
17
14

Артикул

Название

Примечание

Количество

T53854

CYLINDER - hydraulic, cpt

2шт.

1

T53858

CLEVIS - rod

1шт.

2

T53861

ROD

- piston

1шт.

3

129-105

NUT,Hex, 1/2" - 13, Gr 5

Tie rod 1/2"-13, G5

4шт.

4

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - 3-1/4" x 1-3/8"

1шт.

Part of seal kit P/N T63137

1шт.

5

T53857

CAP - rod

1шт.

6

T53862

ROD - tie

4шт.

7

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

"O" RING - 3-1/4" x 3-1/2"

2шт.

Part of seal kit P/N T63137

1шт.

8

T53856

CAP - clevis

1шт.

9

T53860

PIN - yoke

2шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

2шт.

10

A29054

HAIR PIN COTTER

COTTER - hairpin

2шт.

11

129-129

NUT,7/8"-14, G5

- piston rod, 7/8" N.F. hex

1шт.

T53400

PACKING - vee block

2шт.

Part of seal kit P/N T63137

1шт.

13

T53859

PISTON

1шт.

14

D32114

O-RING,0.75" ID x 0.875" OD

"O" RING - 3/4" x 7/8"

1шт.

15

T53863

TUBE - cylinder

1шт.

16

T53429

OIL SEAL

SEAL - oil

1шт.

Part of seal kit P/N T63137

1шт.

17

61-628

HEX SOC SCREW,3/8"-16 x 1 3/4"

CAPSCREW - 3/8" x 1-3/4" N.C., socket head

1шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

T63137

KIT

SEAL KIT - Includes: Ref. 4, 7, 11 and 16

1шт.

Выбрано товаров: 25
