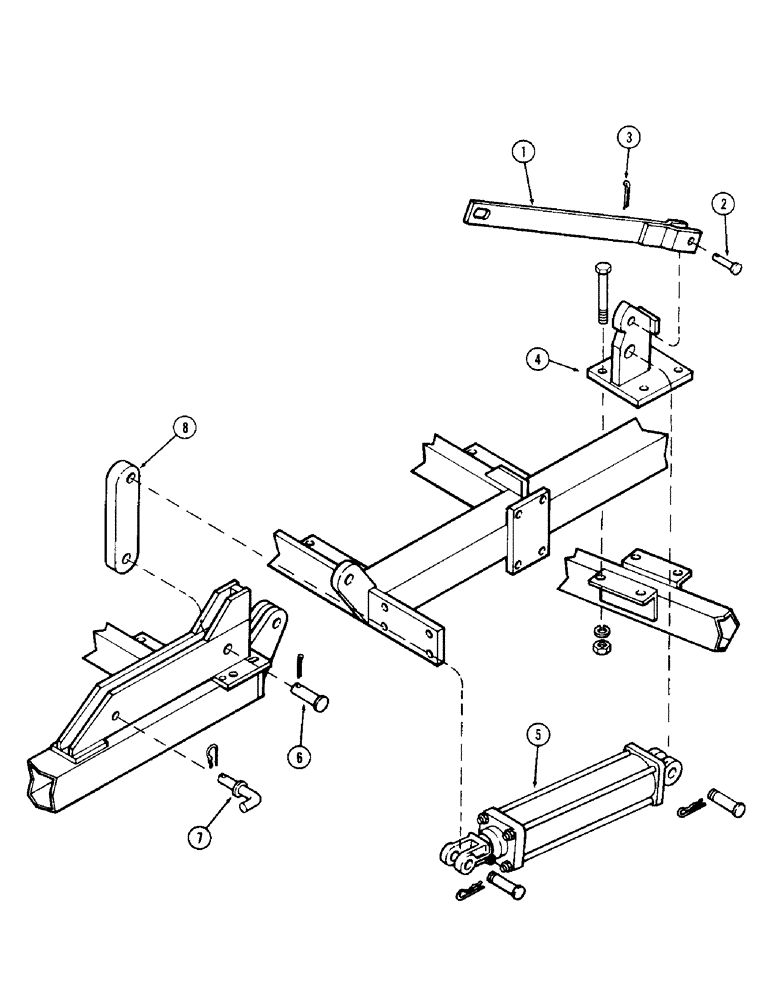

Запчасти Case IH 324 (16) - HYDRAULIC WING LIFT

1

T53459

LOCKUP - wing

2шт.

2

T53873

PIN - 3/4" x 3-3/4"

2шт.

3

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

2шт.

4

T53851

BRACKET - cylinder, R.H.

1шт.

4

T53852

BRACKET - cylinder, L.H.

1шт.

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- 5/8" x 6" N.C. hex., Z.P.

8шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

129-107

NUT,5/8"-11, G5

8шт.

5

T53854

CYLINDER - wing lift w/pins (See page 18)

2шт.

6

T53843

PIN - hinge, 1" x 3-3/4"

2шт.

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

7

T53849

PIN - lockup

2шт.

136-163

HAIR PIN COTTER,Int, 5/16" x .177

COTTER - hairpin, #8

2шт.

8

T53461

LIFT ARM - wing

2шт.
