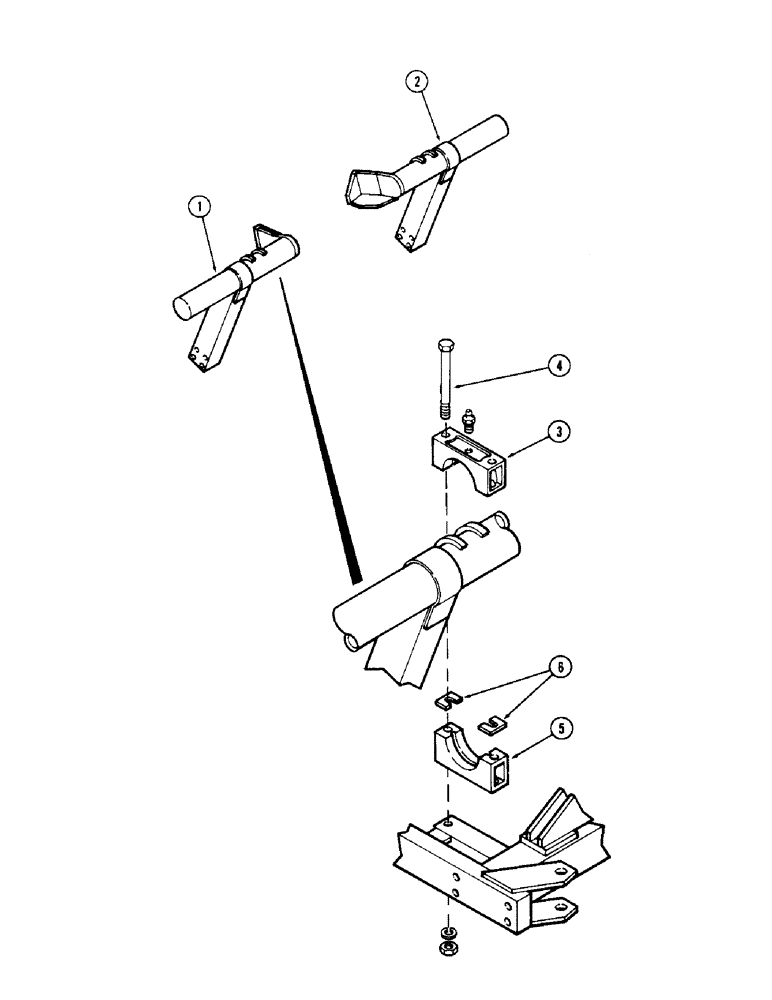

Запчасти Case IH 324 (14) - SHORT WING TORQUE TUBE

1

T53452

TORQUE TUBE - short wing, R.H.

1шт.

2

T53451

TORQUE TUBE - short wing, L.H. 8.312" L

1шт.

3

T53464

BEARING

- upper

4шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

4шт.

4

113-642

BOLT,Hex, 5/8" - 11 x 8", Gr 5

- 5/8" N.C. hex., Z.P.

8шт.

192-25

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

129-107

NUT,5/8"-11, G5

8шт.

5

T30905

X

BEARING - lower

4шт.

6

T30897

SHIM - torque tube

24шт.
