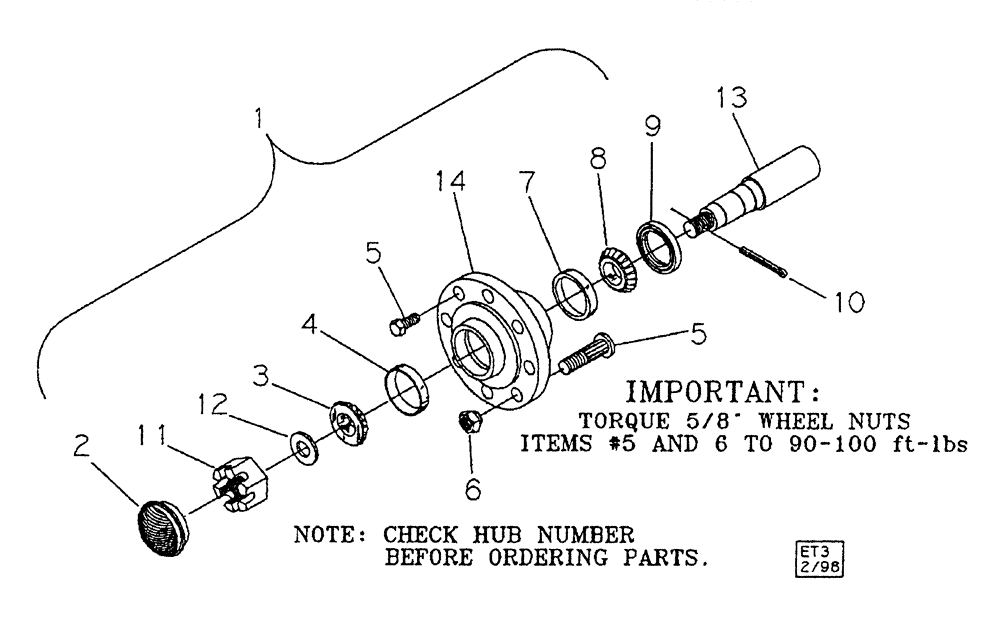

Запчасти Case IH 2500 ECOLO-TIL (44.100.08) - 50-8 HUB AND SPINDLE - C AND D FRAMES (44) - WHEELS

1

28150800

HUB ASSY.

50-8 8-Bolt

1шт.

2

28460800

DUST CAP

Hub

1шт.

3

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1.62" Bore - Timken #LM501349

1шт.

4

663558R1

BEARING CUP

2.89" O.D.- Timken #LM501310

1шт.

5

16410087

STUD

5/8" x 2-1/4" NF Wheel

8шт.

6

554480R1

WHEEL NUT

5/8" NF Wheel

8шт.

7

376463C1

BEARING CUP

3.22" O.D. Cup - Timken #JLM104910

1шт.

8

21872005

ROLLER BEARING,50 mm ID

2.00" Bore - Timken #LM104948

1шт.

9

21932502

SEAL

2.50" I.D. x 3.25" CR#535150

1шт.

10

432-1024

COTTER PIN,5/32" x 1 1/2"

3/16" x 2"

1шт.

11

425-1316

NUT,1"-14, G5

1" NF

1шт.

12

17916100

WASHER

1" Dia. Heavy

1шт.

13

28350831

SPINDLE

1шт.

14

28250800

HUB ASSY.

50-8 with Cups

1шт.

15

28050884

HUB ASSY.

50-8 Spindle (Not Shown)

1шт.
