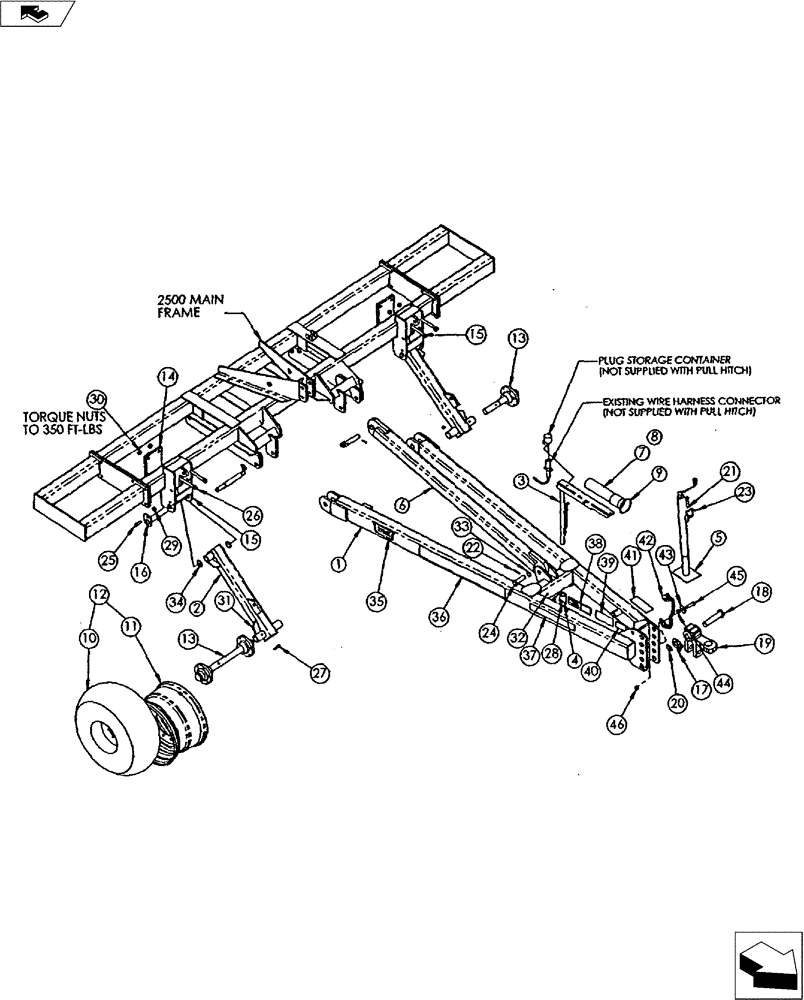

Запчасти Case IH 2500 ECOLO-TIL (39.100.07) - PULL HITCH ASSEMBLY (39) - FRAMES AND BALLASTING

1

09663000

FRAME ASSY

Pull Hitch Weldment

1шт.

2

09661085

ARM

Wheel LH

1шт.

2

09661090

ARM

Wheel RH

1шт.

3

05302150

STAND

Swinging Hose Boom

1шт.

4

09983458

BAR ASSY.

Mount Weld

1шт.

5

32230000

JACK

5000 lb

1шт.

6

09661010

LINK

Weldment

1шт.

7

30026030

TUBE

Manual Canister

1шт.

8

00101124

Manual

1шт.

9

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

Worm Gear

1шт.

10

NSS

NOT SOLD SEPARAT

Tire 12.5 x 15 12-Ply (Single Hub & Spindle; A & B Frames)

2шт.

10

NSS

NOT SOLD SEPARAT

Tire 12.5 x 15 F1 (Single Hub & Spindle; C & D Frames )

2шт.

10

NSS

NOT SOLD SEPARAT

Tire 11 L x 15 & ply (Dual Hub & Spindle; All Frames)

4шт.

11

10110154

WHEEL

10 x 15 6 Bolt (White) (Single Hub & Spindle, A & B Frames; Dual Hub & Spindle, All Frames)

1шт.

11

10110174

WHEEL

10 x 15 8 Bolt (White) (Single Hub 8 Spindle, C & D Frames)

2шт.

12

10010161

LAND WHEEL

12.5 x 15 - 12 Ply Tire/Assy. (White) (Single Hub 8 Spindle; A & B Frames)

2шт.

12

10010186

WHEEL ASSY.

12.5 x 15 F1 Tire/(White) (Single Hub 8 Spindle; C & D Frames)

2шт.

12

10010152

LAND WHEEL

11L x 15 - 8 Ply Tire/Assy. (White) (Dual Hub & Spindle: All Frames)

4шт.

13

28078323

HUB ASSY.

783 Single Spindle (A & B Frames)

2шт.

13

28050884

HUB ASSY.

50-8 Single Spindle (C 8 D Frames)

2шт.

13

28678306

HUB ASSY.

783 Dual Spindle (All Frames)

2шт.

14

09576403

BRACKET

Mount Plate (A 8 B Frames)

2шт.

14

09661061

PLATE

Mount (C & D Frames)

2шт.

15

09661060

BRACKET

Wheel Mount Weld

2шт.

16

14820640

SPECIAL PIN

1-5/8"

2шт.

17

09967531

BRACKET

Klik Pin Protector

1шт.

18

14820520

HITCH PIN

1-5/8"

1шт.

19

20092310

CLEVIS

Combo

1шт.

20

D33805

PIN

7/16" x 2" Klik

1шт.

21

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" x 3-1/8"

1шт.

22

438-32440

PIN,3/8" x 2 1/2", Coiled

2" Roll

1шт.

23

NSS

NOT SOLD SEPARAT

Hair Pin

1шт.

24

14820211

PIN,31.75mm OD x 112.14mm L

1-1/4" x 3.88" Long Pin

1шт.

25

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

NC

2шт.

26

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

NC (A & B Frames)

8шт.

26

413-14136

BOLT,Hex, 7/8" - 9 x 8-1/2", Gr 5

NC (C & D Frames)

8шт.

27

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

NC

2шт.

28

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

NC

2шт.

29

232-41410

LOCK NUT,5/8"-11, GC

Stover

2шт.

30

425-1012

NUT,3/4"-10, G5

Hex. (A 8 B Frames)

8шт.

30

425-1014

NUT,7/8"-9, G5

Hex. (C & D Frames)

8шт.

31

232-4148

NUT,1/2"-13, GC

Stover

2шт.

32

232-4146

NUT,3/8"-16, GC

Stover

2шт.

33

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4" Machinery

1шт.

34

17627010

WASHER,41.67mm ID x 60.33mm OD x 2.08mm Thk

1-5/8" Machinery

4шт.

35

18534259

DECAL

DMI Logo

2шт.

36

18532035

DECAL

Tiger Stripe

2шт.

37

18534307

DECAL

"Helping Plants Thrive"

2шт.

38

18534333

DANGER DECAL

Sign

1шт.

39

18534228

DECAL

Caution Sign

1шт.

40

18534134

DECAL

Warning Sign

1шт.

41

18534140

WARNING DECAL

Sign

1шт.

42

100682C3

CHAIN (AG)

10,100 Lbf Safely

1шт.

43

06000554

WASHER

1шт.

44

06000555

SPACER

1шт.

45

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

1шт.

46

232-41412

LOCK NUT,3/4"-10, GC

Stover

1шт.
