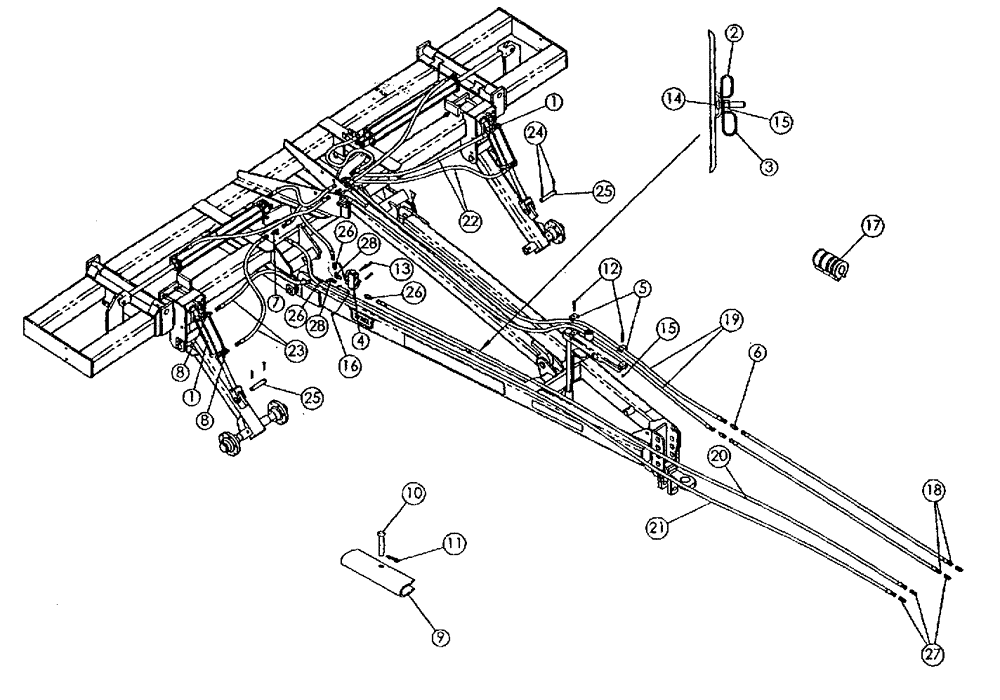

Запчасти Case IH 2500 ECOLO-TIL (35.100.07) - PULL HITCH HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

25330101

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

3" x 10" 3000 psi (A & B Frames)

2шт.

1

25330101R

REMAN-HYD CYLINDER

2500 ECOLO-TIL PULL HITCH - DMI, 3000 psi (A & B Frames)

2шт.

1

25330101C

CORE-HYD CYLINDER

Return Number

2шт.

1

25335101

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 254mm Stroke

3-1/2" x 10" 3000 psi Hydraulic (C & D Frames)

2шт.

2

22510700

HOSE CLAMP,15.86mm

5/8" Cushioned

1шт.

3

22510710

HOSE CLAMP

3/4" Cushioned

1шт.

4

25401258

DIVIDER ASSY.

Flow

1шт.

5

06200125

HOSE CLAMP

4шт.

6

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

2шт.

7

218-594

TEE,3/4"-16, 37 Degree

1шт.

8

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

4шт.

9

04632700

STAY

Cylinder Sop

2шт.

10

14810251

HEADED PIN,15.88mm OD x 96.77mm L

5/8" x 3-1/8"

2шт.

11

NSS

NOT SOLD SEPARAT

1/8" x 2" Hair Pin

2шт.

12

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

13

16005105

5/16" x 2-1/2" Hex.

3шт.

14

134-3

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 2", Gr 5, Full Thd

1-3/4"

1шт.

15

232-4146

NUT,3/8"-16, GC

Stover

5шт.

16

425-105

NUT,5/16"-18, G5

Hex.

3шт.

17

7737869

COLLAR

1-1/4" Stroke Control Kit

2шт.

18

25610645

HYDRAULIC HOSE

3/8" x 80" Long (Not Included)

2шт.

19

25600726

HYDRAULIC HOSE,0.38" ID x 130.50", SAE 100R17

3/8" x 130-1/2" Long (C & D Frames)

2шт.

20

25610901

HYDRAULIC HOSE

3/8" x 196" Long

1шт.

21

25610902

HOSE ASSY.

3/8" Hydraulic x 230" Long

1шт.

22

25600681

HYDRAULIC HOSE,0.38" ID x 121.00", SAE 100R17

2шт.

23

25600607

HYDRAULIC HOSE,0.38" ID x 76.00", SAE 100R17

2шт.

24

432-1632

COTTER PIN,1/4" x 2"

8шт.

25

14891680

SPECIAL PIN

1"

4шт.

26

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

3шт.

27

25705041

COUPLING

3/4" ISO Male Hydraulic

4шт.

28

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

2шт.
