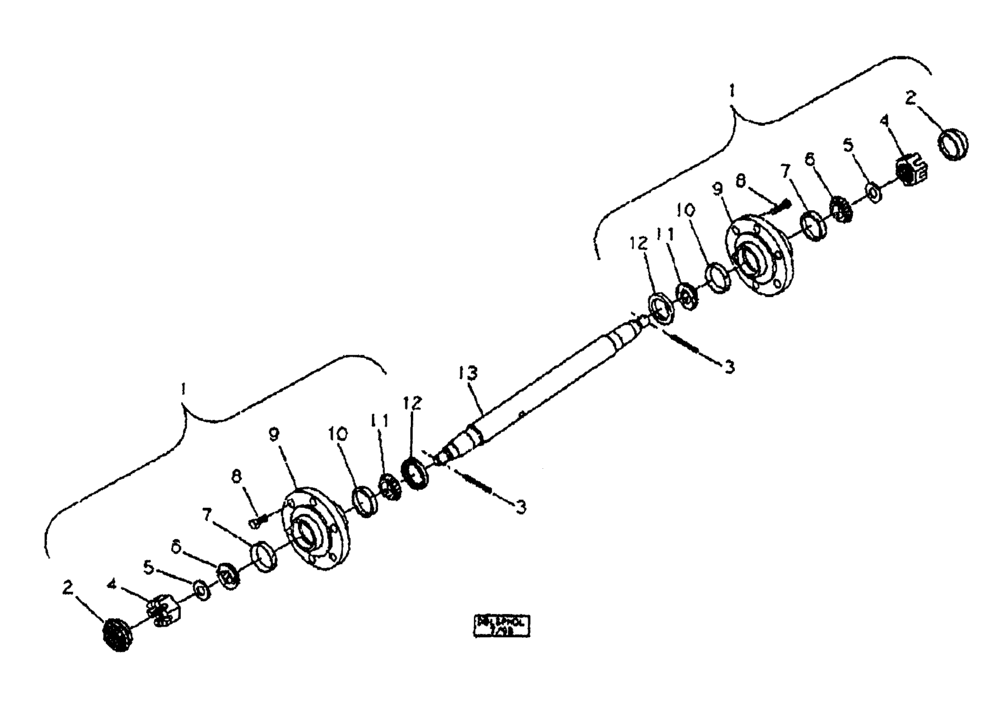

Запчасти Case IH 2500 ECOLO-TIL (44.100.09) - 783 DUAL HUB AND SPINDLE (44) - WHEELS

1

28178300

HUB ASSY.

783

2шт.

2

28477700

HUB CAP

2шт.

3

432-1024

COTTER PIN,5/32" x 1 1/2"

2шт.

4

425-1314

SLOTTED NUT,7/8"-14, G5

7/8" NF

2шт.

5

17915000

WASHER

7/8", Heat Treated

2шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25" Bore - Timken #LM67048

2шт.

7

651817R1

BEARING CUP

2.33" O.D. -Timken #LM67010

2шт.

7

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

8

16408053

SPECIAL BOLT

1/2" x 1" NF Wheel

12шт.

9

28278300

HUB

783 W/Cups

2шт.

10

663558R1

BEARING CUP

2.89" O.D. - Timken #LM501310

2шт.

11

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1.625" Bore - Timken #LM501349

2шт.

12

145769C91

OIL SEAL

1.87" - CR #I8823

2шт.

13

28378314

SPINDLE

2.5" Double

1шт.
