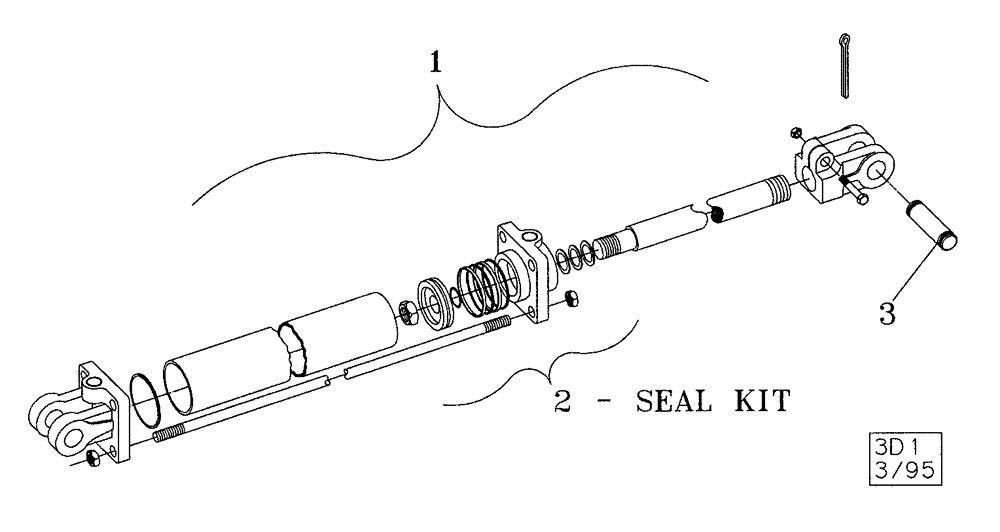

Запчасти Case IH 2500 ECOLO-TIL (35.100.02) - HYDRAULIC CYLINDERS (35) - HYDRAULIC SYSTEMS

1

25330241

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

3" x 24", 3000 PSI

1шт.

1

25335101

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 254mm Stroke

3-1/2" x 10" Hydraulic - SAE Ports (20-1/4" Closed) - 3.000 psi

1шт.

2

25330242

3-1/2" x 24", 3000 PSI

1шт.

2

1024314

KIT

For Cylinder 25335101

1шт.

2

25833527

SEAL KIT

Kit - 1-1/4" Dia. Rod - 3-1/2", 24" Hydraulic Cylinder

1шт.

3

25890100

KIT

1" Dia.x 3" Clevin Pin (Includes Both Pins and Cotter Pins)

1шт.
