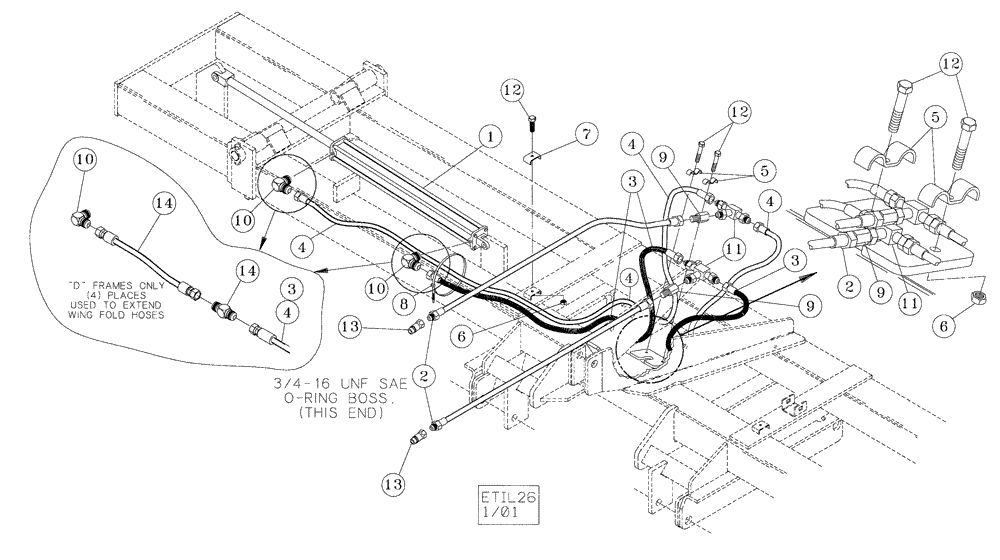

Запчасти Case IH 2500 ECOLO-TIL (35.100.01) - 2500 HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

25330241

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

3 x 24, 3000 PSI

2шт.

1

25335242

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 609.6mm Stroke

3-1/2 x 24, 3000 PSI

2шт.

25335242R

REMAN-HYD CYLINDER

2500 ECOLO-TIL

2шт.

25335242C

CORE-HYD CYLINDER

Return Number

1шт.

2

25610645

HYDRAULIC HOSE

3/8" x 80" Long

2шт.

3

25600630

HYDRAULIC HOSE,0.38" ID x 30.00", SAE 100R17

2шт.

3

25600642

HYDRAULIC HOSE,0.38" ID x 42.00", SAE 100R17

2шт.

4

25600655

HYDRAULIC HOSE,0.38" ID x 55.00", SAE 100R17

2шт.

4

25600670

HYDRAULIC HOSE,0.38" ID x 68.00", SAE 100R17

2шт.

5

22530601

HOSE CLAMP

Double

2шт.

6

425-106

NUT,3/8"-16, Cl 5

4шт.

7

06200125

HOSE CLAMP

Painted

2шт.

8

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP 30"

2шт.

9

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

Purple

2шт.

10

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

2шт.

11

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

3шт.

12

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

6шт.

13

25705041

COUPLING

Male, ISO-3/4 SAEF, Hydraulic

4шт.

14

25600613

HYDRAULIC HOSE,0.38" ID x 12.00", SAE 100R17

D Frame Only

4шт.

15

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

4шт.
