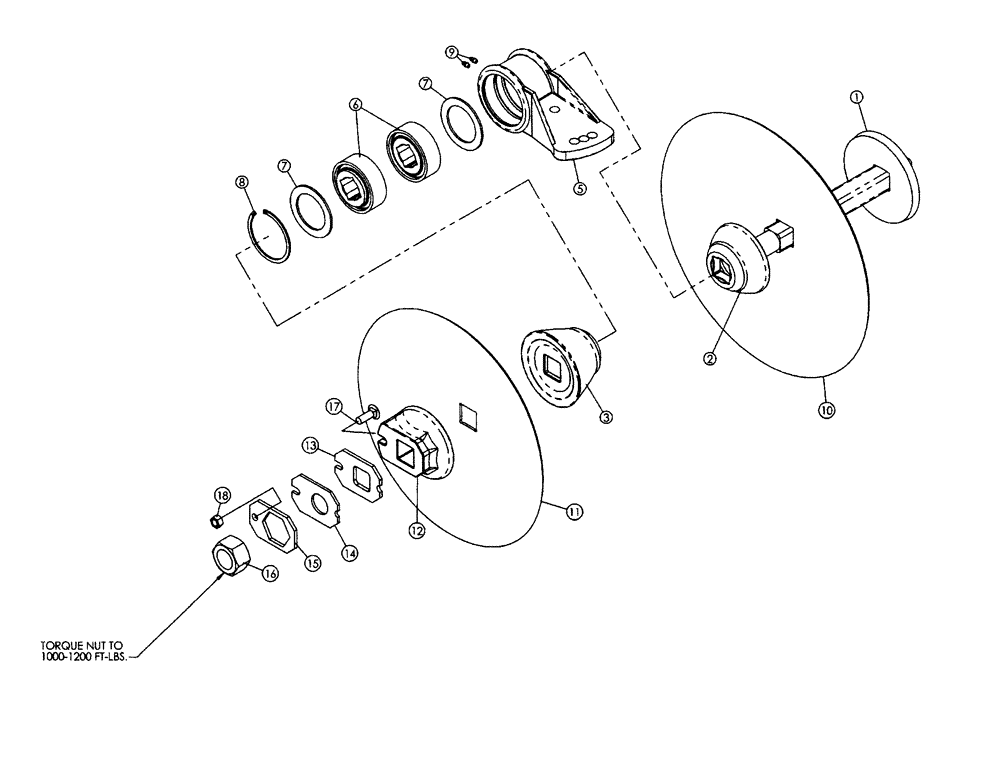

Запчасти Case IH 2500 ECOLO-TIL (75.200.19) - BEDDER GANG PARTS (75) - SOIL PREPARATION

1

429859A1

AXLE

Weldment Assy

1шт.

2

429860A1

FRAME

End Bell, Small

1шт.

3

429861A1

FRAME

End Bell, Large

1шт.

4

429862A1

BEARING ASSY

Housing Assy, Include Ref. 5 - 9 (Not Shown)

1шт.

5

87410523B

BRACKET

Housing

1шт.

5

87410522B

BRACKET

Housing

1шт.

6

429864A1

BALL BEARING,100 mm OD x 1.531"

DC211TTR27

2шт.

7

T55591

WASHER,70.61mm ID x 100mm OD x 3.4mm Thk

Protecto-Shield

2шт.

8

100-21400

SNAP RING,4.00", Int, #400

1шт.

9

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

10

429865A1

PLOW DISC

20" x 1/4" Plain

1шт.

11

T51604

PLOW DISC

18" x 3/16" Plain

1шт.

12

T54657

WASHER

End Gang

1шт.

13

T54647

PLATE

Spacer

1шт.

14

T54646

PLATE

Bearing

1шт.

15

T55051

PLATE

Lock

1шт.

16

25-1124

NUT,1 1/2"-12, G5

NF Hex.

1шт.

17

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

1шт.

18

131-473

HARDWARE

1/2, NC, Lock Nut

1шт.
