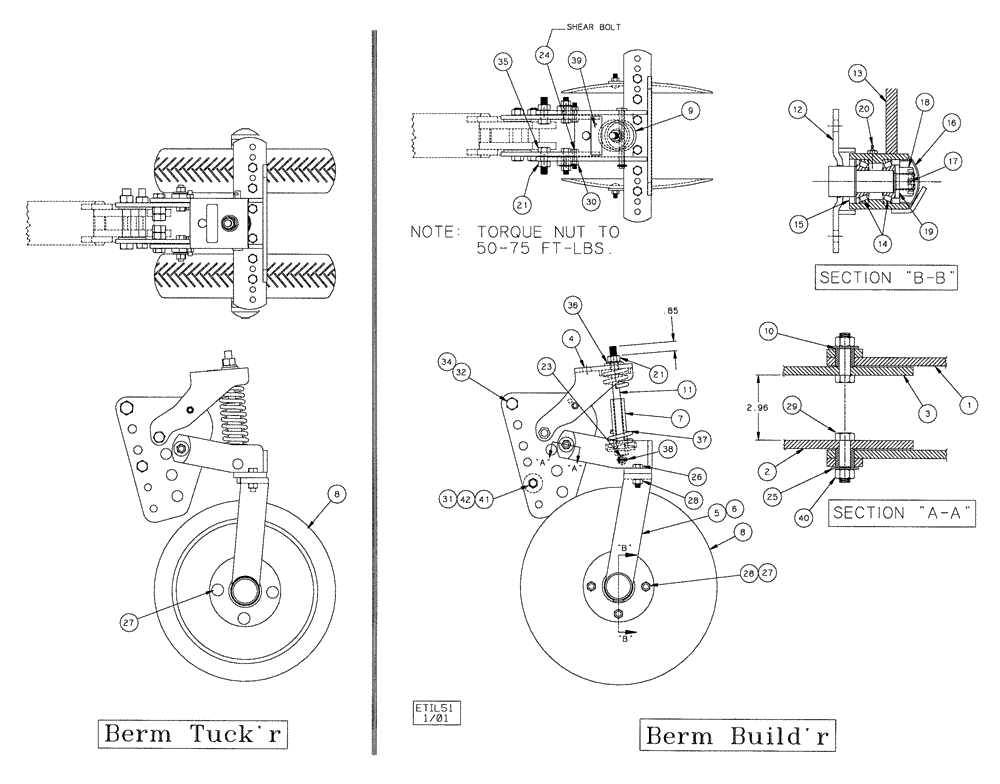

Запчасти Case IH 2500 ECOLO-TIL (75.200.11) - BERM BUILDR AND BERM TUCKR FOR 2500 UNITS PRIOR TO 2008 PRODUCTION (75) - SOIL PREPARATION

1

09662001

PIVOT

Arm Weld

1шт.

2

09662007

BRACKET

Mount Weld, L.H.

1шт.

3.

09662006

BRACKET

Mount Weld, R.H.

1шт.

4

09662002

BRACKET

Spring Mount Weld

1шт.

5

09662020

ARM ASSY.

R.H., Sealer

1шт.

6

09662032

ARM ASSY.

L.H., Sealer

1шт.

7

09662004

TUBE

1шт.

8

10004160

WHEEL ASSY

4" x 16", Tire, Berm Tuck'r

2шт.

8

84180366

DISK HARROW

Disc Blade, (Berm Build'r)

2шт.

9

09662008

WASHER

Weld

1шт.

10

02323001

BUSHING

Heat Treated

2шт.

11

09662003

SPECIAL BOLT

Pivot

1шт.

12

09103120

DISC

Spindle Weld

1шт.

13

09662023

ARM ASSY.

Sealer, R.H.

1шт.

13

09662024

ARM ASSY.

Sealer, L.H.

1шт.

14

463911R91

ROLLER BEARING,1" ID x 0.58"

1.00" Bore, Timken L44643

2шт.

15

21931375

SEAL

1.375" ID, CR533468

1шт.

16

28420021

CAP

Grease

1шт.

17

432-816

COTTER PIN,1/8" x 1"

1шт.

18

425-1312

SLOTTED NUT,3/4"-16, G5

1шт.

19

17412001

WASHER,19.46mm ID x 38.1mm OD x 4.78mm Thk

3/4" Special Flat

1шт.

20

219-87

LUBE NIPPLE,1/4" - 28 NPTF

Straight Zerk

1шт.

21

85700693

NUT,5/8" - 11, Gr C

NC Stover

4шт.

23

14808400

SPECIAL PIN,12.7mm OD x 138.76mm L

1/2" Dia. x 5" EL

1шт.

24

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

NC Z.P.

2шт.

25

495-21056

WASHER,1/2"

Standard, Z.P.

2шт.

26

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

NC Z.P.

4шт.

27

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

8шт.

28

425-108

NUT,1/2" - 13, Gr 5

NC Hex.

12шт.

29

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

NC Z.P.

2шт.

30

86992213

NUT

3/8", NC, Stover

2шт.

31

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

NC Z.P.

1шт.

32

425-1012

NUT,3/4"-10, G5

NC Hex.

1шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

Standard Z.P. (Not Shown)

2шт.

34

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

NC Z.P.

1шт.

35

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

NC Z.P.

2шт.

36

17409010

WASHER,14.22mm ID x 35.05mm OD x 4.75mm Thk

9/16" ID x 1-3/8" OD

1шт.

37

09662009

SPRING

Compression

1шт.

38

432-816

COTTER PIN,1/8" x 1"

Z.P.

1шт.

39

18534174

DECAL

Other Patent Applied

1шт.

40

87333862

NUT

1/2"NC Hex.

2шт.

41

495-81028

WASHER,21/32" x 1 1/2" x .240"

Heavy, For Spring Reset Only

1шт.

42

425-1010

NUT,5/8"-11, G5

NC Hex.

1шт.
