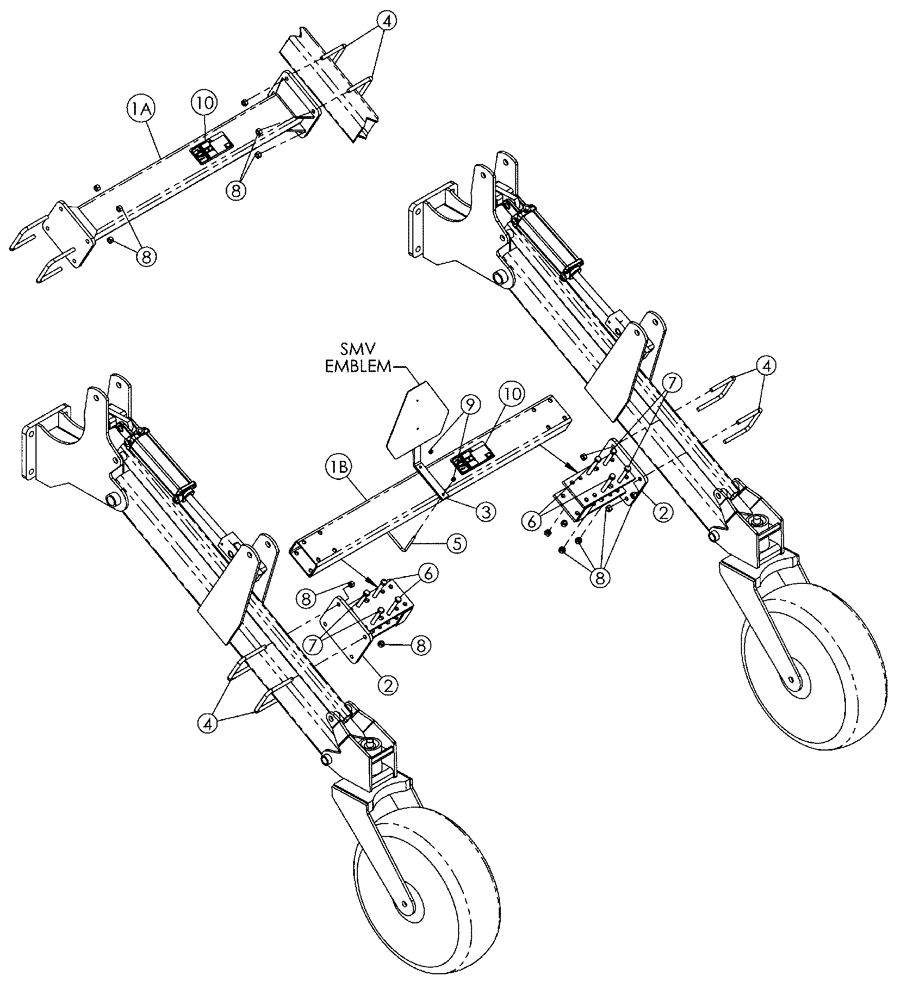

Запчасти Case IH 2500 ECOLO-TIL (75.200.08) - LIFT ASSIST STABILIZER BAR ASSEMBLY PARTS (75) - SOIL PREPARATION

1a

09662150

TUBE,56" Length

Stabilizer ( 30")

1шт.

1b

09662100

TUBE,62.5" Length

Stabilizer( 36", 38", And 40")

1шт.

2

09662110

STABILIZER

Adjustable End, (with 36", 38" And 40" Only)

2шт.

3

09662230

PRODUCT GRAPHIC

SMV Bracket

1шт.

4

87427168

U-BOLT

5/8" x 6" x 5-1/2"

4шт.

4

16310030

U-BOLT

BOLT "U" 5/8" x 6" x 5-1/2"

4шт.

5

16309101

U-BOLT,3/8" - 16, Square, 4" W x 6" L

BOLT "U" 3/8", Square

1шт.

6

413-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

NC ZP

4шт.

7

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

NC ZP

4шт.

8

85700693

NUT,5/8" - 11, Gr C

1шт.

9

86992213

NUT

3/8" NC Stover

2шт.

10

18534388

DECAL

Warning Sign, Speed

1шт.
