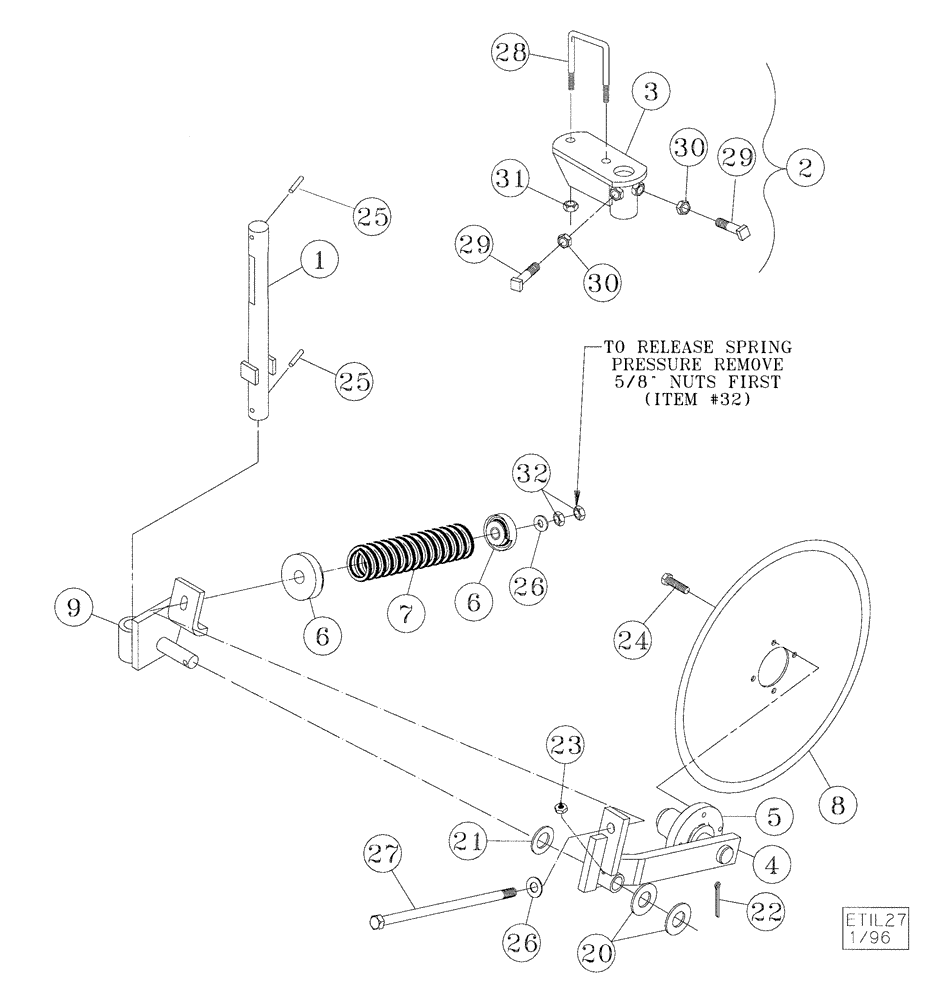

Запчасти Case IH 2500 ECOLO-TIL (75.200.07) - 22" SPRING COULTER ASSEMBLY (75) - SOIL PREPARATION

1

09661820

SUPPORT

Coulter Shaft, 22"

1шт.

2

P6466340

KIT

22, Mount with Hardware, For 4" x 6" Bar

1шт.

2

09661838

BAR ASSY.

22", Mount with Hardware, 4" x 6"

1шт.

2

09661839

BAR ASSY.

22", Mount with Hardware, 6" x 6"

1шт.

3

87460812

MOUNTING PARTS

22", Coulter, FOr 4" x 6" Bar

1шт.

3

09661835

SUPPORT

22", Coulter, For 4" x 6" Bar

1шт.

3

09661830

SUPPORT

22", Coulter, For 6" x 6" Bar

1шт.

4

09661852

SUPPORT

Coulter Arm, For 4" x 6" Bar

1шт.

4

04663300

SUPPORT

Coulter Arm, For 6" x 6" Bar

1шт.

5

28063331

HUB ASSY.

633, 4-Bolt, with Spindle

1шт.

6

20090050

HOLDER

Spring, Casting

2шт.

7

24156205

COIL SPRING

Compression

1шт.

8

443635A1

DISC

22", Plain, 4.5 MM

1шт.

8

443637A1

PLOW DISC

22", Wavy

1шт.

8

33502240

PLOW DISC

22", Coulter, Smooth

1шт.

8

33502251

PLOW DISC

22", Coulter, Wavy

1шт.

9

09661841

SUPPORT

Coulter Pivot

1шт.

20

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4", Machine, 14 Ga.

2шт.

21

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4", Machine, 10 Ga.

1шт.

22

14700803

COTTER PIN

1/4" x 2"

1шт.

22

432-1632

COTTER PIN,1/4" x 2"

1шт.

23

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

23

15302005

FITTING

1/8" NPT

1шт.

24

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

24

S0000210

BOLT

1/2"x 1-1/4" , NF, Hex., Gd. 5

4шт.

25

438-32840

PIN,11.1mm OD x 63.5mm L

2шт.

25

14741412

ROLL PIN

7/16", ZP

2шт.

26

495-81028

WASHER,21/32" x 1 1/2" x .240"

2шт.

26

17411012

WASHER

11/16" ID x 1-3/4" OD x .25"

2шт.

27

413-10216

BOLT,Hex, 5/8" - 11 x 13-1/2", Gr 5

1шт.

27

16010549

BOLT

5/8" x 13-1/2", NC, Gd. 5

1шт.

28

87427182

U-BOLT

BOLT "U" 3/4" x 4" x 7-1/2", For 4" x 6" Bar

1шт.

28

16312020

U-BOLT

BOLT "U" 3/4" x 4" x 7-1/2", For 4" x 6" Bar

1шт.

28

87427188

U-BOLT

BOLT "U" 3/4" x 6" x 7-1/2", For 6" x 6" Bar

1шт.

29

16812075

SET SCREW

3/4" x 1-3/4", Square Head

2шт.

29

16812084

SET SCREW,3/4" - 10 x 2"

3/4" x 2", Set, Square Head

2шт.

30

425-1412

JAM NUT,Jam, 3/4"-10, G5

NC

2шт.

30

14031201

NUT

3/4", NC, Jam

2шт.

31

425-1012

NUT,3/4"-10, G5

2шт.

31

14001205

NUT

3/4", NC, Hex., Gd. 5

2шт.

32

425-1010

NUT,5/8"-11, G5

2шт.

32

14001205

NUT

5/8", NC, Hex., Gd. 5

2шт.
