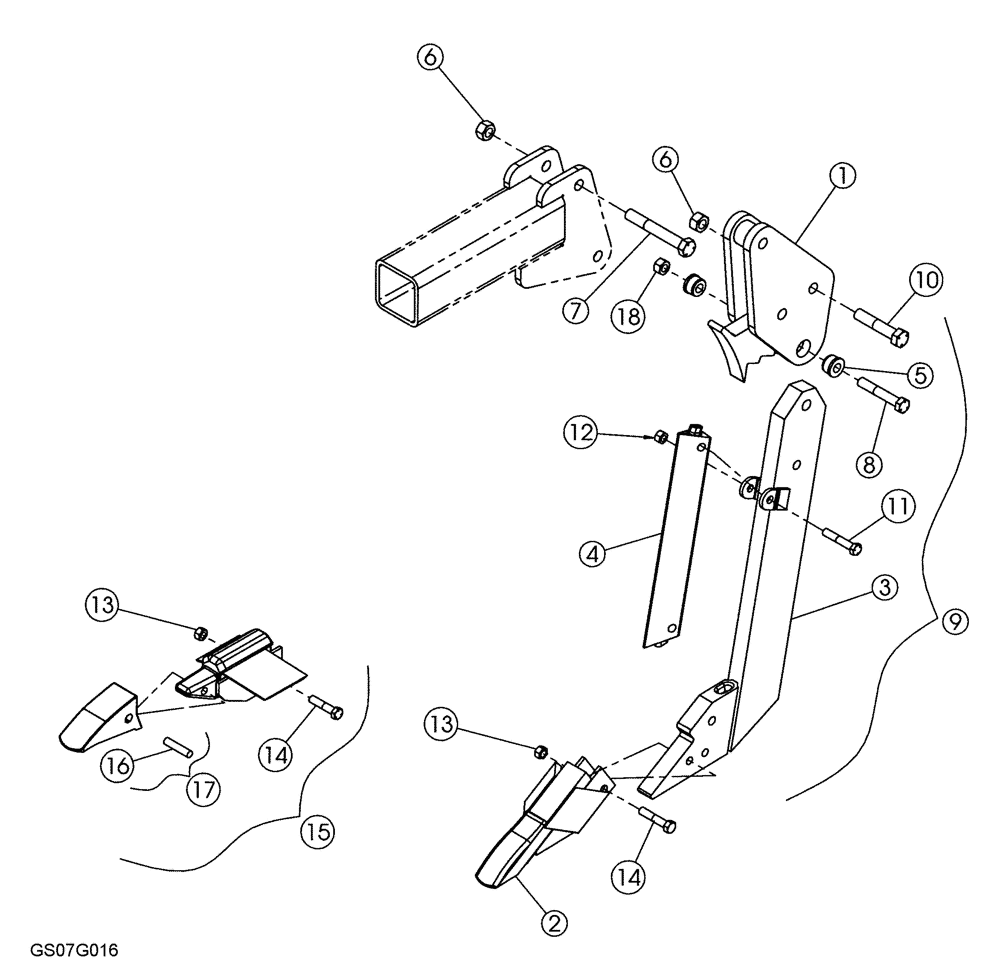

Запчасти Case IH 2500 ECOLO-TIL (75.200.06) - MRD SHANK 2008 AND AFTER UNITS (75) - SOIL PREPARATION

1

87581763

HOLDER

MRD Adapter

1шт.

2

87460075

POINT RIPPER SHANK

2 Parabolic

1шт.

Does Not Include Hardware

1шт.

2

87460069

POINT RIPPER SHANK

5 Parabolic Wing

1шт.

Does Not Include Hardware

1шт.

2

87460070

POINT RIPPER SHANK

7 Tiger Assembly

1шт.

Does Not Include Hardware

1шт.

3

87580746

SHANK

MRD Shank

1шт.

4

09581760

WEDGE

Shin

1шт.

5

44006510

BUSHING

5/8 Serrated

2шт.

6

425-1012

NUT,3/4"-10, G5

1шт.

7

16901205

BOLT

3/4" x 4-3/4", UNC, A325

3шт.

8

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

ZP

1шт.

9

87665537

SHANK

MRD, Include Ref. 3 - 4, 11 - 12

1шт.

10

16901215

BOLT

3/4" x 3-3/4", NC, A325

1шт.

11

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

ZP

1шт.

12

86992215

LOCK NUT,1/2"-13, GC

Stover

1шт.

13

425-108

NUT,1/2" - 13, Gr 5

3шт.

14

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

15

87460158

POINT RIPPER SHANK

7 Replacable Tip Assembly

1шт.

Does Not Include Hardware

1шт.

16

245466A1

RETAINER,Flexpin, Bucket Tooth

3/8, Flex

1шт.

17

87412311

TIP

Replacable, Include Ref. 16

1шт.

18

425-1010

NUT,5/8"-11, G5

1шт.
