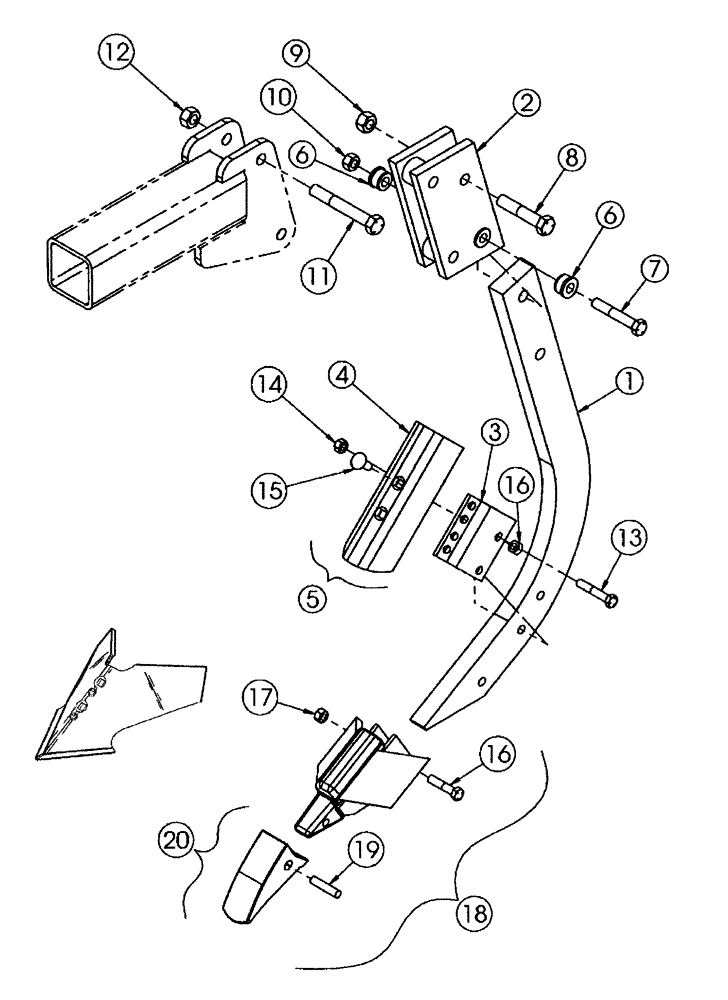

Запчасти Case IH 2500 ECOLO-TIL (75.200.05) - PARABOLIC SHANK (75) - SOIL PREPARATION

1

33020040

SHANK

2500 Rip Bed Only

1шт.

2

09651570

HOLDER

MRD And Parabolic

1шт.

3

09580750

HITCH BRACKET

Covering Attachment

1шт.

4

33310079

SHOVEL

4, Covering

1шт.

5

09580060

BRACKET

Parabolic Covering Attachment, Include Ref. 3 - 4 And Hardware

1шт.

6

44006510

BUSHING

5/8 Serrated

2шт.

7

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

NC

1шт.

8

16901215

BOLT

3/4 X 3-3/4, NC, A325

1шт.

9

425-1012

NUT,3/4"-10, G5

3шт.

10

425-1010

NUT,5/8"-11, G5

1шт.

11

16901205

BOLT

3/4 x 4-3/4, UNC, A325

2шт.

12

425-1012

NUT,3/4"-10, G5

3шт.

13

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

2шт.

14

425-108

NUT,1/2" - 13, Gr 5

3шт.

15

420-2720

PLOW BOLT,#3, 7/16" - 14 x 1 1/4", Gr 8

2шт.

16

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

17

425-108

NUT,1/2" - 13, Gr 5

3шт.

18

87460158

POINT RIPPER SHANK

7, Replacable Tip Assembly

1шт.

Does Not Include Hardware

1шт.

19

245466A1

RETAINER,Flexpin, Bucket Tooth

3/8, Flex

1шт.

20

87412311

TIP

Repacable,Include Ref. 19

1шт.

21

33310080

LANDSIDE

6 Wide Furrower

1шт.
