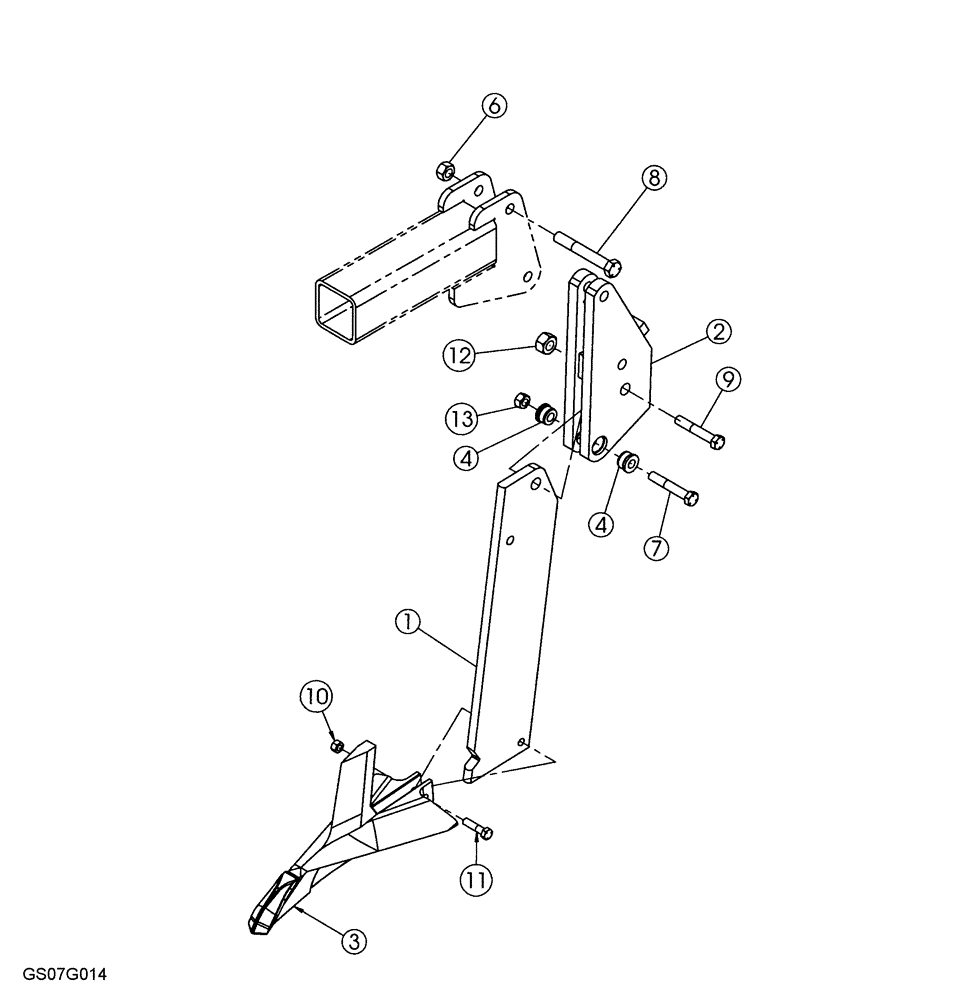

Запчасти Case IH 2500 ECOLO-TIL (75.200.04) - NO-TILL SHANK 2008 AND AFTER UNITS (75) - SOIL PREPARATION

1

87665693

SHANK

No-Till, Painted

1шт.

2

87539895

ADAPTER

No-Till Holder

1шт.

3

87388006

POINT RIPPER SHANK

No-Till Wing

1шт.

Does Not Include Hardware

1шт.

4

44006510

BUSHING

5/8, Serrated

2шт.

6

425-1012

NUT,3/4"-10, G5

3шт.

7

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

NC, ZP

1шт.

8

16901205

BOLT

3/4" X 4-3/4", UNC, A325

2шт.

9

16901425

BOLT

7/8" X 3-3/4", UNC, A325

1шт.

10

425-108

NUT,1/2" - 13, Gr 5

1шт.

11

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

12

425-1014

NUT,7/8"-9, G5

1шт.

13

425-1010

NUT,5/8"-11, G5

1шт.
