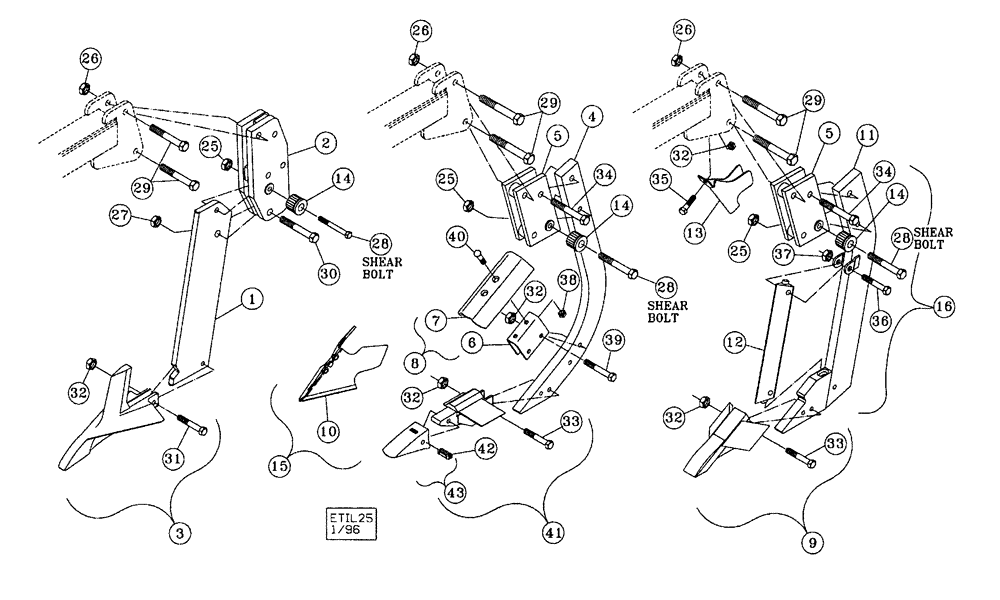

Запчасти Case IH 2500 ECOLO-TIL (75.200.03) - SHANKS 2007 AND PRIOR MODELS (75) - SOIL PREPARATION

1

33020046

SHANK

No-Til, Painted

1шт.

2

09651580

SPRING BOX

No-Til Holder, Includes Ref. 2 & 14

1шт.

3

87388006

POINT RIPPER SHANK

8, No-Til Wing

1шт.

Does Not Include Hardware

1шт.

4

33020040

SHANK

6-40, 2500 Rip Bed Only

1шт.

5

09651570

HOLDER

Holder, MRD And Parabolic

1шт.

6

09580750

HITCH BRACKET

Covering Attachment

1шт.

7

33310079

SHOVEL

4, Covering

1шт.

8

09580060

BRACKET

Parabolic Covering Attachment, Includes Ref. 6 - 7 And Hardware

1шт.

9

87460075

POINT RIPPER SHANK

2, Parabolic with Hardware

1шт.

Does Not Include Hardware

1шт.

9

87460069

POINT RIPPER SHANK

5 Parabolic Wing

1шт.

Does Not Include Hardware

1шт.

9

87460070

POINT RIPPER SHANK

7, Tiger Assembly

1шт.

Does Not Include Hardware

1шт.

10

33310080

LANDSIDE

6, Wide Furrower

1шт.

11

09581750

SHANK

MRD

1шт.

12

09581760

WEDGE

MRD Shin

1шт.

13

09651575

BRACKET

MRD Stalk

1шт.

14

44006510

BUSHING

5/8", Serrated

1шт.

15

09650060

PLOW

6, Covering Attachment, Includes Ref. 6 & 10

1шт.

16

09581705

SHANK

MRD, Includes Ref. 11 - 12, 37, & 39

1шт.

25

425-1010

NUT,5/8"-11, G5

1шт.

26

425-1012

NUT,3/4"-10, G5

3шт.

27

425-1014

NUT,7/8"-9, G5

1шт.

28

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

1шт.

29

16901205

BOLT

3/4" x 4-3/4", UNC, A325

2шт.

30

16901425

BOLT

7/8" x 3-3/4", UNC, A325

1шт.

31

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

32

425-108

NUT,1/2" - 13, Gr 5

3шт.

33

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

34

16901215

BOLT

3/4" x 3-3/4", NC, A325

1шт.

35

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

36

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1шт.

37

86992215

LOCK NUT,1/2"-13, GC

Stover

1шт.

38

425-107

NUT,7/16"-14, G5

2шт.

39

413-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

2шт.

40

420-2720

PLOW BOLT,#3, 7/16" - 14 x 1 1/4", Gr 8

2шт.

41

87460158

POINT RIPPER SHANK

7, Replacable Tip Point Assembly

1шт.

Does Not Include Hardware

1шт.

42

245466A1

RETAINER,Flexpin, Bucket Tooth

3/8", Flex

1шт.

43

87412311

TIP

Replacable, Includes Ref. 42

1шт.
