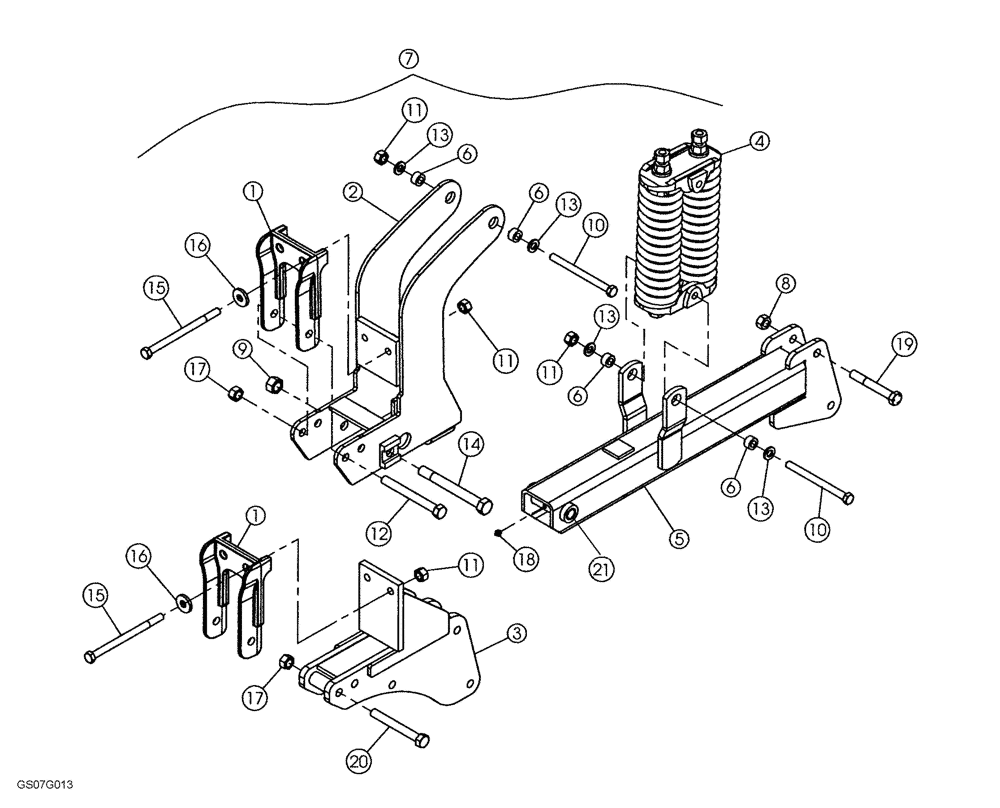

Запчасти Case IH 2500 ECOLO-TIL (75.200.02) - SHANK MOUNT ASSEMBLY 2008 AND AFTER UNITS (75) - SOIL PREPARATION

1

09651540

MOUNTING CLIP

1шт.

2

09651518

MOUNTING PARTS

Auto Reset

1шт.

3

87539821

HOUSING

Shear Bolt

1шт.

4

87443458

CASTING

Spring Assembly

1шт.

5

09651520

BEAM ASSY.

Auto Reset

1шт.

6

44006201

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

Heat Treated

4шт.

7

87443454

BRACKET

Auto Reset

1шт.

8

425-1012

NUT,3/4"-10, G5

2шт.

9

87681198

NUT,Hex, 7/8"-9, 0.45 high

7/8, NC, Stover

1шт.

10

16901025

CAPSCREW,Hex, 5/8" - 11 x 7 1/2", Spcl, Gr 5

5/8 x 7-1/2, NC, Hex., Gd 5

2шт.

11

85700693

NUT,5/8" - 11, Gr C

5шт.

12

16901226

SPECIAL BOLT

3/4 x 6-7/8

1шт.

13

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

Standard, ZP

4шт.

14

16901435

BOLT

7/8 X -3/4, NC, Hex., Gd 5

1шт.

15

280293

BOLT,Hex, 5/8" - 11 x 7", Gr 5

2шт.

16

495-81028

WASHER,21/32" x 1 1/2" x .240"

2шт.

17

280375

NUT,3/4"-10, GC

1шт.

18

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

19

413-1284

BOLT,Hex, 3/4" - 10 x 5-1/4", Gr 5

2шт.

20

16901217

BOLT

3/4 x 6, NC, Special, Hex.

1шт.

21

51200158

BUSHING,22.72mm ID x 29.08mm OD x 38.1mm L

1шт.
