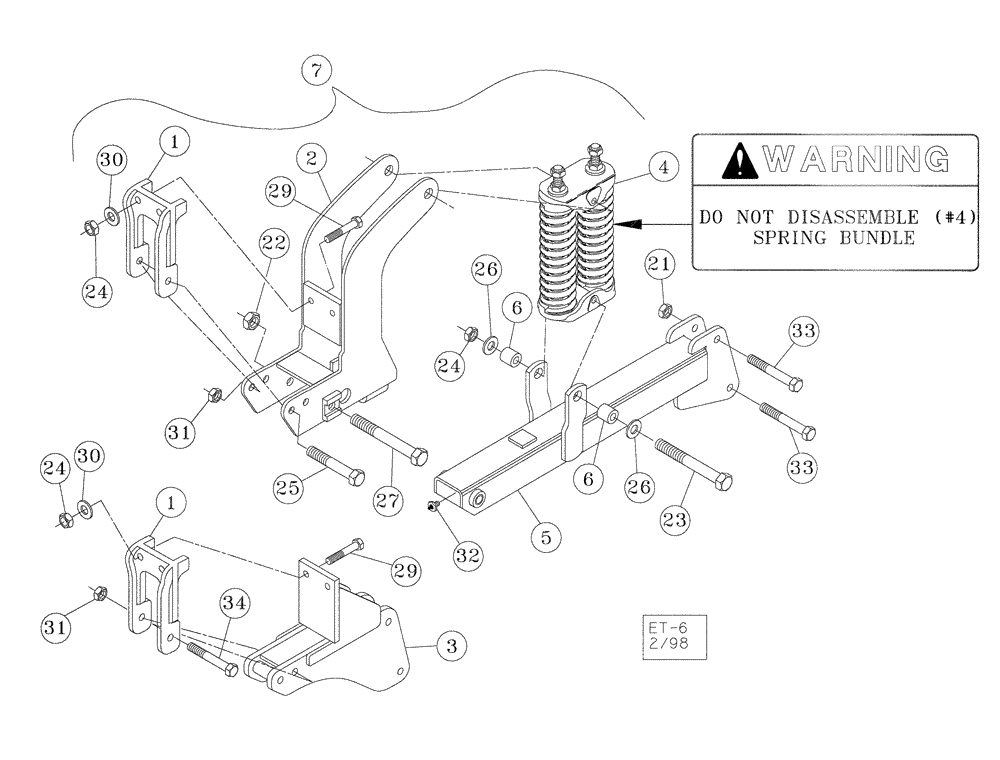

Запчасти Case IH 2500 ECOLO-TIL (75.200.01) - SHANK MOUNT ASSEMBLY 2007 AND PRIOR UNITS (75) - SOIL PREPARATION

1

09651540

MOUNTING CLIP

Quick

1шт.

2

09651518

MOUNTING PARTS

Auto Reset

1шт.

3

09651560

MOUNTING PARTS

Shear Bolt

1шт.

4

87443458

CASTING

Spring Assembly

1шт.

4

09651530

COIL SPRING

1шт.

5

09651520

BEAM ASSY.

Auto Reset

1шт.

6

44006201

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

Heat Treated

4шт.

7

87443454

BRACKET

Auto Reset H.T

1шт.

21

425-1012

NUT,3/4"-10, G5

Hex.

2шт.

21

14001205

NUT

2шт.

22

87681198

NUT,Hex, 7/8"-9, 0.45 high

7/8, NC, Stover

1шт.

22

14111401

LOCK NUT

7/8, NC, Stover

1шт.

23

16901025

CAPSCREW,Hex, 5/8" - 11 x 7 1/2", Spcl, Gr 5

5/8" x 7-1/2", NC, Hex., G5

2шт.

24

14111001

NUT

5/8", NC, Lock, Stover

5шт.

25

16901226

SPECIAL BOLT

3/4" x 6-7/8" Hex.

1шт.

26

17010001

WASHER

5/8", Standard, ZP

4шт.

27

16901435

BOLT

7/8" x 7-3/4", NC, Hex., G5

1шт.

29

16010285

BOLT

5/8" x 7, NC, Hex., G5

2шт.

30

495-81028

WASHER,21/32" x 1 1/2" x .240"

2шт.

31

280375

NUT,3/4"-10, GC

1шт.

32

15302005

FITTING

1/8", NPT, Grease Zerk

1шт.

33

326-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 8

2шт.

34

16901217

BOLT

3/4 x 6, NC, Special, Hex.

1шт.
