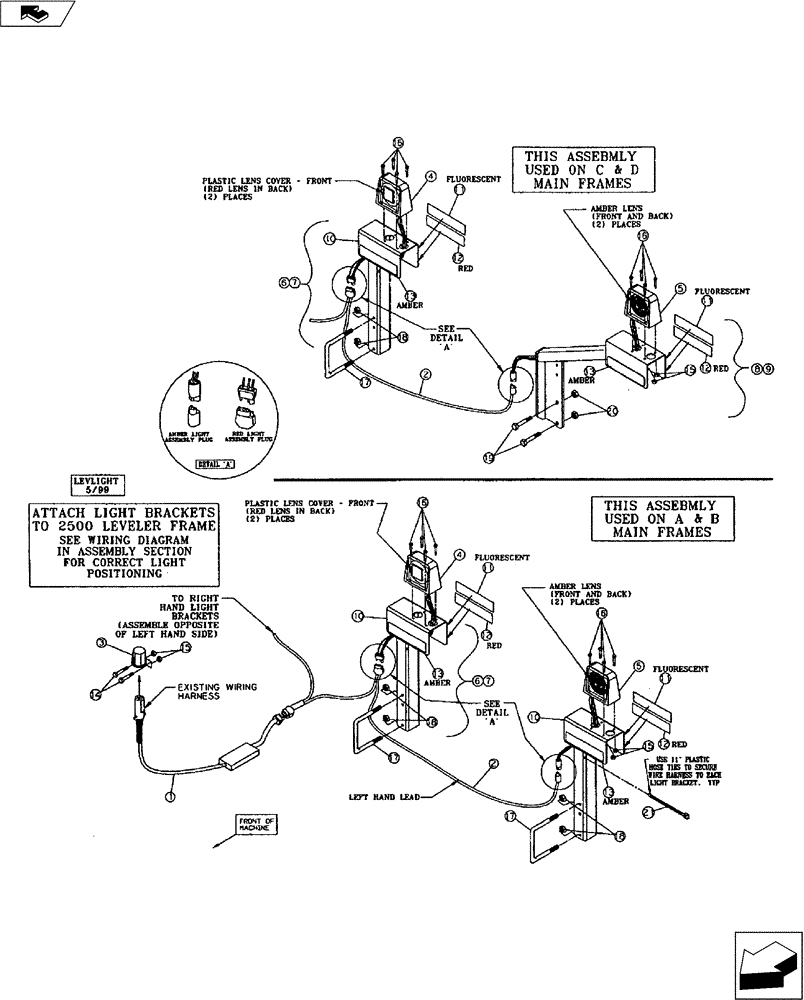

Запчасти Case IH 2500 ECOLO-TIL (55.404.02) - WARNING AND TAILLIGHT KIT - DISC LEVELER (55) - ELECTRICAL SYSTEMS

1

27602314

WIRE HARNESS

Front

1шт.

2

27602226

WIRE HARNESS

Rear

1шт.

3

27601214

HOLDER

Plug

1шт.

4

27602202

LIGHT ASSY.

Red

2шт.

5

27602201

LIGHT ASSY.

Amber

2шт.

6

27602425

U-BRACKET

Light, RH, A And B Frames, Inc. 10 - 13, Accessory

2шт.

6

27602425

U-BRACKET

Light, RH, C And D Frames, Inc. 11 - 13

2шт.

7

27602420

U-BRACKET

Light, LH, A And B Frames, Inc. 11 - 13, Accessory

2шт.

7

27602420

U-BRACKET

Light, LH, C And D Frames, Inc. 11 - 13

2шт.

8

09967590

BRACKET

Light, RH, C And D Frame, Inc. 11 - 13, Wing Fold Only

1шт.

9

09967591

BRACKET

Light, LH, C And D Frame, Inc. 11 - 13, Wing Fold Only

1шт.

10

27602400

SUPPORT

Light Bracket, Long, A And B Frame Accessory

4шт.

10

27602400

SUPPORT

Light Bracket, Long, C And D Frame

2шт.

11

311865A1

REFLECTOR

Flourescent Strip

4шт.

12

311863A1

REFLECTOR

Red Strip

4шт.

14

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

13

311864A1

REFLECTOR

Amber Strip

4шт.

15

86992211

NUT

1/4, Stover

18шт.

16

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

16шт.

17

16309101

U-BOLT,3/8" - 16, Square, 4" W x 6" L

BOLT "U" 3/8" x 4" x 6", A & B, Accessory

4шт.

17

16309101

U-BOLT,3/8" - 16, Square, 4" W x 6" L

BOLT "U" 3/8" x 4" x 6", C & D Frame

2шт.

18

231-4246

LOCK NUT,3/8"-16, GB

A & B Frame Accessory

4шт.

18

231-4246

LOCK NUT,3/8"-16, GB

C & D Frame

2шт.

19

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

5/8" x 1-3/4", Hex, C And D Frame

4шт.

20

231-42410

LOCK NUT,5/8"-11, GB

4шт.

21

30007000

CABLE TIE,.350" x 20.9"

CABLE STRAP 20"

1шт.

22

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP 30"

1шт.

23

27601215

LENS

Amber Replacement (Not Shown)

1шт.

24

27601216

LENS

Red Replacement (Not Shown)

1шт.
