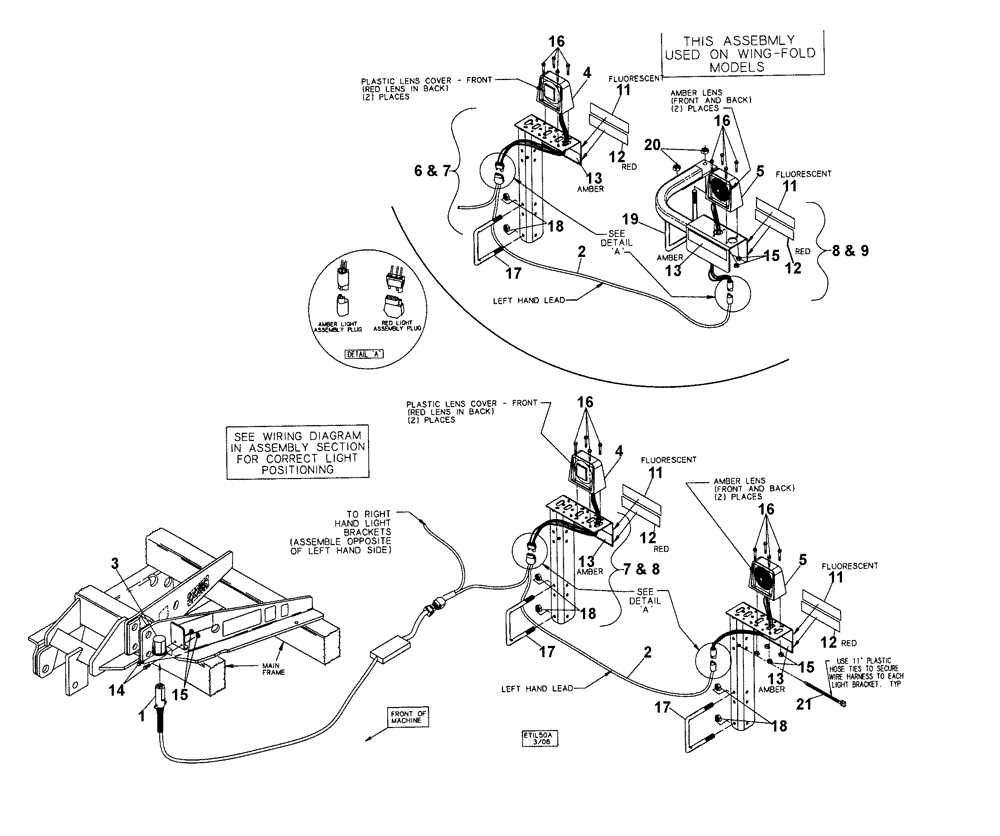

Запчасти Case IH 2500 ECOLO-TIL (55.404.01) - WARNING AND TAILLIGHT KIT (55) - ELECTRICAL SYSTEMS

1

27602314

WIRE HARNESS

Front

1шт.

2

27602226

WIRE HARNESS

Rear

1шт.

2

27602229

WIRE HARNESS

Rear, Lift Assist

1шт.

3

27601214

HOLDER

Plug Storage

1шт.

4

27602202

LIGHT ASSY.

Red

2шт.

5

27602201

LIGHT ASSY.

Amber

2шт.

6

87328897

BRACKET

RH, Lift Assist, Includes Ref. 11 - 13

2шт.

6

87328897

BRACKET

Wing Fold, Includes Ref. 11 - 13

1шт.

6

27602425

U-BRACKET

RH (A & B), Light, Assembly, Includes Ref. 10, 11, 12, & 13

2шт.

6

27602425

U-BRACKET

RH (A & B), Light, Assembly, Includes Ref. 10, 11, 12, & 13

1шт.

7

87328898

BRACKET

LH, Lift Assist, Includes Ref. 11 - 13

2шт.

7

87328898

BRACKET

LH, Wing Fold, Incudes Ref. 11 - 13

1шт.

7

27602420

U-BRACKET

LH (A & B), Light, Assembly, Includes Ref. 10, 11, 12 & 13

2шт.

7

27602420

U-BRACKET

LH (A & B), Light, Assembly, Includes Ref. 10, 11, 12 & 13

1шт.

8

09661350

SUPPORT

Gooseneck, Assy., RH, Includes Ref. 11 - 13, Wing Fold Only

1шт.

9

09661360

SUPPORT

Gooseneck, Assy., LH, Includes Ref. 11 - 13, Wing Fold Only

1шт.

11

311864A1

REFLECTOR

Yellow, Amber Strip

4шт.

11

18534367

ADHESIVE

Yellow, Retroreflective Strip

4шт.

12

311863A1

REFLECTOR

Red

4шт.

12

18534363

ADHESIVE STRIP

Red, Retroreflective

4шт.

13

311865A1

REFLECTOR

Flourescent

4шт.

13

18534304

DECAL

Flourescent Strip

4шт.

14

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

14

NSS

NOT SOLD SEPARAT

1/4" X 3/4", Hex., Bolt

2шт.

15

86992211

NUT

1/4"

18шт.

15

NSS

NOT SOLD SEPARAT

1/4", Lock

18шт.

16

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

16шт.

16

NSS

NOT SOLD SEPARAT

1/4" x 1-1/4", Hex., Bolt

16шт.

17

16309101

U-BOLT,3/8" - 16, Square, 4" W x 6" L

BOLT "U" 3/8" x 4" x 6" (A & B Acc.)

4шт.

17

16309110

U-BOLT

3/8" x 6" x 6", Wing Fold Only (C & D Frame)

2шт.

18

86992213

NUT

3/8" (A & B Frame Acc.)

8шт.

18

86992213

NUT

3/8" Wing Fold Only (C & D Frame)

4шт.

18

NSS

NOT SOLD SEPARAT

3/8", Lock Nut

8шт.

18

NSS

NOT SOLD SEPARAT

3/8", Lock Nut, Wing Fold Only

4шт.

19

87427163

U-BOLT

BOLT "U" 5/8" x 6" x 7-1/2", Wing Fold Only

4шт.

19

16310028

SPECIAL BOLT

5/8" x 6" x 7-1/2", Wing Fold Only

4шт.

20

14111001

NUT

5/8", Lock, Wing Fold Only

4шт.

20

85700693

NUT,5/8" - 11, Gr C

Wing Fold Only

4шт.

21

30007000

CABLE TIE,.350" x 20.9"

CABLE STRAP 20" Plastic Hose Tie

1шт.

21

NSS

NOT SOLD SEPARAT

11" Hose Tie

1шт.

22

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP Pastic Hose Tie

1шт.

22

NSS

NOT SOLD SEPARAT

28" Hose Tie

1шт.

23

27601215

LENS

Amber Replacement

1шт.

24

27601216

LENS

Red Replacement

1шт.

25

09662170

SUPPORT

Light Bracket, Lift Assist

2шт.

28

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

26

87427168

U-BOLT

5/8" x 6" x 5-1/2", 30" Spacing

1шт.

26

16310030

U-BOLT

BOLT "U" 5/8" x 6" x 5-1/2", 30" Spacing

1шт.

27

413-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

36", 38", & 40"

1шт.

29

85700693

NUT,5/8" - 11, Gr C

4шт.

29

232-41110

NUT,5/8"-11, GC

Stover

4шт.

30

27602440

SUPPORT

LH, Non Fold Units

2шт.

31

27602445

SUPPORT

RH, Non Fold Units

2шт.
