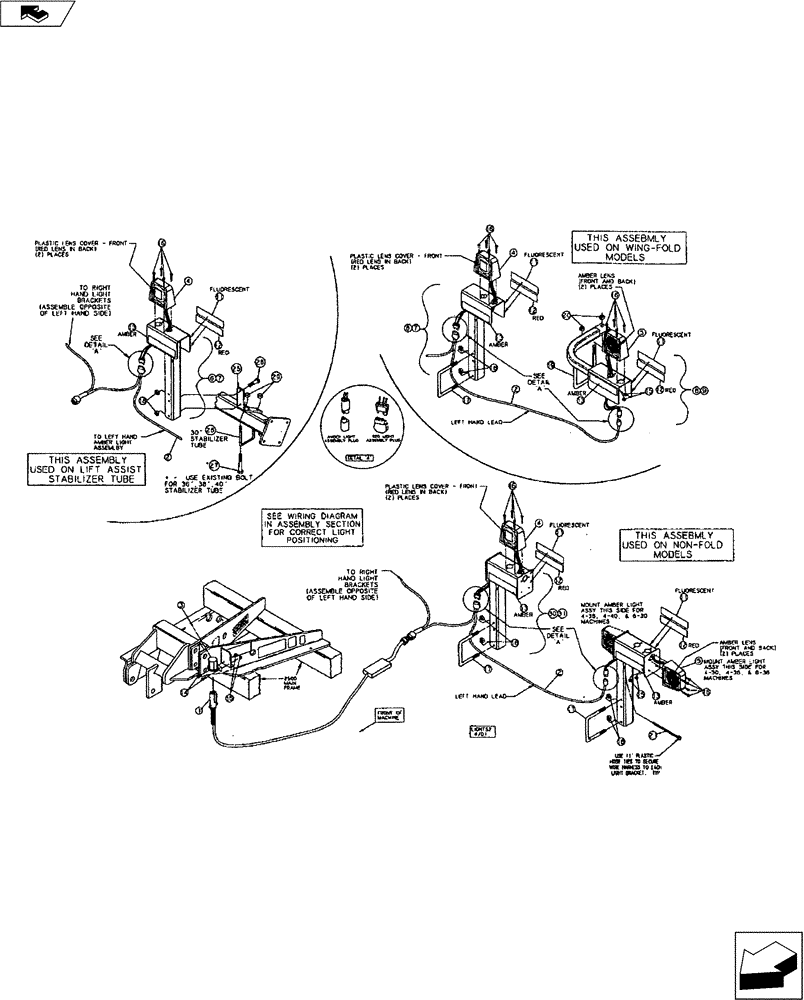

Запчасти Case IH 2500 ECOLO-TIL (55.404.01[02]) - WARNING AND TAILLIGHT KIT W/CHANNEL BRACKETS (55) - ELECTRICAL SYSTEMS

1

27602314

WIRE HARNESS

Front

1шт.

2

27602226

WIRE HARNESS

Rear

1шт.

2

27602229

WIRE HARNESS

Rear, Lift-Assist

1шт.

3

27601214

HOLDER

Plug

1шт.

4

27602202

LIGHT ASSY.

Red

2шт.

5

27602201

LIGHT ASSY.

Amber

2шт.

6

27602425

U-BRACKET

Light Assembly, RH, Includes Ref 11- 13

2шт.

6

27602425

U-BRACKET

Light Assembly, RH, Wing Fold Unit, Includes 11-13

1шт.

7

27602420

U-BRACKET

Light Assembly ,LH, Includes Ref 11- 13

2шт.

7

27602420

U-BRACKET

Light Assembly, LH, Wing Fold Unit, Includes Ref 11- 13

1шт.

8

09661350

SUPPORT

Gooseneck Bracket Assembly RH, Includes Ref 11 - 13, Wing Fold Only

1шт.

9

09661360

SUPPORT

Gooseneck Bracket Assembly LH, Includes Ref 11- 13, Wing Fold Only

1шт.

11

311864A1

REFLECTOR

Yellow Strip

4шт.

12

311863A1

REFLECTOR

Red Strip

4шт.

13

311865A1

REFLECTOR

Fluorescent Strip

4шт.

14

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

15

86992211

NUT

1/4"

18шт.

16

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

16шт.

17

16309101

U-BOLT,3/8" - 16, Square, 4" W x 6" L

BOLT "U" 3/8" x 4" x 6"

4шт.

17

16309110

U-BOLT

3/8" x 6" x 6", Wing Fold Units

2шт.

18

86992213

NUT

3/8"

8шт.

18

86992213

NUT

3/8", Wing Fold Units

4шт.

19

16310028

SPECIAL BOLT

5/8" x 6" x 7-1/2", Wing Fold Units Only

4шт.

20

86992216

NUT

5/8", Wing Fold Units Only

4шт.

21

30007000

CABLE TIE,.350" x 20.9"

CABLE STRAP 20"

1шт.

22

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP 30"

1шт.

23

27601215

LENS

Replacement - Amber

1шт.

24

27601216

LENS

Replacement - Red

1шт.

25

09662170

SUPPORT

Light Bracket, Lift-Assist Mount

2шт.

26

87427168

U-BOLT

5/8" x 6" x 5-1/2" , 30" Spacing

1шт.

27

413-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

36" 38" & 40"

1шт.

28

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

29

86992216

NUT

5/8" Stover

4шт.
