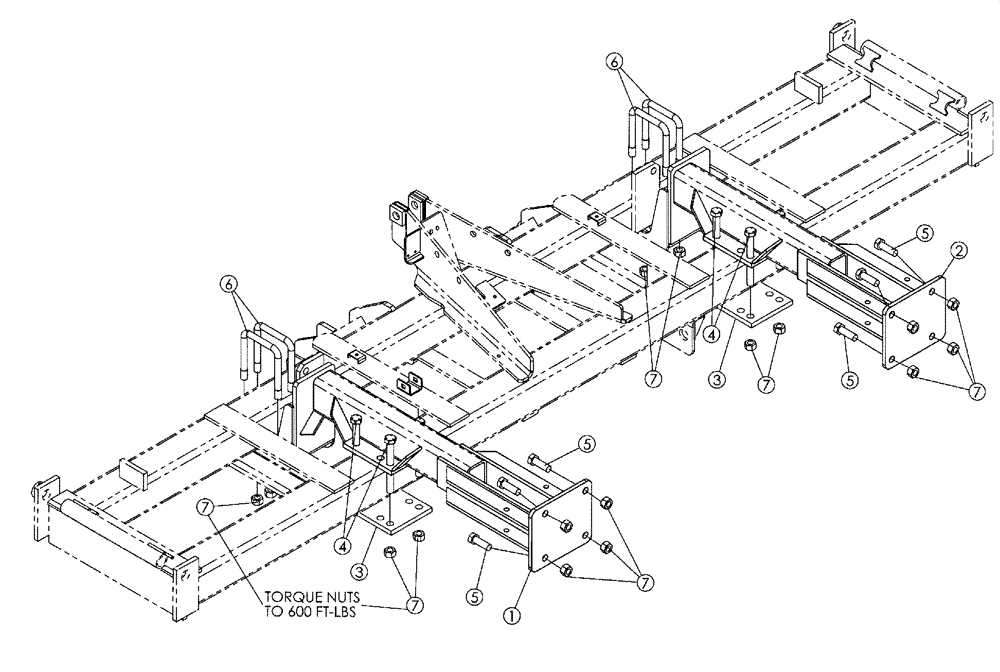

Запчасти Case IH 2500 ECOLO-TIL (44.100.04) - LIFT-ASSIST WHEEL MOUNT PARTS W/LISTERS (44) - WHEELS

1

09662285

BAR ASSY.

Lift Assist Mount, LH, Rigid Shank

1шт.

1

09662290

BRACKET

Lift Assist Mount, LH, Auto Reset

1шт.

2

09662280

BRACKET

Lift Assist Mount, RH, Rigid Shank

1шт.

2

09662290

BRACKET

Lift Assist Mount, RH, Auto Reset

1шт.

3

09662240

MOUNTING PARTS

Pad

2шт.

4

326-16144

BOLT,Hex, 1" - 8 x 9", Gr 8

NC

8шт.

5

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

NC

8шт.

6

16316165

U-BOLT

1" x 4", Gd. 5

4шт.

6

16316245

U-BOLT

1" x 6", Gd. 5

4шт.

7

86992219

LOCK NUT

1, Stover

24шт.
