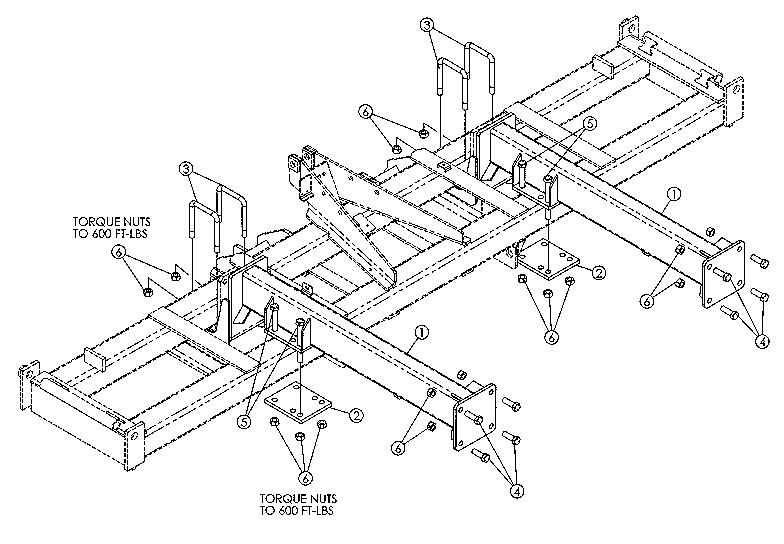

Запчасти Case IH 2500 ECOLO-TIL (44.100.03) - LIFT ASSIST WHEEL MOUNT PARTS (44) - WHEELS

1

09662270

BRACKET

Lift Assist Mount

2шт.

2

09662240

MOUNTING PARTS

Pad

2шт.

3

16316165

U-BOLT

1 x 4 G5

4шт.

3

16316245

U-BOLT

1 x 6 G5

4шт.

4

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

NC ZP

8шт.

5

326-16144

BOLT,Hex, 1" - 8 x 9", Gr 8

ZP

8шт.

6

86992219

LOCK NUT

1", Stover

24шт.
