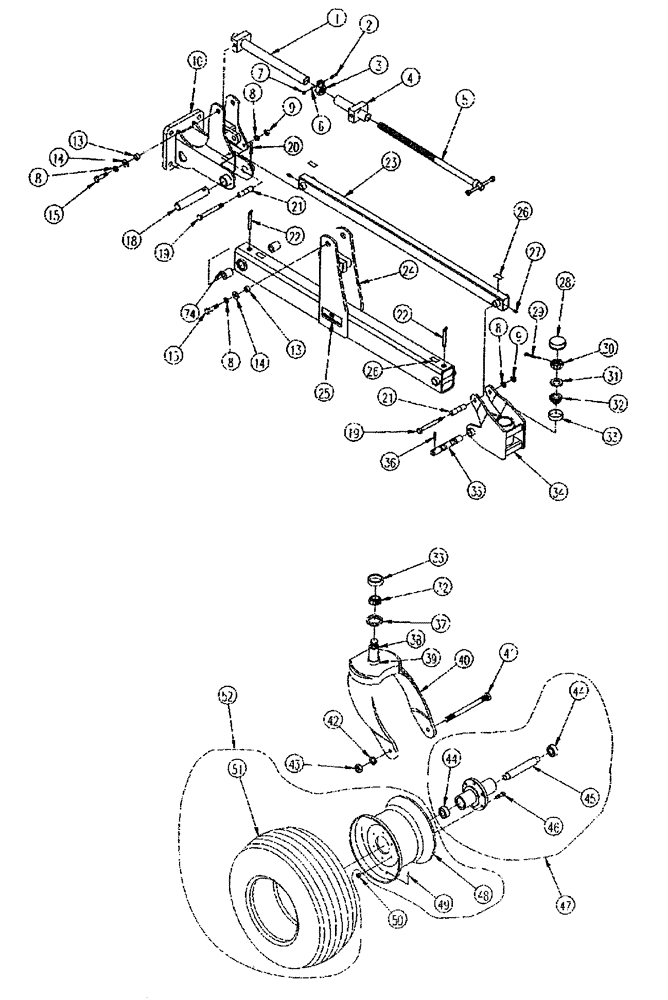

Запчасти Case IH 2500 ECOLO-TIL (44.100.02) - LIFT ASSIST WHEEL ASSEMBLY (44) - WHEELS

1

430050A1

ADJUSTMENT SCREW,3/4" x 3", Gr 8

Housing

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

NC

1шт.

3

430051A1

LOCK NUT

3/8", with Tabs

1шт.

4

430052A1

SLIDER

Adjusting Screw

1шт.

5

374844A1

ADJUSTMENT SCREW,1 1/4" x 32"

Adjusting Slide

1шт.

6

492-11038

LOCK WASHER,3/8"

1шт.

7

425-106

NUT,3/8"-16, Cl 5

Lock

1шт.

8

492-11075

LOCK WASHER,3/4"

6шт.

9

425-1012

NUT,3/4"-10, G5

2шт.

10

430053A1

MOUNTING PARTS

Bracket, Narrow, 23" Long

1шт.

13

430054A1

BUSHING

1-1/4" OD x 3/4" ID x 5/8"

4шт.

14

495-21081

WASHER,3/4"

Flat

4шт.

15

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

NC

4шт.

18

430055A1

PIN

Flat

1шт.

19

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

NC

2шт.

20

38-33240

PIN,1/2" x 2 1/2", Coiled

Roll

1шт.

21

430056A1

BUSHING

1" OD x 7.55" ID x 3-15/16"

2шт.

22

430057A1

FITTING

1/8", Grease, 45 Degree with 3/4" Extended Stem

2шт.

23

430058A1

TUBE

63" Long, Connector

1шт.

24

430059A1

FRAME

4" x 6" x 64" Long

1шт.

25

430061A1

DECAL

Trademark

2шт.

26

369064A1

DECAL

Grease Daily

4шт.

27

219-8

LUBE NIPPLE,1/4" - 28 NPTF

Straight Grease Fitting

2шт.

28

430062A1

COVER

3/360" OD, Dust Cap

1шт.

29

432-1640

COTTER PIN,1/4" x 2 1/2"

1шт.

30

425-128

SLOTTED NUT,1/2"-13, G5

UNF, Castle

1шт.

31

374871A1

WASHER

2-11/16" OD x 1-1/2" ID x 1/4"

1шт.

32

364463C91

BEARING ASSY,2.0005" ID x 3.2283" OD x 0.875"

2" Bore, LM104949

2шт.

33

430063A1

BEARING CUP

Race, LM104911

2шт.

34

430064A1

BEARING HOUSING

Bearing Housing Tail Piece, Includes. 33

1шт.

35

430065A1

PIN

1-1/4" x 8-3/4"

1шт.

36

430066A1

PIN

3/8" x 2", Type A Groove

1шт.

37

374880A1

SEAL

3/374" OD x 2.5" ID, CR24954

1шт.

38

430067A1

SPINDLE

Replacement Yoke

1шт.

39

430068A1

BUSHING

2-1/2" OD x ID x 3/4"

1шт.

40

430069A1

YOKE

Inc. 30 And 38 - 39

1шт.

41

13-16200

BOLT,Hex, 1" - 8 x 12-1/2", Gr 5

1шт.

42

492-11100

LOCK WASHER,1"

1шт.

43

425-1016

NUT,1"-8, G5

1шт.

44

586649R92

BEARING, ROLLER, CYL,31.75mm ID x 62mm OD x 18mm W

1-1/4" Bore, RA103RR2

2шт.

45

374884A1

SPACER

1-1/2" OD x 1 ID x 10-1/8"

1шт.

46

430070A1

BOLT

1/2" x 1-5/8", UNF, Wheel

6шт.

47

430071A1

BEARING ASSY

with Bearing Assembly, Includes Ref. 44 - 46 & 50

1шт.

48

10108154

WHEEL

15" x 8", 6-Bolt, White

1шт.

49

11900001

VALVE STEM

3/4", with Cap

1шт.

50

430073A1

WHEEL NUT

1/2", UNF, Wheel

6шт.

51

11009159

TYRE/TIRE

9.5L x 15", 6 Ply

1шт.

52

10008256

LAND WHEEL

9.5L x 15", Tire & Assy, Inc. 48 - 49 & 51

1шт.

74

356913A1

BUSHING

2.125" OD x 1.754" ID x 2"

2шт.
