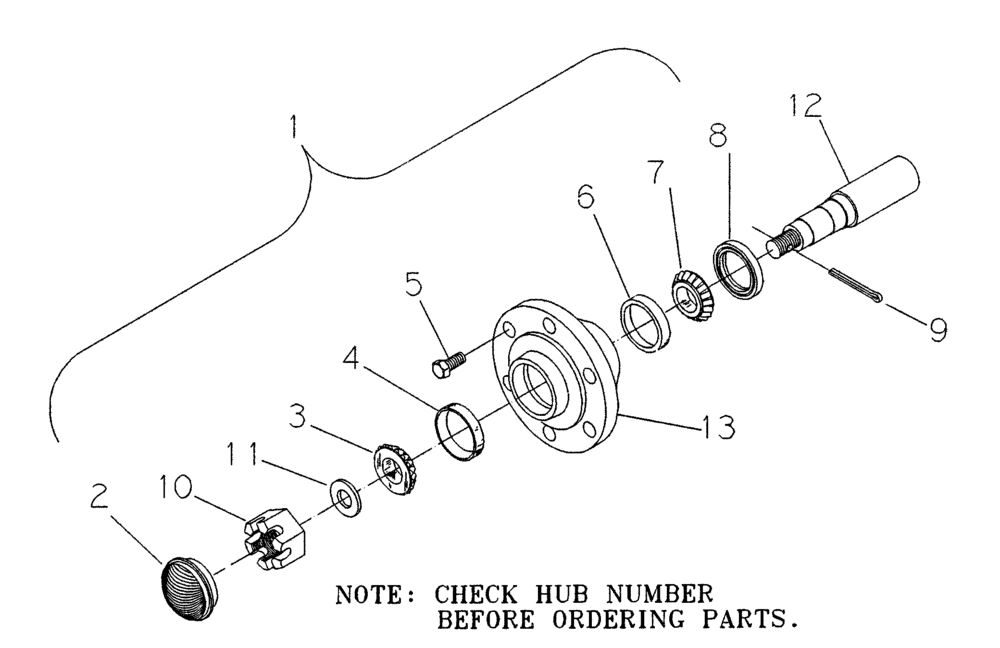

Запчасти Case IH 2500 ECOLO-TIL (44.100.01) - HUB AND SPINDLE ASSEMBLY (44) - WHEELS

1

28163311

HUB ASSY.

633 Coulter Blade, 4-Bolt With Flat Head Bolts, Includes Ref. 2 - 8

1шт.

1

28171000

HUB ASSY.

710 Screw Adjust Gauge Wheel, 6-Bolt, Includes Ref. 2 - 8

1шт.

2

28463300

HUB CAP

Coulter

1шт.

2

28477700

HUB CAP

Gauge Wheel

1шт.

3

651815R91

BEARING ASSY,7.508" ID x 17.82" OD x 6"

.75" Bore,Timken LM11949, Coulter Hub

1шт.

3

651815R91GV

BEARING CONE

Value, Cone Bearing

1шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25" Bore,Timken LM67048, Gauge Wheel

1шт.

4

651814R1

BEARING CUP

1.78" OD, Timken LM11910, Coulter Hub

1шт.

4

651817R1

BEARING CUP

2.33" OD, Timken LM67010, Gauge Wheel

1шт.

4

651817R1GV

BEARING CUP

Value, Bearing Cup

1шт.

5

414-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

NF, Coulter Hub

4шт.

5

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

1/2" x 1", NF, Hex., Gd. 5, Gauge Wheel

6шт.

6

651817R1

BEARING CUP

2.33" OD, Timken LM67010, Coulter Hub

1шт.

6

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

2.56" OD, Timken LM48510, Gauge Wheel

1шт.

6

21882560

BEARING, CUP

2.56" OD, Timken LM48510, Gauge Wheel

1шт.

7

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

Bore 1.25", Timken LM67048, Coulter Hub

1шт.

7

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

Bore 1.38", Timken LM48548, Gauge Wheel

1шт.

8

126621C1

SEAL

1.50" ID x 2.33" OD, CR1497, Coulter Hub

1шт.

8

614410R91

SEAL

2.63" OD x 1.63" ID, CR16322, Gauge Wheel

1шт.

9

432-1024

COTTER PIN,5/32" x 1 1/2"

Coulter And Gauge Wheel

1шт.

10

425-1312

SLOTTED NUT,3/4"-16, G5

NF, Coulter Hub

1шт.

10

425-1314

SLOTTED NUT,7/8"-14, G5

Gauge Wheel

1шт.

11

87716935

WASHER,22.6mm ID x 44.5mm OD x 6.4mm Thk

Gauge Wheels

2шт.

11

17413001

WASHER

3/4", Special Heavy, Coulter Hub

1шт.

12

28363331

SPINDLE

Coulter Hub

1шт.

12

28371001

SPINDLE

Gauge Wheel

1шт.

13

28270900

HUB ASSY.

709 with Cups, Gauge Wheel

1шт.

13

28263340

HUB

633 with Cups, Coulter

1шт.

14

28063331

HUB ASSY.

633 with Spindle, Coulter

1шт.

14

28071001

HUB ASSY.

710 with Spindle, Gauge Wheel

1шт.
