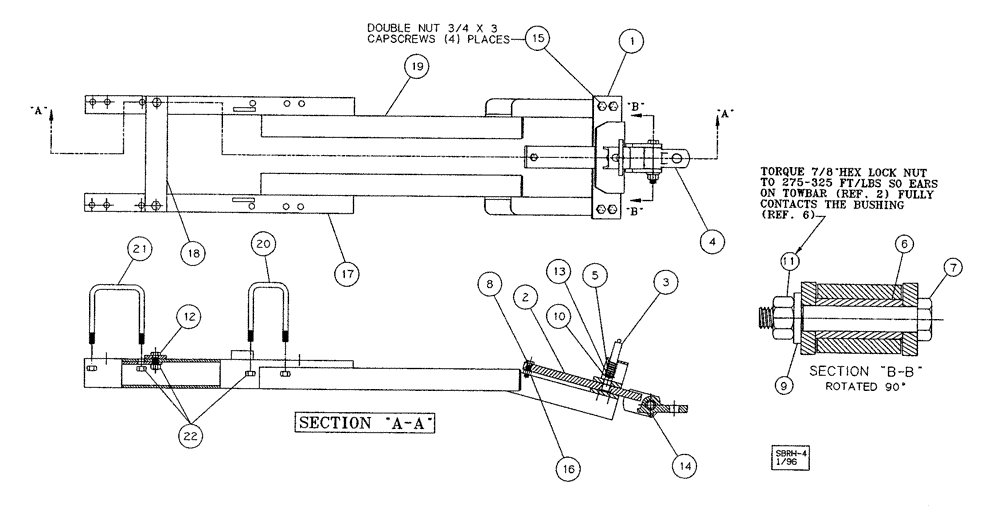

Запчасти Case IH 2500 ECOLO-TIL (39.110.01) - SHEAR BOLT REAR HITCH (39) - FRAMES AND BALLASTING

1

09666310

HITCH

Rear Weld

1шт.

2

04667200

BAR ASSY.

Tow Weld

1шт.

3

14816450

SPECIAL PIN

1" OD

1шт.

4

20092085

CLEVIS

Single

1шт.

5

24111201

SPRING

Compression

1шт.

6

44009370

SPACER

Bushing

1шт.

7

16901420

SPECIAL BOLT

7/8" x 5-1/2" NC A325

1шт.

8

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

NC

1шт.

9

17414012

WASHER,23.83mm ID x 44.45mm OD x 6.45mm Thk

7/8" ID, Thick

1шт.

10

17616020

WASHER

1" Machine Bushing, 14 Ga. ZP

1шт.

11

87681198

NUT,Hex, 7/8"-9, 0.45 high

7/8" NC, Stover Lock

1шт.

12

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

NC Z.P.

1шт.

13

438-11624

ROLL PIN,6.35mm OD x 38.1mm L

1шт.

14

219-86

LUBE NIPPLE,1/8" NPTF

NPT Self Tapping Zerk

1шт.

15

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

NC Z.P.

4шт.

16

425-1010

NUT,5/8"-11, G5

NC Hex. Z.P.

1шт.

17

09666100

BAR ASSY.

LH Weld

1шт.

18

09666180

BAR ASSY.

Strap

1шт.

19

09666200

BAR ASSY.

RH Weld

1шт.

20

87427182

U-BOLT

BOLT "U" 3/4" x 4" x 7-1/2", NC

4шт.

21

87427188

U-BOLT

BOLT "U" 3/4" x 6"x 7-1/2", NC

4шт.

22

425-1012

NUT,3/4"-10, G5

NC Hex.

18шт.
