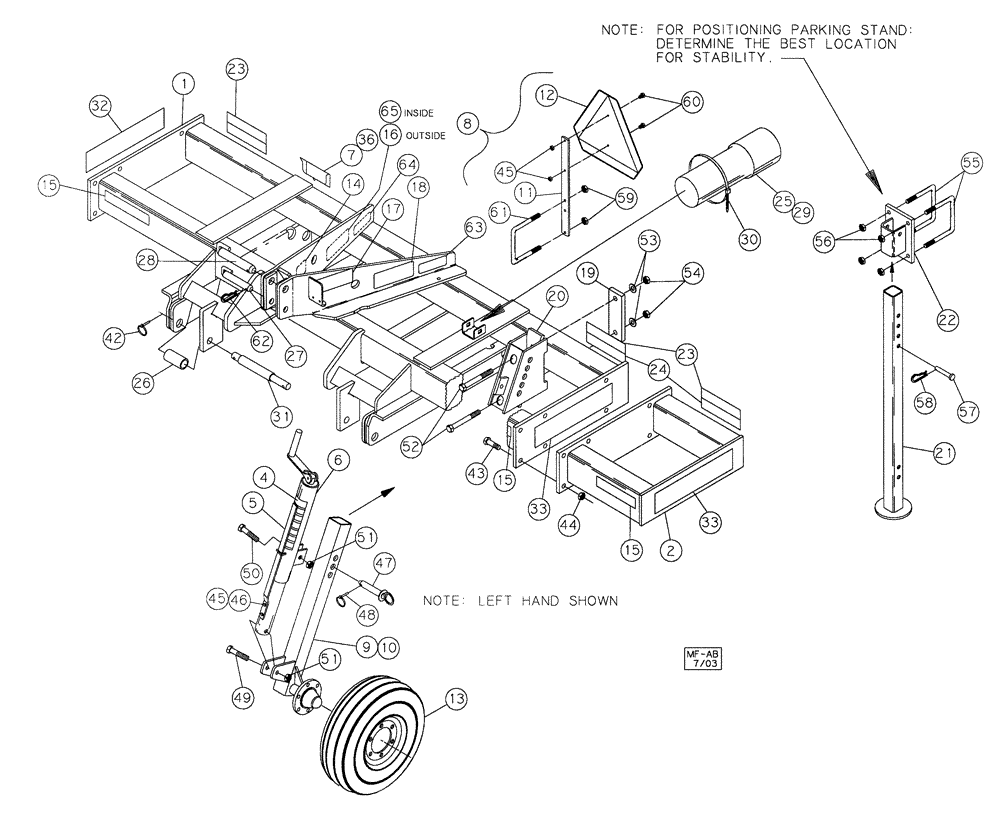

Запчасти Case IH 2500 ECOLO-TIL (39.100.03) - A AND B MAIN FRAME BOLT ON WINGS - ECOLO-BED (39) - FRAMES AND BALLASTING
№
Артикул
Название
Примечание
Количество
1
09662500B
FRAME ASSY
Main, A, 99", Blue
1шт.
1
09662510B
FRAME ASSY
Main, B, 135", Blue
1шт.
2
09661600B
TUBE ASSY.
Wing Weld, 17", LH
1шт.
2
09661700B
TUBE ASSY.
Wing Weld, 17", RH
1шт.
2
09661610B
TUBE ASSY.
Wing Weld, 27", LH
1шт.
2
09661710B
TUBE ASSY.
Wing Weld, 27", RH
1шт.
4
18534292
DECAL
Depth Indicator
2шт.
5
09661286
INDICATOR STRIP
2шт.
6
32253100
JACK ASSY.
5000
2шт.
8
18584100
PRODUCT GRAPHIC
SMV, 2500
1шт.
9
09661280
SPINDLE
RH, Facing Front Or LH Facing Back
1шт.
10
09661290
SPINDLE
LH, Facing Front Or RH Facing Back, LH Front Shown
1шт.
11
06000099
BRACE
SMV
1шт.
12
311860A1
EMBLEM
SMV, Black
1шт.
13
10008160
WHEEL ASSY.
20.5 x 8, 6-Bolt, Silver
2шт.
14
NSS
NOT SOLD SEPARAT
Serial Number Plat
1шт.
15
311864A1
REFLECTOR
Amber
4шт.
16
18534282
WARNING DECAL
Warning
1шт.
17
18534362
DANGER DECAL
Warning
1шт.
18
18534361
DANGER DECAL
Warning
1шт.
19
09576610
LINKAGE
Flat
2шт.
20
09661270
BRACKET
Gauge Wheel Mounting
2шт.
21
09661250
STAND
Parking
1шт.
22
09661260
STAND
Parking
1шт.
23
311865A1
REFLECTOR
Flourscent
4шт.
24
311863A1
REFLECTOR
Red
4шт.
25
30026030
TUBE
Manual
1шт.
26
02305000
SPACER
Catagory 3, Hitch Pin
2шт.
27
14816500
SPECIAL PIN
1" Dia. Clevis, Coated
1шт.
28
14820364
SPECIAL PIN
1-1/4" Dia., Coated
1шт.
30
214-1452
HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm
1шт.
31
14892370
SPECIAL PIN,36.52mm OD x 382.52mm L
Combination 3 Point, Coated
1шт.
32
18535035
DECAL
2500, RH
1шт.
33
18535036
DECAL
2500, LH
1шт.
36
87563598
DECAL
Case IH
2шт.
42
A33509
PIN,11.18mm OD
Klik
2шт.
43
413-1240
BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5
12шт.
44
425-1012
NUT,3/4"-10, G5
12шт.
45
86992211
NUT
1/4, NC, Hex
2шт.
46
413-444
BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5
2шт.
47
14816348
PIN,25.4mm OD x 133.35mm L
2шт.
48
A30338
PIN
1/4" Dia. x 1-3/4", Klik
2шт.
49
413-1056
BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5
2шт.
50
413-1032
BOLT,Hex, 5/8" - 11 x 2", Gr 5
2шт.
51
85700693
NUT,5/8" - 11, Gr C
5/8", NC
8шт.
52
413-12104
BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5
4шт.
53
492-11075
LOCK WASHER,3/4"
4шт.
54
425-1012
NUT,3/4"-10, G5
4шт.
55
87427168
U-BOLT
5/8" x 6" x 5-1/2"
2шт.
56
425-1010
NUT,5/8"-11, G5
4шт.
57
14810270
CLEVIS
5/8" x 3-1/2", EL, Pin
1шт.
58
14720411
COTTER PIN
PIN, COTTER 1/8" x 2", Hair, ZP
1шт.
59
86992213
NUT
3/8, NC, Stover
2шт.
60
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
2шт.
61
16309101
U-BOLT,3/8" - 16, Square, 4" W x 6" L
BOLT "U" 3/8" x 6" x 4"
1шт.
62
1978738C1
HAIR PIN COTTER
3/16" x 3"
2шт.
63
18534387
CAUTION DECAL
Caution
1шт.
64
18534277
DECAL
Warning
1шт.
65
18534107
DECAL
Patent
1шт.
66
87594280
DECAL
Case, CIH Logo, Start Year: 01-JAN-07
1шт.
Выбрано товаров: 60
