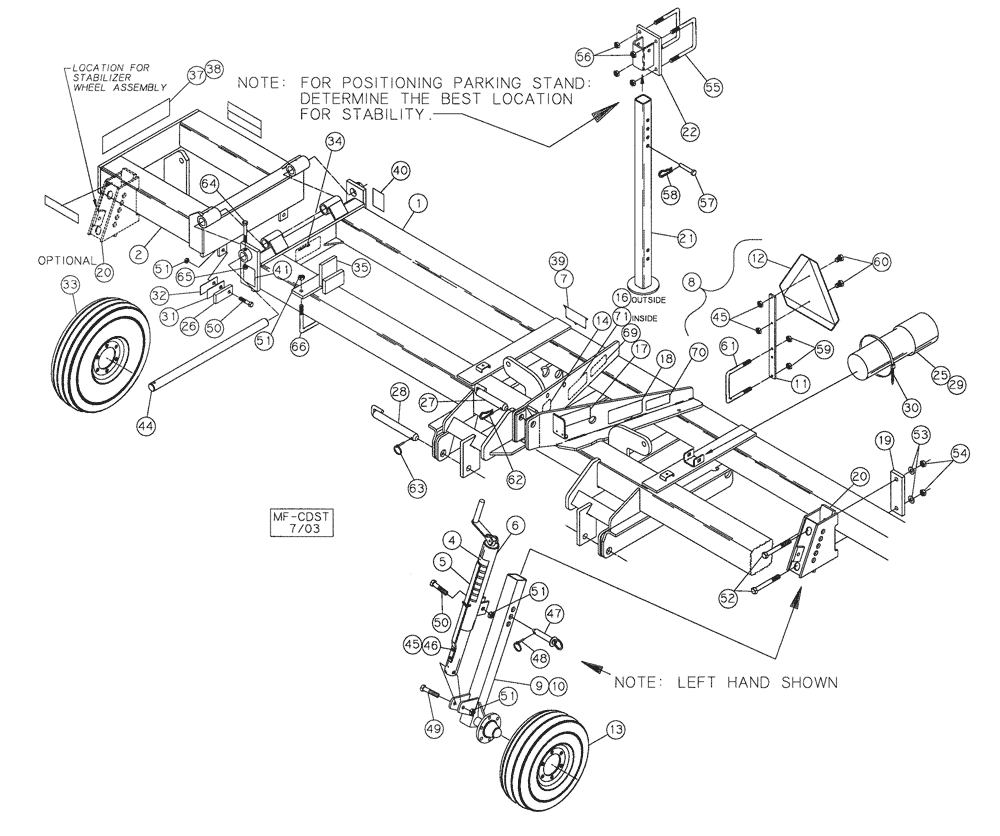

Запчасти Case IH 2500 ECOLO-TIL (39.100.02) - C AND D MAIN FRAME HYDRAULIC FOLD WINGS (39) - FRAMES AND BALLASTING

1

09662520B

FRAME ASSY

Main, "C" (132") - Blue

1шт.

1

09662530B

FRAME ASSY

Main, "D" (166") - Blue

1шт.

2

87410031

TUBE

Wing Weld, RH, 28" - Blue

1шт.

2

87410033

TUBE

Wing Weld, LH, 28" - Blue

1шт.

2

87410043

TUBE

Wing Weld, RH, 43" - Blue

1шт.

2

87410045

TUBE

Wing Weld, LH, 43" - Blue

1шт.

2

87410035

TUBE

Wing Weld, RH, 61" - Blue

1шт.

2

87410037

TUBE

Wing Weld, LH, 61" - Blue

1шт.

4

18534292

DECAL

Depth Indicator

2шт.

5

09661286

INDICATOR STRIP

2шт.

6

32253100

JACK ASSY.

5000

2шт.

7

87563598

DECAL

2шт.

8

18584100

PRODUCT GRAPHIC

SMV, 2500

1шт.

9

09661280

SPINDLE

RH, Facing Back

1шт.

10

09661290

SPINDLE

LH Facing Front Or RH Facing Back, LH Front Shown

1шт.

11

06000099

BRACE

SMV Bracket

1шт.

12

311860A1

EMBLEM

SMV, Black

1шт.

13

10008160

WHEEL ASSY.

20.5 x 8, 6-Bolt - White

2шт.

14

NSS

NOT SOLD SEPARAT

Serial Number Plate

1шт.

15

311864A1

REFLECTOR

Amber

2шт.

16

18534274

DECAL

2500

1шт.

17

18534362

DANGER DECAL

1шт.

18

18534361

DANGER DECAL

1шт.

19

09576610

LINKAGE

Flat

2шт.

20

09661270

BRACKET

Gauge Wheel

2шт.

20

09661320

BRACKET

Gauge Wheel Mounting, Optional

2шт.

21

09661250

STAND

Parking Weld

1шт.

22

09661260

STAND

Parking Bracket

1шт.

23

311865A1

REFLECTOR

Flourescent Strip

2шт.

24

311863A1

REFLECTOR

Red Strip

2шт.

25

30026030

TUBE

Manual Canister

1шт.

26

09661457

SHIM

Shim, 0.625" Thick

4шт.

27

14820364

SPECIAL PIN

1-1/4" Dia., Coated

1шт.

28

14823718

SPECIAL PIN

1-7/16", Coated

2шт.

30

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

Gear

1шт.

31

09661456

SHIM

0.113" Thick

4шт.

32

09661455

SHIM

8шт.

33

10006150

WHEEL ASSY.

7.60 x 15, White, StabIlizer Wheel Option

2шт.

34

18534227

DANGER DECAL

2шт.

35

09576810

BRACKET

10", Set-Back

1шт.

35

09661890

BRACKET

16", Set-Back

1шт.

36

09576757

STRAP

1шт.

37

18535036

DECAL

2500, Stripe, LH

1шт.

38

18535035

DECAL

2500, Stripe, RH

1шт.

40

18534244

REFLECTOR

Red

2шт.

41

18534243

REFLECTOR

Amber

2шт.

44

14892690

SPECIAL PIN

Wing Hinge

2шт.

45

86992211

NUT

1/4", NC, Stover

1шт.

46

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

NC

2шт.

47

14816348

PIN,25.4mm OD x 133.35mm L

2шт.

48

A30338

PIN

1/4" Dia. x 1-3/4", Klik

2шт.

49

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

NC

2шт.

50

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

NC

2шт.

51

85700693

NUT,5/8" - 11, Gr C

NC Stover

8шт.

52

413-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

4шт.

53

492-11075

LOCK WASHER,3/4"

4шт.

54

425-1012

NUT,3/4"-10, G5

4шт.

55

87427163

U-BOLT

BOLT "U" 5/8" x 6" x 7-1/2"

2шт.

56

425-1010

NUT,5/8"-11, G5

NC Hex.

4шт.

57

14810270

CLEVIS

5/8" x 3-1/2", EL, Pin"

1шт.

58

14720411

COTTER PIN

PIN, COTTER 1/8" x 2", Hair, ZP

1шт.

59

86992213

NUT

3/8", NC, Stover

2шт.

60

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

NC

2шт.

61

16309110

U-BOLT

3/8" x 6" x 6"

1шт.

62

1978738C1

HAIR PIN COTTER

3/16" x 3"

2шт.

63

D33805

PIN

7/16" x 2", Klik

2шт.

64

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

NC

2шт.

65

86992215

LOCK NUT,1/2"-13, GC

NC Stover

2шт.

66

425-1014

NUT,7/8"-9, G5

1шт.

67

413-14104

BOLT,Hex, 7/8" - 9 x 6-1/2", Gr 5

1шт.

68

09661905

STOP

Wing, 6-40. 2500 Rip Bed Only

2шт.

69

18534277

DECAL

Warning

1шт.

70

18534387

CAUTION DECAL

1шт.

71

18534107

DECAL

Patent

1шт.
