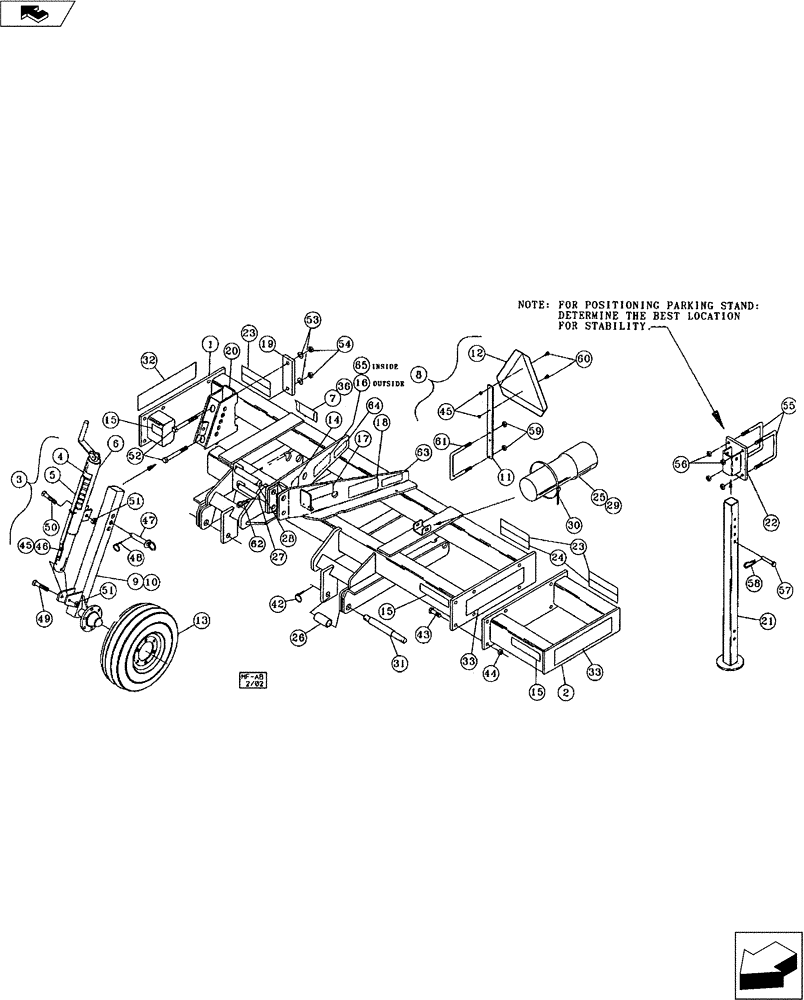

Запчасти Case IH 2500 ECOLO-TIL (39.100.01) - A AND B MAIN FRAME BOLT ON WINGS (39) - FRAMES AND BALLASTING

1

09662500B

FRAME ASSY

A, Main, 99", Blue

1шт.

1

09662510B

FRAME ASSY

B, Main, 135", Blue

1шт.

2

09661600B

TUBE ASSY.

Wing Weld, 17", LH, Blue

1шт.

2

09661700B

TUBE ASSY.

Wing Weld, 17, RH

1шт.

2

09661610B

TUBE ASSY.

Wing Weld, 27", LH, Blue

1шт.

2

09661710B

TUBE ASSY.

Wing Weld, 27", RH, Blue

1шт.

4

18534292

DECAL

Depth Indicator

2шт.

5

09661286

INDICATOR STRIP

2шт.

6

32253100

JACK ASSY.

5000

2шт.

7

18534259

DECAL

DMI Logo

2шт.

8

18584100

PRODUCT GRAPHIC

SMV Kit, 2500

1шт.

9

09661280

SPINDLE

RH Facing Front Or LH Facing Back

1шт.

10

09661290

SPINDLE

LH Facing Front or RH Facing Back, LH Front Shown

1шт.

11

06000099

BRACE

SMV

1шт.

12

311860A1

EMBLEM

SMV, Steel Back

1шт.

13

10008160

WHEEL ASSY.

20.5 x 8, 6-Bolt

2шт.

14

NSS

NOT SOLD SEPARAT

Serial Number Plate

1шт.

15

311864A1

REFLECTOR

Amber

4шт.

16

18534282

WARNING DECAL

1шт.

17

18534362

DANGER DECAL

1шт.

18

18534361

DANGER DECAL

1шт.

19

09576610

LINKAGE

Flat

2шт.

20

09661270

BRACKET

Gauge Wheel Mounting

2шт.

21

09661250

STAND

Parking, Weld

1шт.

22

09661260

STAND

Parking, Bracket

1шт.

23

311865A1

REFLECTOR

Flourescent

4шт.

24

311863A1

REFLECTOR

Red

4шт.

25

30026030

TUBE

Manual, Canister

1шт.

26

02305000

SPACER

Catagory 3, Hitch Pin

2шт.

27

14816500

SPECIAL PIN

1" Dia., Clevis, Coated, Weld

1шт.

28

14820364

SPECIAL PIN

1-1/4" Dia., Coated, Weld

1шт.

30

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

1шт.

31

14892370

SPECIAL PIN,36.52mm OD x 382.52mm L

Combination 3 Point, Coated

1шт.

32

18535035

DECAL

2500 Stripe, RH

2шт.

33

18535036

DECAL

2500 Stripe, LH

2шт.

34

09576757

STRAP

1шт.

35

09576810

BRACKET

10" Set Back

1шт.

35

09661890

BRACKET

16" Set Back

1шт.

42

14710815

PIN, LOCKING

Klik

2шт.

43

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

NC

12шт.

44

425-1012

NUT,3/4"-10, G5

NC Hex.

12шт.

45

86992211

NUT

1/4", NC, Stover

2шт.

46

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

NC

2шт.

47

14816348

PIN,25.4mm OD x 133.35mm L

2шт.

48

A30338

PIN

1/4" Dia. x 1-3/4, Klik

2шт.

49

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

NC

2шт.

50

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

NC, ZP

2шт.

51

85700693

NUT,5/8" - 11, Gr C

NC Stover

8шт.

52

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

NC, ZP

4шт.

53

492-11075

LOCK WASHER,3/4"

4шт.

54

425-1012

NUT,3/4"-10, G5

NC, Hex.

4шт.

55

87427168

U-BOLT

5/8" x 6" x 5-1/2"

2шт.

56

425-1010

NUT,5/8"-11, G5

NC, Hex.

4шт.

57

14810270

CLEVIS

5/8" x 3-1/2", EL, Pin

1шт.

58

14720411

COTTER PIN

PIN, COTTER 1/8 "x 2", Hair, ZP

1шт.

59

86992213

NUT

3/8", NC, Stover

2шт.

60

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

NC

2шт.

61

16309101

U-BOLT,3/8" - 16, Square, 4" W x 6" L

BOLT "U" 3/8" x 6" x 4"

1шт.

62

1978738C1

HAIR PIN COTTER

3/16" x 3"

2шт.

63

18534107

DECAL

Patent

1шт.

64

18534277

DECAL

Warning

1шт.

65

18534387

CAUTION DECAL

1шт.
