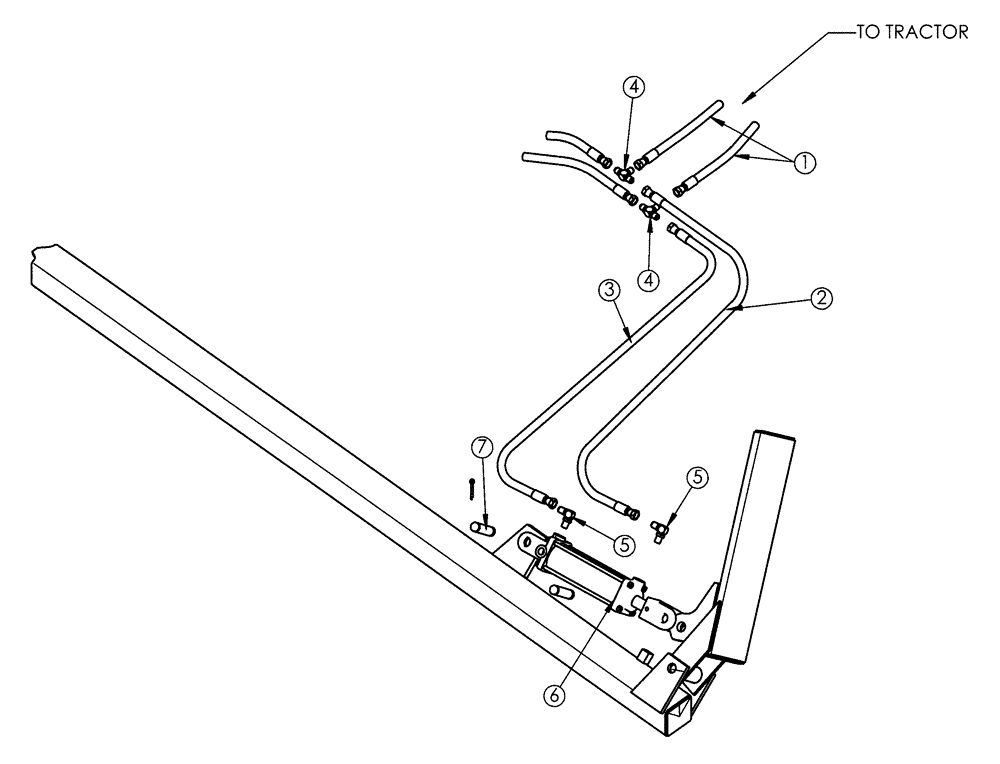

Запчасти Case IH 2500 ECOLO-TIL (35.100.05) - DISC LEVELR HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

25610645

HYDRAULIC HOSE

3/8" x 80" Long

2шт.

2

25600633

HYDRAULIC HOSE,0.38" ID x 165.00", SAE 100R17

(9-30)

1шт.

2

25600726

HYDRAULIC HOSE,0.38" ID x 130.50", SAE 100R17

(7-30)

1шт.

3

25600674

HYDRAULIC HOSE,0.38" ID x 154.00", SAE 100R17

(9-30)

1шт.

3

25600681

HYDRAULIC HOSE,0.38" ID x 121.00", SAE 100R17

(7-30)

1шт.

4

218-594

TEE,3/4"-16, 37 Degree

14 JICM

2шт.

5

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

JICM x SAEM

2шт.

6

25330101

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

3" x 10" 3000 psi

2шт.

6

25330101R

REMAN-HYD CYLINDER

2500 ECOLO-TIL DMI IN LINE RIPPER, 3000 psi

2шт.

6

25330101C

CORE-HYD CYLINDER

Return Number

2шт.

7

25890100

KIT

1" Cylinder Pin

2шт.
