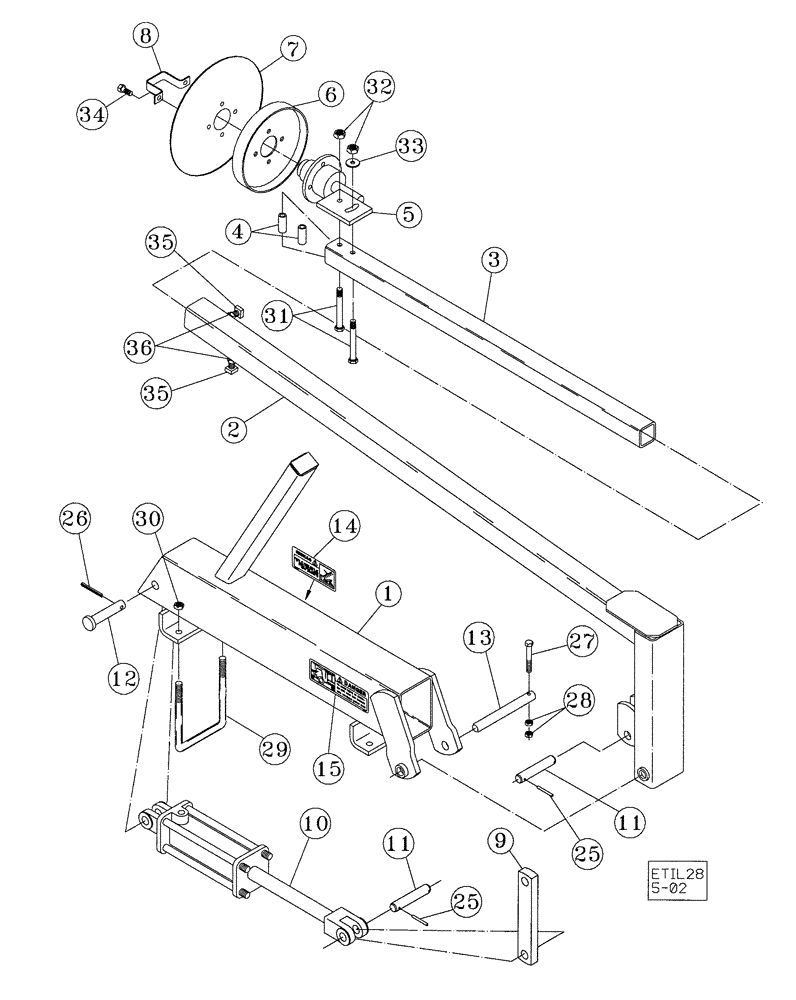

Запчасти Case IH 2500 ECOLO-TIL (75.200.22) - SINGLE FOLD ROW MARKER (75) - SOIL PREPARATION

1

09667600

BAR ASSY.

Marker Mount, Single Fold

1шт.

2

09667700

BAR ASSY.

Inner Arm, Single Fold

1шт.

3

09667800

ARM ASSY.

Extension Arm, Single Fold

1шт.

4

04670220

SPACER

Extension Tube

2шт.

5

04670500

BAR ASSY.

Disc Hub

1шт.

6

09662450

BRACKET

Marker Blade Shield

1шт.

7

443623A1

PLOW DISC

HPT BLADES 13" PLAIN 2.5 MM

1шт.

8

04670510

CAP

Hub

1шт.

9

04670210

SPINDLE

Link

1шт.

10

25325161

HYDRAULIC CYLINDER,Double Acting, 31mm Rod, 406.4mm Stroke

2-1/2 x 16

1шт.

11

25890100

KIT

1, Cylinder Bag

1шт.

12

14816426

CLEVIS

1 x 5-1/4, Pin

1шт.

13

14891644

SPECIAL PIN

1 x 8.80

1шт.

14

18534285

DECAL

Danger

1шт.

15

18534284

WARNING SIGN

Danger, OH Power

1шт.

25

432-1232

COTTER PIN,3/16" OD x 2" L

2шт.

26

432-1632

COTTER PIN,1/4" x 2"

1шт.

27

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

28

425-106

NUT,3/8"-16, Cl 5

2шт.

29

87427170

U-BOLT

BOLT "U" 5/8 x 4 x 8

2шт.

30

425-1010

NUT,5/8"-11, G5

5шт.

31

424-864

BOLT,Hex, 1/2" - 13 x 4", Gr 2

2шт.

32

425-108

NUT,1/2" - 13, Gr 5

2шт.

33

495-21056

WASHER,1/2"

2шт.

34

414-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

4шт.

35

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

2шт.
