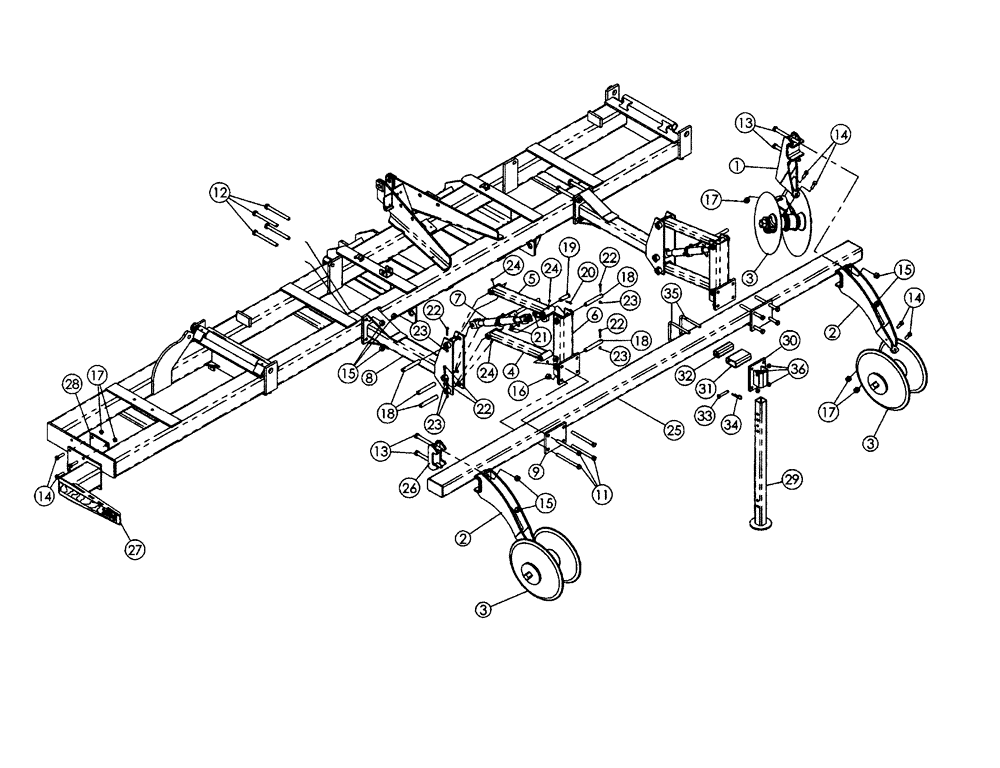

Запчасти Case IH 2500 ECOLO-TIL (75.200.18) - BEDDER PARALLEL ARM 4-BAR LINKAGE PARTS (75) - SOIL PREPARATION

1

09662610

FRAME ASSY

Front Bedder

1шт.

2

09662620

FRAME ASSY

Rear Bedder

1шт.

3

33500000

PLOW DISC

Double, Bedder

2шт.

4

09102730

LINK

Bottom Pivot

1шт.

5

09102720

LINK

Top Pivot

1шт.

6

09661976

TUBE,16" Length

Bedder Mount

1шт.

7

32400100

TURNBUCKLE

Ratched Jack, 8" Stroke

1шт.

8

09661980

ARM

Support, Shear Bolt

1шт.

8

09661970

ARM

Support, Auto Reset

1шт.

9

09102718

MOUNTING PLATE

1шт.

10

09661882

PLATE

Mounting

1шт.

11

413-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

NC

4шт.

12

413-14104

BOLT,Hex, 7/8" - 9 x 6-1/2", Gr 5

NC

4шт.

12

413-14136

BOLT,Hex, 7/8" - 9 x 8-1/2", Gr 5

NC

4шт.

13

413-14152

BOLT,Hex, 7/8" - 9 x 9-1/2", Gr 5

NC

2шт.

13

413-14120

BOLT,Hex, 7/8" - 9 x 7-1/2", Gr 5

NC

2шт.

14

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

NC

4шт.

15

87681198

NUT,Hex, 7/8"-9, 0.45 high

6шт.

15

232-41114

LOCK NUT,7/8"-9, GC

NC, Stover

6шт.

16

232-41112

NUT,3/4"-10, GC

Stover, 3/4", NC

4шт.

16

280375

NUT,3/4"-10, GC

4шт.

17

232-41110

NUT,5/8"-11, GC

Stover, NC

1шт.

17

85700693

NUT,5/8" - 11, Gr C

1шт.

18

14891654

PIN

1"

5шт.

19

14816180

HEADED PIN

1" x 3"

1шт.

20

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

21

17616011

BUSHING

Machinery, 1" 10 Ga.

2шт.

22

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

NC

5шт.

23

86992213

NUT

3/8", NC, Stover

5шт.

23

232-4116

NUT,3/8"-16, GC

NC, Stover

5шт.

24

219-86

LUBE NIPPLE,1/8" NPTF

NPT, Self Tapping

4шт.

25

09662065

TUBE,167" Length

Bedder, 4" x 6" x 167", Main 36" And 40", 4-Row And 8-Row

1шт.

25

09662075

TUBE,223" Length

Bedder, 4" x 6" x 223", Main 36", 6-Row

1шт.

25

09662070

TUBE

Bedder, 4" x 6" x 127", Main 38" And 40", 6-Row

1шт.

25

09661928

TUBE,53" Length

Bedder, 53", Wing 38" And 40", 6-Row

1шт.

25

09661921

TUBE,75.5" Length

Bedder, 75-1/2", Wing 36" And 40", 8-Row

1шт.

26

09662640

DRAWBAR CLAMP

Weldment

1шт.

27

87410054

TUBE

Stub Wing, LH, 40, 6-Row And 8-Row Shown

1шт.

27

09661940

Stud Wing, LH, 40", 6-Row And 8-Row

1шт.

28

09661945

PLATE

Mount, 40", 6-Row And 8-Row

2шт.

29

09661250

STAND

Parking

1шт.

30

09661260

STAND

Parking

1шт.

31

09661960

TUBE,152.4 mm Length

Stand

1шт.

32

09661961

TUBE,6" Length

Stand, 4" x 6" Only

1шт.

33

14810270

CLEVIS

Pin, 5/8" x 3-1/2", EL

1шт.

34

14720411

COTTER PIN

PIN, COTTER Hair, 1/2" x 2"

1шт.

34

NSS

NOT SOLD SEPARAT

Hair Pin, 1/2" x 2"

1шт.

35

16310028

SPECIAL BOLT

5/8" x 6" x 7-1/2", U

2шт.

35

16310030

U-BOLT

BOLT "U" 5/8" x 6" x 5-1/2"

2шт.

35

87427168

U-BOLT

5/8" x 6" x 5-1/2"

2шт.

36

425-1010

NUT,5/8"-11, G5

Hex, NC, ZP

4шт.
