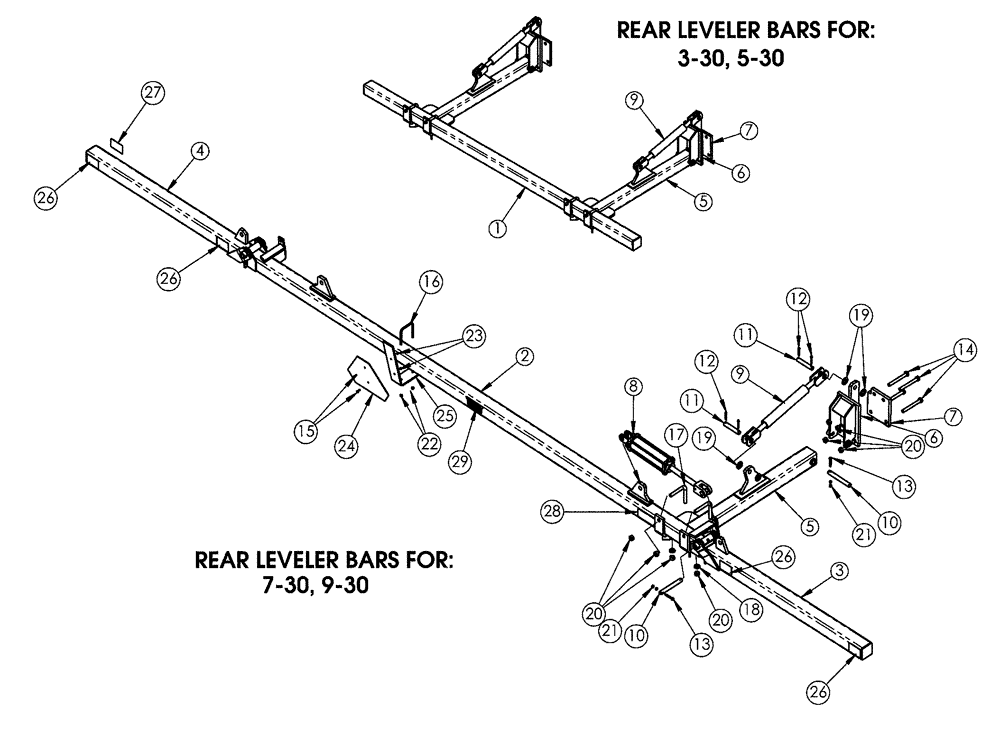

Запчасти Case IH 2500 ECOLO-TIL (75.200.16) - HYDRAULIC LEVELER BAR (75) - SOIL PREPARATION

1

09100500

BAR ASSY.

Rear Level'r, 3-30

1шт.

1

87355968

HYD TUBE

Rear Level'r, 5-30

1шт.

2

09102580

BAR PLATE

Rear Center Section, 7-30

1шт.

2

09102540

BAR ASSY.

Rear Center Section, 9-30

1шт.

3

09102560

BAR ASSY.

Wing Weld, Lh, 7-30 And 9-30

1шт.

4

09102550

BAR ASSY.

Wing Weld, Rh, 7-30 And 9-30

1шт.

5

09102985

ARM ASSY.

Pivot

1шт.

6

09102970

SUPPORT ASSY.

1шт.

7

09102942

WEAR PLATE

Mount

1шт.

8

25330101

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

3 x 10, 7-30 And 9-30

2шт.

8

25330101R

REMAN-HYD CYLINDER

2500 ECOLO-TIL CASE IH INLINE RIPPER

2шт.

8

25330101C

CORE-HYD CYLINDER

Return Number

2шт.

9

32400100

TURNBUCKLE

1шт.

10

14891665

HITCH PIN

1, Dia. x 7.94

1шт.

11

14816180

HEADED PIN

1, Dia. x 3

1шт.

12

432-1624

COTTER PIN,1/4" x 1 1/2"

1шт.

13

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

14

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

4 x 6 Tube

1шт.

14

413-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

6 x 6 Tube

1шт.

15

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

16

16309091

U-BOLT,3/8" - 16, Square, 4" W x 5" L

BOLT "U" 3/8 x 4 x 4

1шт.

17

87427192

SPECIAL BOLT

3/4 x 5.69

1шт.

18

17412001

WASHER,19.46mm ID x 38.1mm OD x 4.78mm Thk

3/4, ID

1шт.

19

17616021

BUSHING,25.8mm ID x 38.1mm OD x 2.08mm L

1, Machine, 14 ga

8шт.

20

425-1012

NUT,3/4"-10, G5

Jam

1шт.

21

425-106

NUT,3/8"-16, Cl 5

1шт.

22

231-4246

LOCK NUT,3/8"-16, GB

2шт.

23

86992211

NUT

1/4, Stover

2шт.

24

311860A1

EMBLEM

SMV

1шт.

25

09102965

BRACKET

SMV

1шт.

26

311863A1

REFLECTOR

Red

2шт.

27

311864A1

REFLECTOR

Yellow

2шт.

28

18534227

DANGER DECAL

1шт.

29

18534261

DECAL

DMI Logo

1шт.
