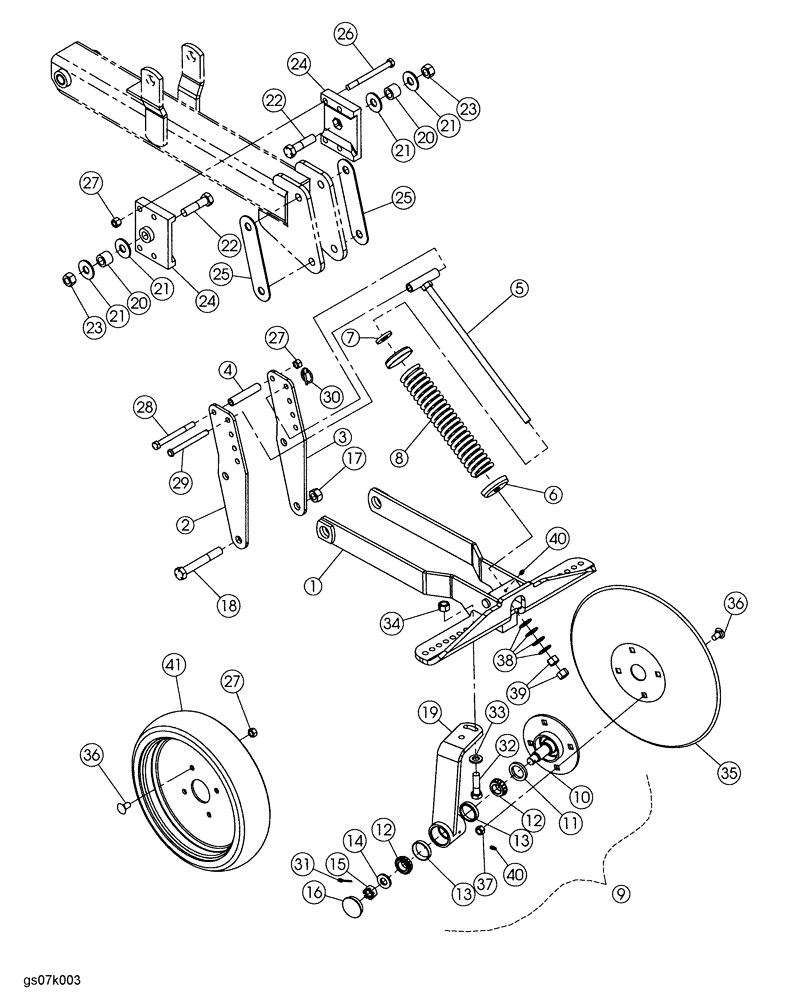

Запчасти Case IH 2500 ECOLO-TIL (75.200.13) - BERM BUILDER AND TUCKER WITH SPRING RESET BUNDLES FOR 2008 PRODUCTION AND AFTER (75) - SOIL PREPARATION

1

87534127

BEAM

Linkage

1шт.

2

87562102

PLATE

Guide

1шт.

3

87589092

PLATE

1шт.

4

87563107

SPACER

1шт.

5

87541332

BOLT

Spring Pack

1шт.

6

87395343

SPRING CUP

2шт.

7

87613192

WASHER,0.66" ID x 1.75" OD x 0.24" Thk

0.656 x 1.75 x 0.239

1шт.

8

87666313

SPRING

Compression

1шт.

9

09662032

ARM ASSY.

LH

1шт.

9

09662020

ARM ASSY.

RH

1шт.

10

09103120

DISC

1шт.

11

21931375

SEAL

1.37, CR533468

1шт.

12

463911R91

ROLLER BEARING,1" ID x 0.58"

1.00, L44643

2шт.

13

572564R1

BEARING CUP

1.980, L44610

2шт.

14

17412001

WASHER,19.46mm ID x 38.1mm OD x 4.78mm Thk

3/4

1шт.

15

425-1312

SLOTTED NUT,3/4"-16, G5

1шт.

16

28420021

CAP

1шт.

17

280375

NUT,3/4"-10, GC

4шт.

18

413-1284

BOLT,Hex, 3/4" - 10 x 5-1/4", Gr 5

2шт.

19

09662023

ARM ASSY.

RH

1шт.

19

09662024

ARM ASSY.

LH

1шт.

20

87397246

BUSHING,20.62mm ID x 31.75mm OD x 25.4mm L

2шт.

21

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

4шт.

22

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

2шт.

23

280375

NUT,3/4"-10, GC

4шт.

24

87722631

BEAM

Mount, Berm, Pivot

2шт.

25

09664110

FRAME ASSY

2шт.

26

413-892

BOLT,Hex, 1/2" - 13 x 5-3/4", Gr 5

4шт.

27

232-4118

NUT,1/2"-13, GC

13шт.

28

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1шт.

29

439-5880

HEADED PIN,1/2" x 5"

1шт.

30

A33497

LINCH PIN,4.76mm OD Pin

1шт.

31

432-816

COTTER PIN,1/8" x 1"

1шт.

32

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

33

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

34

86992215

LOCK NUT,1/2"-13, GC

4шт.

35

84180366

DISK HARROW

MC,FLT CNTR 460X63.5X3

2шт.

36

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

8шт.

38

17511000

BELLEVILLE WASHER

11/16

4шт.

39

425-1010

NUT,5/8"-11, G5

2шт.

40

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

41

10004160

WHEEL ASSY

1шт.
