Запчасти Case IH 2500 ECOLO-TIL (75.200.10) - ROW CONDITIONING SYSTEM (75) - SOIL PREPARATION

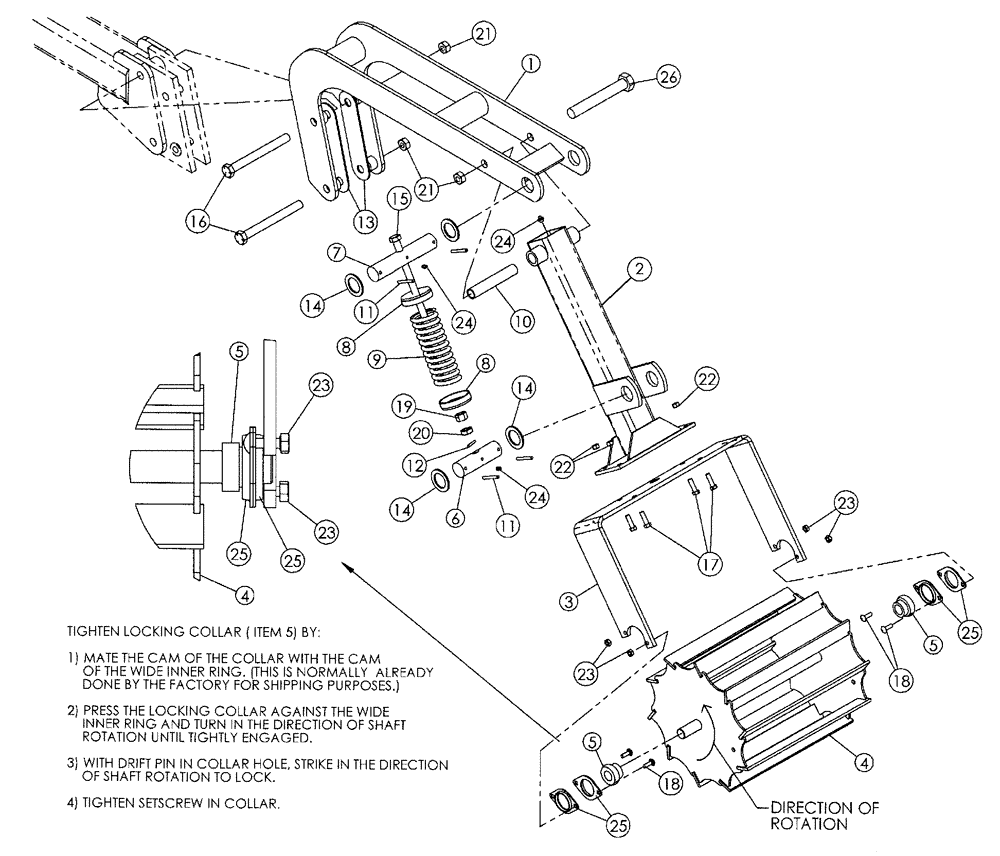

Схема запчастей Case IH 2500 ECOLO-TIL - (75.200.10) - ROW CONDITIONING SYSTEM (75) - SOIL PREPARATION
25
8
5
21
24
23
14
3
23
4
6
26
10
24
22
18
2
16
12
14
25
17
21
5
20
11
23
19
9
7
24
11
18
8
4
22
15
1
25
25
14
23
13

Артикул

Название

Примечание

Количество

1

09664170

BRACKET

Upper Arm

1шт.

2

09664120

FRAME ASSY

Lower Arm

1шт.

3

09664205

BRACKET

Basket Support

1шт.

4

09664250

BRACKET

14, Basket, Flat

1шт.

4

09664350

BRACKET

14, Basket, Round

1шт.

5

21801601

FLANGED BEARING,1" ID

1 ID, With Locking Collar

2шт.

6

09664140

PIN

Rear Trunnion

1шт.

7

09664150

BAR

Top Trunnion

1шт.

8

09666502

WASHER

2шт.

9

24137502

SPRING

Compression

1шт.

10

09664180

TUBE,0.782" ID, 1" OD, 5.69" Length

Inner Tube

1шт.

11

438-31636

PIN,1/4" x 2 1/4", Coiled

Spring

4шт.

12

438-31220

PIN,3/16" x 1 1/4", Coiled

1шт.

13

09664110

FRAME ASSY

Spacer Plate, Auto Reset Only

2шт.

14

17624022

BUSHING

1-1/2, Machine, 10 ga

4шт.

15

16901050

CAPSCREW,Hex, 5/8" - 11 x 14", Gr 5

5/8 x 14, NC, Hex, gd 5

1шт.

16

426-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 8

2шт.

17

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

18

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

4шт.

19

425-1010

NUT,5/8"-11, G5

2шт.

20

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8, NC, Jam

1шт.

21

280375

NUT,3/4"-10, GC

3шт.

22

86992213

NUT

3/8, NC, Stover

4шт.

23

86992212

NUT

5/16, NC, Stover

4шт.

24

219-87

LUBE NIPPLE,1/4" - 28 NPTF

Self Tapping

3шт.

25

86548974

FLANGE,Bearing

Bearing

4шт.

26

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

1шт.

27

09664000

FRAME ASSY

Rip Strip Arm Not Shown

1шт.

28

09664200

BRACKET

Flat Basket Assembly, Not Shown

1шт.

29

09664300

BRACKET

Round Baskett Assembly, Not Shown

1шт.
