Запчасти Case IH 2500 ECOLO-TIL (75.200.09) - HEAVY DUTY BERM BUILDR FOR RIP STRIP UNITS (75) - SOIL PREPARATION

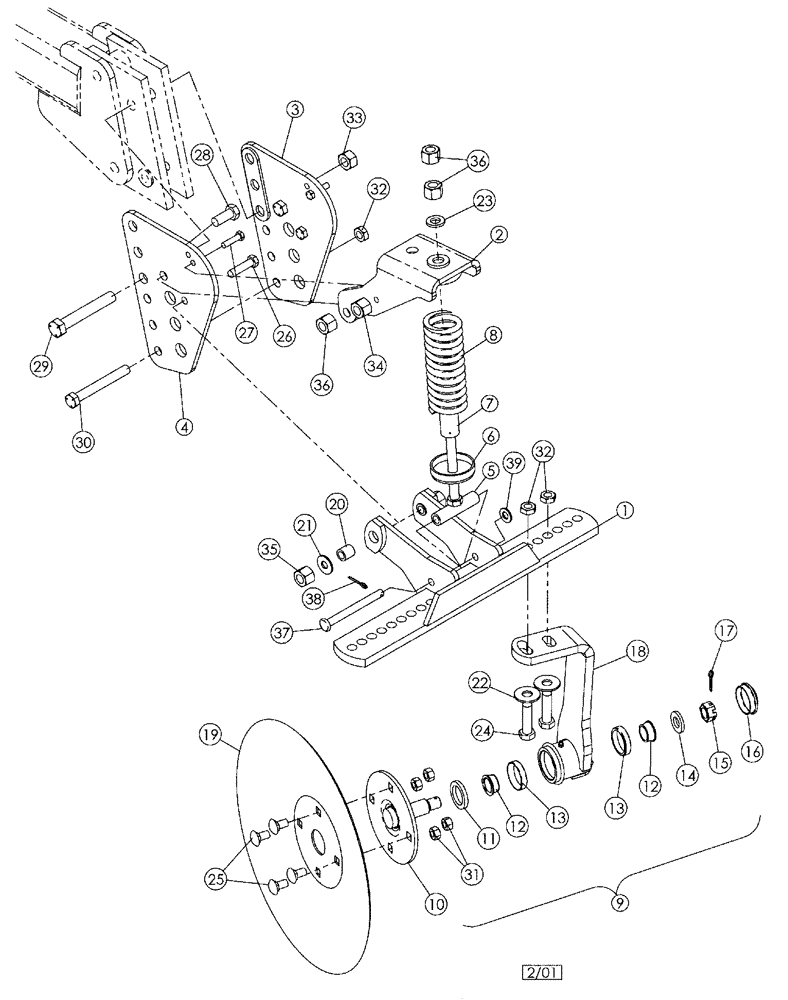

Схема запчастей Case IH 2500 ECOLO-TIL - (75.200.09) - HEAVY DUTY BERM BUILDR FOR RIP STRIP UNITS (75) - SOIL PREPARATION
28
4
32
12
3
15
24
36
35
27
7
13
5
34
25
17
9
36
6
22
32
39
23
19
26
21
31
12
11
33
37
8
13
18
30
14
16
10
1
20
2
38
29

Артикул

Название

Примечание

Количество

1

09662045

ARM ASSY.

Pivot

1шт.

2

09662043

BRACKET

Spring Mount

1шт.

3

09662006

BRACKET

Mount, Rh

1шт.

4

09662007

BRACKET

Mount, Lh

1шт.

5

09662055

SPECIAL BOLT

Pivot

1шт.

6

09666502

WASHER

1шт.

7

09662004

TUBE

1шт.

8

24137502

SPRING

Compression

1шт.

9

09662050

ARM ASSY.

Rh

1шт.

9

09662060

ARM ASSY.

Lh

1шт.

10

09103120

DISC

Spindle

2шт.

11

21931375

SEAL

CR533468

2шт.

12

463911R91

ROLLER BEARING,1" ID x 0.58"

Timken L44643

4шт.

13

572564R1

BEARING CUP

Timken L44610

4шт.

14

17412001

WASHER,19.46mm ID x 38.1mm OD x 4.78mm Thk

Heat Treated

2шт.

15

425-1312

SLOTTED NUT,3/4"-16, G5

Hex

2шт.

16

28420021

CAP

Grease

2шт.

17

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

18

09662054

ARM ASSY.

Rh

1шт.

18

09662064

ARM ASSY.

Lh

1шт.

19

84180366

DISK HARROW

MC,FLT CNTR 460X63.5X3

2шт.

19

84380555

DISK HARROW

HPT BLADES 18" PLAIN 3.0 MM

2шт.

19

84380560

DISK HARROW

18, Notched, Sharp

2шт.

20

02323001

BUSHING

Heat Treated

2шт.

21

495-21056

WASHER,1/2"

1.375 x .562 x .109

2шт.

22

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

5/8, Standard

4шт.

23

17411011

WASHER,17.2mm ID x 32mm OD x 4.37mm Thk

5/8

1шт.

24

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

4шт.

25

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

8шт.

26

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

27

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

28

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

29

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

30

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

31

425-108

NUT,1/2" - 13, Gr 5

8шт.

32

425-1010

NUT,5/8"-11, G5

5шт.

33

425-1012

NUT,3/4"-10, G5

1шт.

34

86992213

NUT

3/8, NC, Stover

2шт.

35

86992215

LOCK NUT,1/2"-13, GC

Stover

2шт.

36

85700693

NUT,5/8" - 11, Gr C

4шт.

37

14808400

SPECIAL PIN,12.7mm OD x 138.76mm L

1/2 x 5

1шт.

38

432-1024

COTTER PIN,5/32" x 1 1/2"

1шт.

39

495-11053

WASHER,1/2", SAE

1шт.

40

09661990

BEAM ASSY.

Heavy Duty Berm Builder Assembly, Does Not Inc. 9 Or 19, Not Shown

1шт.

Выбрано товаров: 44
