Запчасти Case IH 2500 ECOLO-TIL (75.200.08[02]) - STABILIZER BAR ASSEMBLY PARTS (75) - SOIL PREPARATION

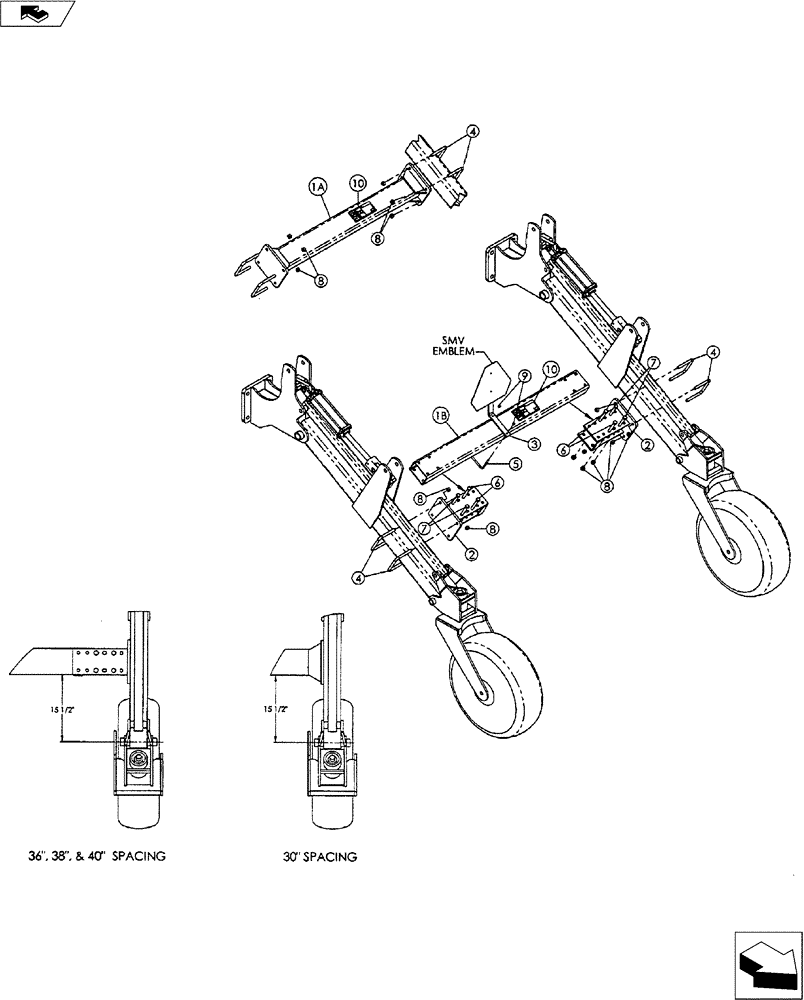

Схема запчастей Case IH 2500 ECOLO-TIL - (75.200.08[02]) - STABILIZER BAR ASSEMBLY PARTS (75) - SOIL PREPARATION
4
6
10
4
2
4
8
6
7
1a
7
8
1b
5
9
8
8
10
8
2
3

Артикул

Название

Примечание

Количество

1a

09662150

TUBE,56" Length

Stabilizer, 30"

1шт.

1b

09662100

TUBE,62.5" Length

Stabilizer, 36", 38", And 40"

1шт.

2

09662110

STABILIZER

Tube, Adjustable End, With 36", 38" And 40" Only

2шт.

3

09662230

PRODUCT GRAPHIC

SMV, Bracket

1шт.

4

16310030

U-BOLT

BOLT "U" 5/8" x 6" x 5-1/2"

4шт.

5

16309101

U-BOLT,3/8" - 16, Square, 4" W x 6" L

BOLT "U" 3/8", Square

1шт.

6

413-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

NC, ZP

4шт.

7

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

NC

4шт.

8

232-41110

NUT,5/8"-11, GC

NC, Stover

1шт.

9

232-4116

NUT,3/8"-16, GC

NC, Stover

2шт.

Выбрано товаров: 10
