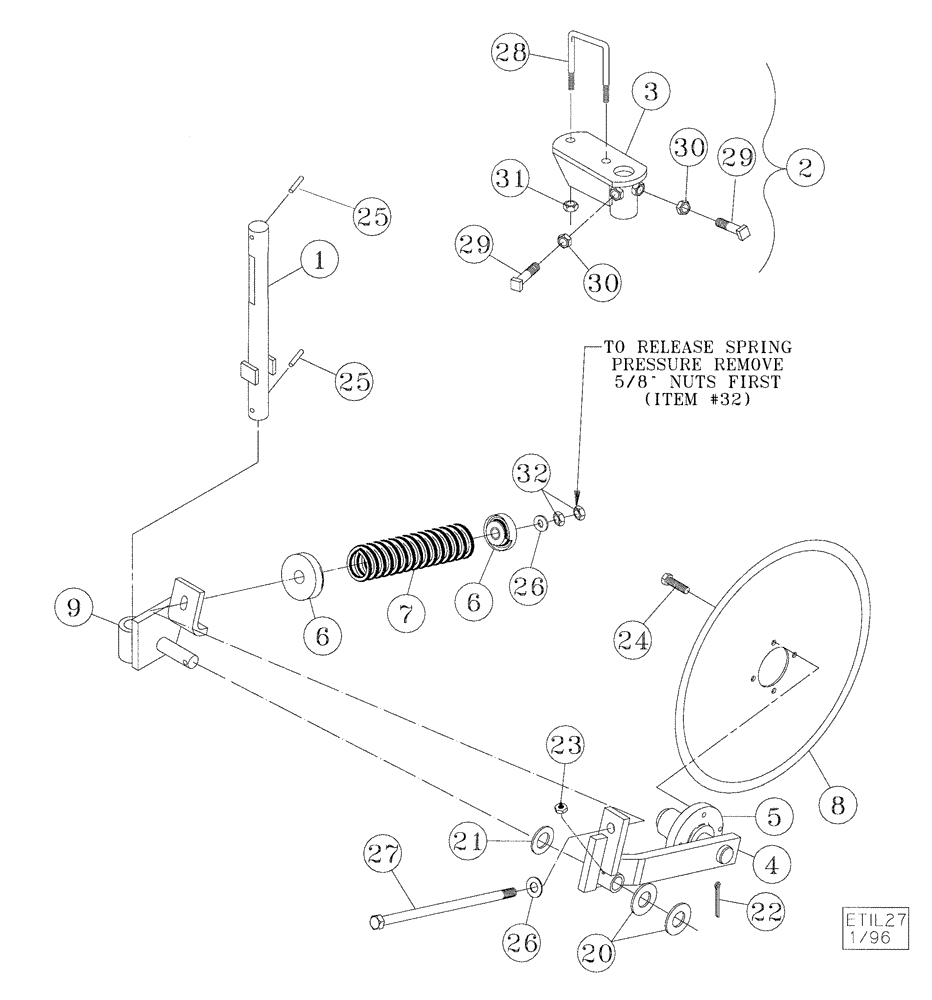

Запчасти Case IH 2500 ECOLO-TIL (75.200.07) - 22 SPRING COULTER ASSEMBLY (75) - SOIL PREPARATION

1

09661820

SUPPORT

Coulter Shaft, 22

1шт.

2

P6466340

KIT

22, Mount With Hardware, 4 x 6 Bar

1шт.

2

09661839

BAR ASSY.

22, Mount With Hardware, 6 x 6 Bar

1шт.

2

09661838

BAR ASSY.

22" Mount WlHardware 4" x 6" Bar

1шт.

3

87460812

MOUNTING PARTS

22, Coulter Mount, 4 x 6 Bar

1шт.

3

09661830

SUPPORT

22, Coulter Mount, 6 x 6 Bar

1шт.

3

09661835

SUPPORT

22" Coulter Mount 4" x 6" Bar

1шт.

4

09661852

SUPPORT

Coulter Arm, 4 x 6, Incl 4 - 5, 24

1шт.

4

04663300

SUPPORT

Coulter Arm, 6 x 6, Incl 4 - 5, 24

1шт.

5

28063321

HUB ASSY.

633, 4-Bolt, With Spindle, Spindle O.A.L. 7-19/32"

1шт.

6

20090050

HOLDER

Spring

2шт.

7

24156205

COIL SPRING

Compression

1шт.

8

443635A1

DISC

22" PLAIN 4.5 MM

1шт.

8

443637A1

PLOW DISC

22, Wavy

1шт.

9

09661841

SUPPORT

Coulter Pivot

1шт.

20

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1-1/4, Machine, 14 ga

2шт.

21

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1-1/4, Machine, 10 ga

1шт.

22

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

1шт.

23

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

24

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

25

438-32840

PIN,11.1mm OD x 63.5mm L

2шт.

26

495-81028

WASHER,21/32" x 1 1/2" x .240"

2шт.

26

17411012

WASHER

11/16" I.D. x 1-3/4" O.D. x .25"

2шт.

27

413-10216

BOLT,Hex, 5/8" - 11 x 13-1/2", Gr 5

1шт.

28

87427182

U-BOLT

BOLT "U" 3/4 x 4 x 7-1/2, 4 x 6 Bar

1шт.

28

87427188

U-BOLT

BOLT "U" 3/4 x 6 x 7-1/2, 6 x 6 Bar

1шт.

28

16312020

U-BOLT

BOLT "U" 3/4" x 4" x 7-1/2" (4" x 6" Bar)

1шт.

29

16812075

SET SCREW

3/4 x 1-3/4, Square Head

2шт.

29

16812084

SET SCREW,3/4" - 10 x 2"

3/4 x 2, Square Head

2шт.

30

425-1412

JAM NUT,Jam, 3/4"-10, G5

2шт.

31

425-1012

NUT,3/4"-10, G5

2шт.

32

425-1010

NUT,5/8"-11, G5

2шт.

33

09661815

SUPPORT

Colt Arm Assy 6X6 SS Incl 4,5,7,9

1шт.
