Запчасти Case IH 2500 ECOLO-TIL (75.200.03[01]) - SHANKS 2500 RIP-BED & RIP-STRIP (75) - SOIL PREPARATION

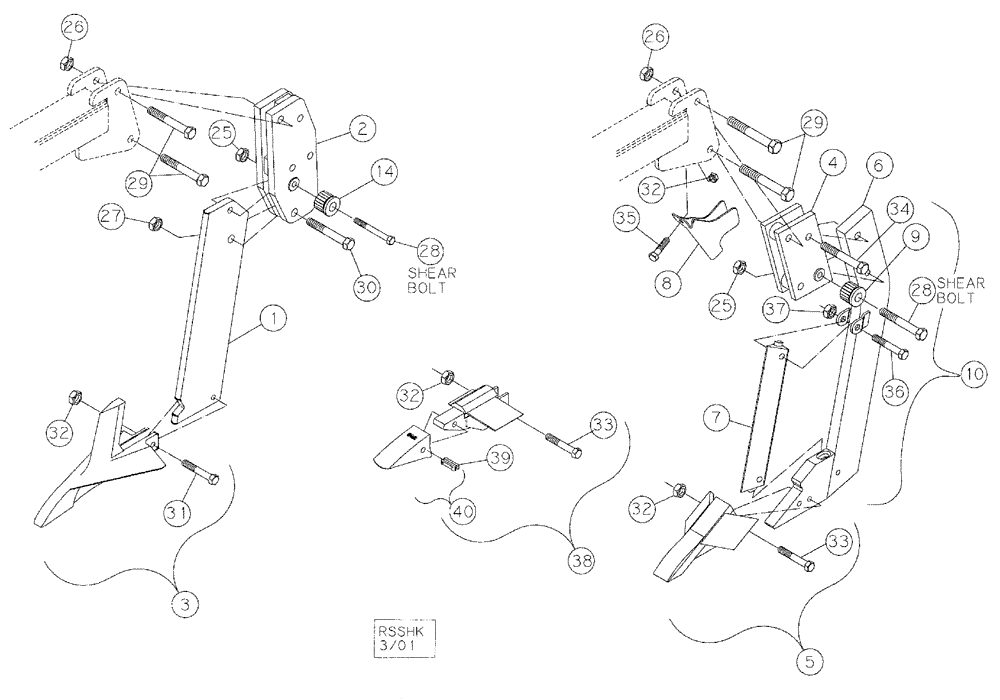

Схема запчастей Case IH 2500 ECOLO-TIL - (75.200.03[01]) - SHANKS 2500 RIP-BED & RIP-STRIP (75) - SOIL PREPARATION
8
26
6
25
34
14
29
32
36
40
30
33
10
4
32
28
35
31
38
26
39
37
32
9
3
32
5
33
1
27
2
28
29
25
7

Артикул

Название

Примечание

Количество

1

33020046

SHANK

No-Till, Painted

1шт.

2

09651580

SPRING BOX

No-Till Shank Holder (Incl 2 & 14)

1шт.

3

09729003

POINT

8" No-Till Wing

1шт.

4

09651570

HOLDER

Shank, MRD & Parabolic

1шт.

5

09729000

POINT

2" Parabolic, w/Hardware

1шт.

5

09729001

POINT

5" Parabolic Wing

1шт.

5

09729002

POINT

Assembly, 7" WP Tiger

1шт.

6

09581750

SHANK

MRD

1шт.

7

09581760

WEDGE

MRD Shin

1шт.

8

09651575

BRACKET

MRD Stalk Guard

1шт.

9

44006510

BUSHING

5/8" Serrated

1шт.

10

09581705

SHANK

MRD Assembly

1шт.

25

NSS

NOT SOLD SEPARAT

Hex Nut, 5/8" NC, Gd. 5

1шт.

26

NSS

NOT SOLD SEPARAT

Hex Nut, 3/4" NC, Gd. 5

3шт.

27

NSS

NOT SOLD SEPARAT

Hex Nut, 7/8" NC, Gd. 5

1шт.

28

16010155

BOLT

5/8" x 3-3/4" NC, ZP, Gd. 5

1шт.

29

16901205

BOLT

3/4" x 4-3/4" UNC A325

2шт.

30

16901425

BOLT

7/8" X 3-3/4" UNC A325

1шт.

31

16008085

BOLT

1/2" x 2" NC, Gd. 5

1шт.

32

NSS

NOT SOLD SEPARAT

Hex Nut, 1/2" NC, Gd. 5

3шт.

33

16008095

BOLT

1/2" x 2-1/4" NC Gd. 5

1шт.

34

16901215

BOLT

3/4" x 3-3/4" NC A325

1шт.

35

NSS

NOT SOLD SEPARAT

1/2" x 1 " NC Bolt, ZP, Gd. 5

1шт.

36

NSS

NOT SOLD SEPARAT

1/2" X 2-1/2" NC Bolt, ZP Gd. 5

1шт.

37

14010805

NUT

Lock, 1/2" NC, Gd. 5

1шт.

38

09729004

FROG, SADDLE FROG

7" Replaceable Tip Point Assembly

1шт.

39

14890625

CLEVIS PIN

3/8" Flex

1шт.

40

09907015

TIP

Replaceable (Incl. 42)

1шт.

Выбрано товаров: 28
