(75.200.02[02]) - SHANK MOUNT ASSEMBLY

Запчасти Case IH 2500 ECOLO-TIL (75.200.02[02]) - SHANK MOUNT ASSEMBLY (75) - SOIL PREPARATION

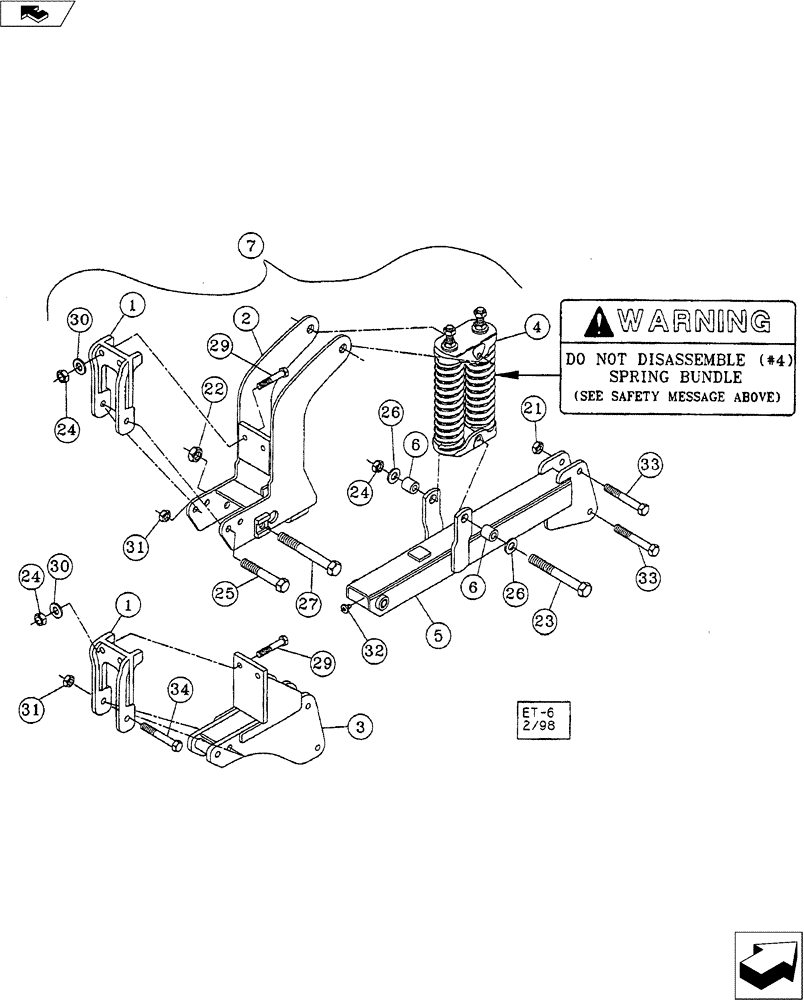

Схема запчастей Case IH 2500 ECOLO-TIL - (75.200.02[02]) - SHANK MOUNT ASSEMBLY (75) - SOIL PREPARATION
21
3
33
24
34
26
30
29
24
29
32
22
7
23
6
1
6
2
31
31
25
33
24
4
5
1
30
27
26
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

09651540

MOUNTING CLIP

Quick

1шт.

2

09651518

MOUNTING PARTS

Auto Reset

1шт.

3

09651560

MOUNTING PARTS

Shear Bolt

1шт.

4

09651530

COIL SPRING

Assembly

1шт.

5

09651520

BEAM ASSY.

Auto Reset

1шт.

6

44006201

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

H.T.

4шт.

7

09651590

SPRING BOX

Auto Reset Assembly

1шт.

21

14001205

NUT

Hex, 3/4" NC

2шт.

22

14111401

LOCK NUT

Stover, 7/8" NC

1шт.

23

16901025

CAPSCREW,Hex, 5/8" - 11 x 7 1/2", Spcl, Gr 5

Hex Bolt , 5/8" x 7-1/2" NC, Gd 5

2шт.

24

14111001

NUT

Stover, 5/8" NC

5шт.

25

16901226

SPECIAL BOLT

Hex, 3/4" x 6-7/8"

1шт.

26

NSS

NOT SOLD SEPARAT

5/8" Standard Washer Z.P

4шт.

27

16901435

BOLT

Hex, 7/8" x 7-3/4" NC, Gd. 5

1шт.

29

16010285

BOLT

5/8" x 7" NC Gd.8

2шт.

30

17411012

WASHER

11/16" x 1-3/4" O.D. x .250"

2шт.

31

14111201

LOCK NUT

Stover 3/4

1шт.

32

NSS

NOT SOLD SEPARAT

1/8" NPT Grease Zerk

1шт.

33

16901215

BOLT

Hex, 3/4" x 3-3/4" A325 Gd. 5

2шт.

34

16901217

BOLT

Special Hex, 3/4" x 6" NC

1шт.
