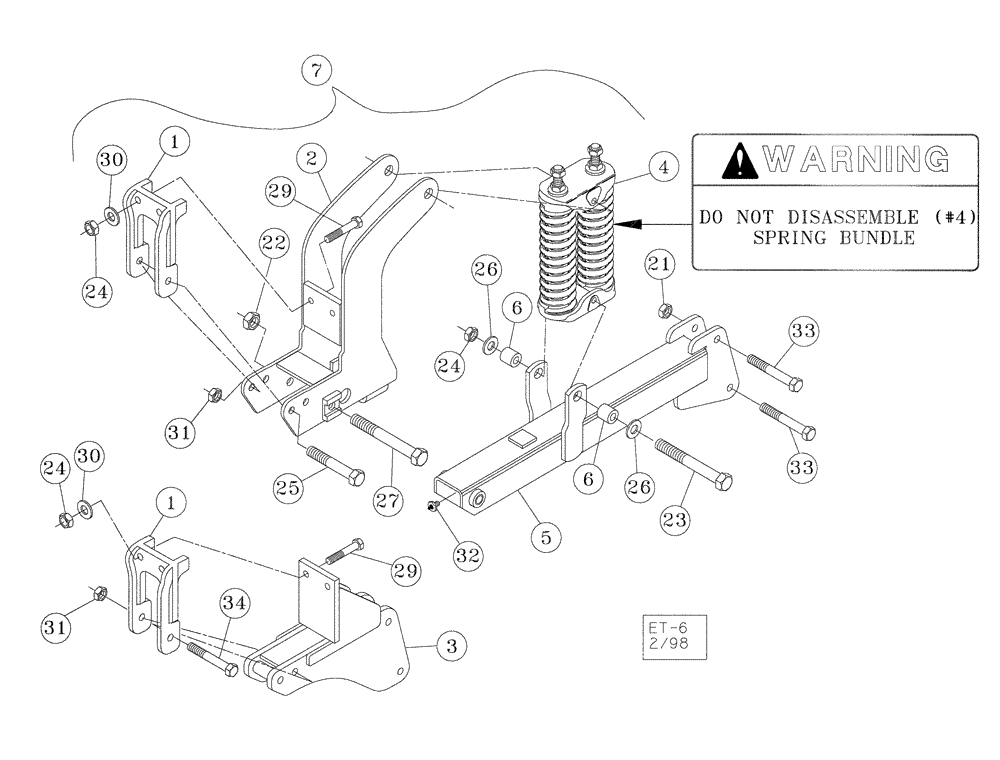

Запчасти Case IH 2500 ECOLO-TIL (75.200.01) - SHANK MOUNT ASSEMBLY 2007 AND PRIOR UNITS (75) - SOIL PREPARATION

1

09651540

MOUNTING CLIP

Quick

1шт.

2

09651518

MOUNTING PARTS

Auto Reset

1шт.

3

09651560

MOUNTING PARTS

Shear Bolt

1шт.

3

09651530

COIL SPRING

Assembly

1шт.

4

87443458

CASTING

Two Single Springs

1шт.

4

09651530

COIL SPRING

Two Double Springs

1шт.

5

09651520

BEAM ASSY.

Auto Reset

1шт.

6

44006201

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

Heat Treated

4шт.

7

09651590

SPRING BOX

Auto Reset

1шт.

21

14001205

NUT

3/4" NC, Hex.

2шт.

21

425-1012

NUT,3/4"-10, G5

2шт.

22

87681198

NUT,Hex, 7/8"-9, 0.45 high

7/8", NC, Stover

1шт.

22

232-41414

NUT

7/8" NC Stover

1шт.

22

14111401

LOCK NUT

7/8", NC, Stover

1шт.

23

16901025

CAPSCREW,Hex, 5/8" - 11 x 7 1/2", Spcl, Gr 5

5/8" x 7-1/2", NC, Hex., Gd. 5

2шт.

24

85700693

NUT,5/8" - 11, Gr C

5шт.

24

14111001

NUT

5/8", NC, Stover, Lock

5шт.

24

232-41410

LOCK NUT,5/8"-11, GC

NC, Stover

5шт.

25

16901226

SPECIAL BOLT

3/4" x 6-7/8"

1шт.

26

NSS

NOT SOLD SEPARAT

5/8" Standard, ZP

4шт.

26

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

Standard, ZP

4шт.

27

16901435

BOLT

7/8" x 7-3/4", NC, Hex., Gd. 5

1шт.

26

495-21069

WASHER,5/8"

Standard, ZP

4шт.

29

280293

BOLT,Hex, 5/8" - 11 x 7", Gr 5

2шт.

29

16010285

BOLT

5/8" x 7", NC, Hex., Gd. 5

2шт.

29

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

2шт.

30

495-81028

WASHER,21/32" x 1 1/2" x .240"

2шт.

30

17411012

WASHER

11/16" x 1-3/4" O.D. x .250"

2шт.

31

280375

NUT,3/4"-10, GC

1шт.

31

14111201

LOCK NUT

3/4", NC, Stover

1шт.

31

232-41412

LOCK NUT,3/4"-10, GC

NC Stover

1шт.

32

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

32

NSS

NOT SOLD SEPARAT

1/8", NPT

1шт.

33

326-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 8

2шт.

33

16901215

BOLT

3/4" x 3-3/4" A325, Hex., Gd. 5

2шт.

34

16901217

BOLT

3/4 x 6, NC, Special, Hex

1шт.
