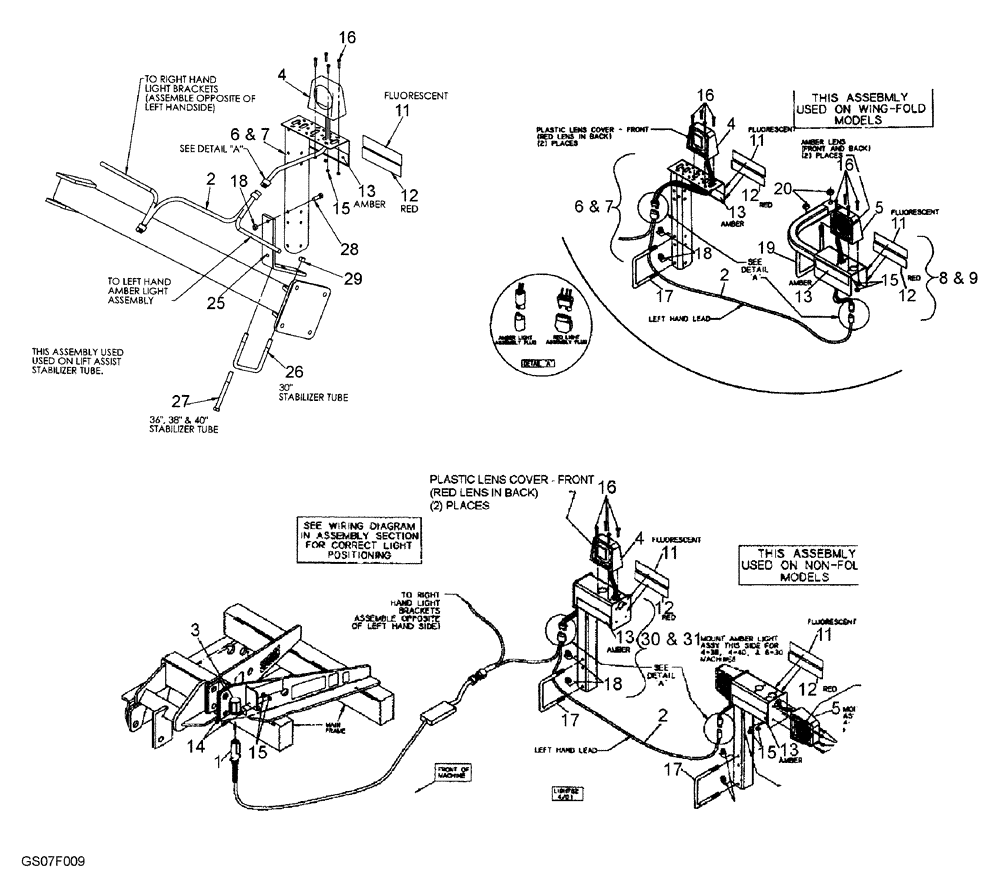

Запчасти Case IH 2500 ECOLO-TIL (55.404.02) - WARNING AND TAILLIGHT KIT DISC LEVELER (55) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
27602314
WIRE HARNESS
Front
1шт.
1
255316A1
HARNESS
Extension To Tractor, Use If Needed
1шт.
2
27602226
WIRE HARNESS
Rear
1шт.
2
27602229
WIRE HARNESS
Rear Wiring Harness, Lift Assist
1шт.
3
27601214
HOLDER
Plug
1шт.
4
27602202
LIGHT ASSY.
Red
2шт.
5
27602201
LIGHT ASSY.
Amber
2шт.
6
87328897
BRACKET
Rh, A And B Frames, Inc. 11 - 13, Accessory
2шт.
6
87328897
BRACKET
Rh, C And D Frames, Inc. 11 - 13
1шт.
7
87328898
BRACKET
Lh, A And B Frames, Inc. 11 - 13, Accessory
2шт.
7
87328898
BRACKET
Lh, C And D Frames, Inc. 11 - 13
1шт.
8
87328897
BRACKET
Rh, C And D Frame, Inc. 11 - 13, Wing Fold Only
1шт.
9
87328898
BRACKET
Lh, C And D Frame, Inc. 11 - 13, Wing Fold Only
1шт.
11
311865A1
REFLECTOR
Flourescent
4шт.
12
311863A1
REFLECTOR
Red
4шт.
13
311864A1
REFLECTOR
Amber
4шт.
14
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
2шт.
15
86992211
NUT
1/4, Stover
18шт.
16
413-420
BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5
16шт.
17
16309101
U-BOLT,3/8" - 16, Square, 4" W x 6" L
BOLT "U" 3/8 x 4 x 6, A And B, Accessory
4шт.
17
16309110
U-BOLT
3/8 x 4 x 6, C And D
2шт.
18
231-4246
LOCK NUT,3/8"-16, GB
A and B, Accessory
4шт.
18
231-4246
LOCK NUT,3/8"-16, GB
C And D
2шт.
19
413-1028
BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5
5/8 x 1-3/4, Hex, C And D
4шт.
20
231-42410
LOCK NUT,5/8"-11, GB
5/8
4шт.
21
30007000
CABLE TIE,.350" x 20.9"
CABLE STRAP 20, Hose Tie
1шт.
22
386170C1
CABLE TIE,.30" x 27 1/2"
CABLE STRAP 30, Hose Tie
1шт.
23
27601215
LENS
Amber
1шт.
24
27601216
LENS
Red
1шт.
25
09662170
SUPPORT
Light Bracket, Lift Assist Mount
2шт.
26
87427168
U-BOLT
5/8 x 6 x 5-1/2, 30 Inch Spacing
1шт.
27
413-10104
BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5
NC, 36, 38, & 40
1шт.
28
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
4шт.
29
85700693
NUT,5/8" - 11, Gr C
4шт.
30
27602440
SUPPORT
Light Bracket, Lh, Non-Fold Units
2шт.
31
27602445
SUPPORT
Light Bracket, Rh, Non-Fold Units
2шт.
Выбрано товаров: 36
