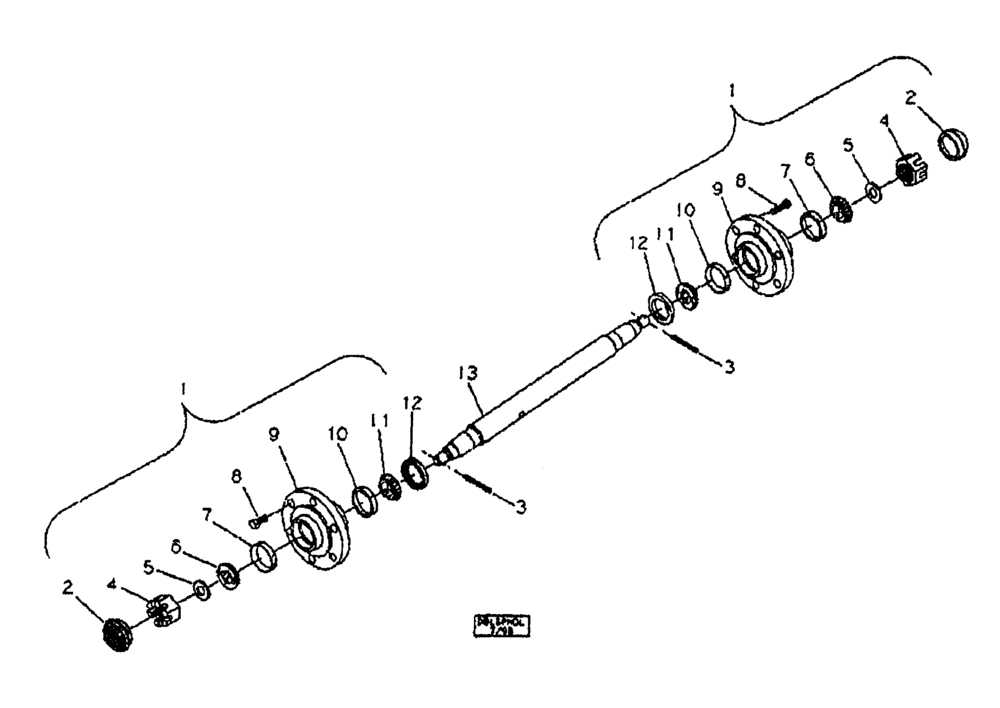

Запчасти Case IH 2500 ECOLO-TIL (44.100.09) - 783 DUAL HUB AND SPINDLE (44) - WHEELS

1

28178300

HUB ASSY.

783

1шт.

2

28477700

HUB CAP

2шт.

3

432-1024

COTTER PIN,5/32" x 1 1/2"

2шт.

4

425-1314

SLOTTED NUT,7/8"-14, G5

2шт.

5

87716935

WASHER,22.6mm ID x 44.5mm OD x 6.4mm Thk

2шт.

6

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1.25 Bore, Timken LM67048

2шт.

7

651817R1

BEARING CUP

2.33 OD, Timken LM67010

2шт.

7

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

8

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

1/2 x 1, NF, Wheel

12шт.

9

28278300

HUB

783, With Cups

2шт.

10

663558R1

BEARING CUP

2.89 OD, Timken LM501310

2шт.

11

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1.625 Bore, Timken LM501349

2шт.

12

145769C91

OIL SEAL

1.87, CR18823

2шт.

13

28378314

SPINDLE

2.5, Double

1шт.
