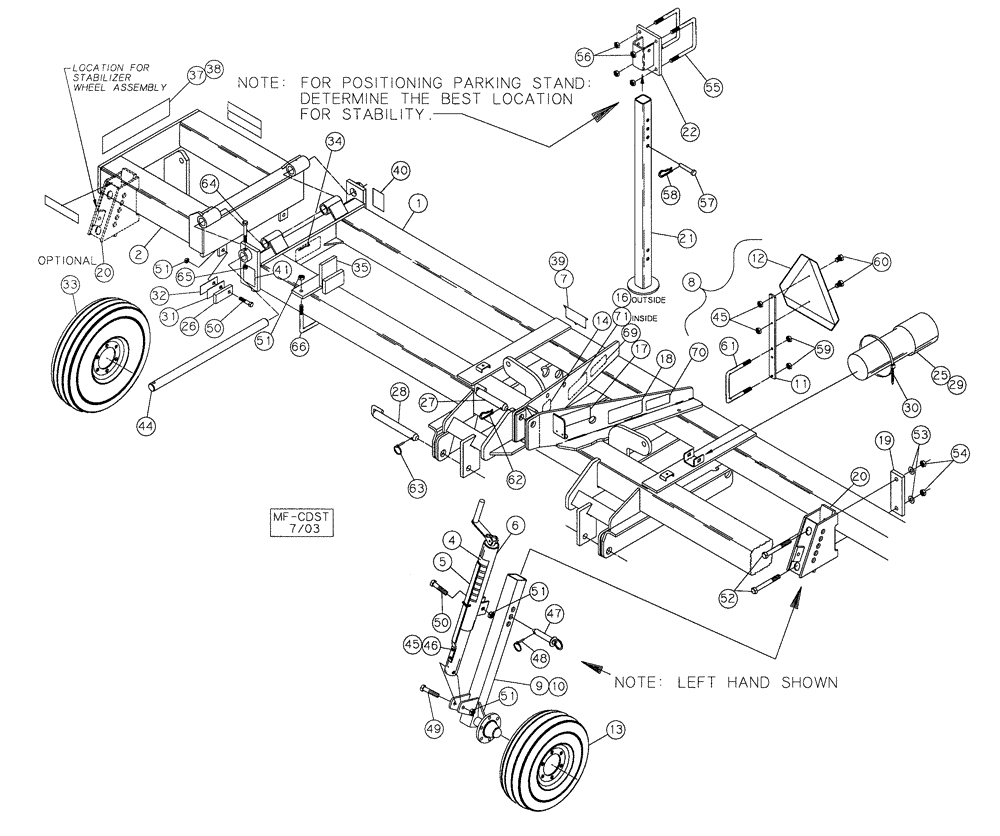

Запчасти Case IH 2500 ECOLO-TIL (39.100.06) - C AND D MAIN FRAME HYDRAULIC FOLD WINGS RIP STRIP (39) - FRAMES AND BALLASTING

1

09662520W

FRAME ASSY

Main C, 132

1шт.

1

09662530W

FRAME ASSY

MainD, 166

1шт.

2

09661410W

FRAME

Wing, 28, Rh

1шт.

2

09661420W

FRAME

Wing, 28, Lh

1шт.

2

09661620W

FRAME

Wing, 43, Rh

1шт.

2

09661630W

TUBE ASSY.

Wing, 43, Lh

1шт.

2

09661450W

TUBE ASSY.

Wing, 61, Rh

1шт.

2

09661460W

TUBE ASSY.

Wing, 61, Lh

1шт.

4

18534292

DECAL

Depth Indicator

2шт.

5

09661286

INDICATOR STRIP

2шт.

6

32253000

JACK ASSY.

5000

2шт.

8

18584100

PRODUCT GRAPHIC

SMV, 2500

1шт.

9

09661280

SPINDLE

Rh, Facing Front Or Lh Facing Back

1шт.

10

09661290

SPINDLE

Lh, Facing Front Or Rh Facing Back, Lh Front Shown

1шт.

11

06000099

BRACE

SMV

1шт.

12

311860A1

EMBLEM

SMV, Black

1шт.

13

10008260

LAND WHEEL

20.5 x 8, 6-Bolt, Silver

2шт.

14

NSS

NOT SOLD SEPARAT

Serial Number Plate, 87444766

1шт.

15

311864A1

REFLECTOR

Amber

2шт.

16

18534282

WARNING DECAL

1шт.

17

18534362

DANGER DECAL

1шт.

18

18534361

DANGER DECAL

1шт.

19

09576610

LINKAGE

Flat

2шт.

20

09661270

BRACKET

Gauge Wheel Mounting

2шт.

20

09661320

BRACKET

Gauge Wheel Mounting, Optional

2шт.

21

09661250

STAND

Parking

1шт.

22

09661260

STAND

Parking

1шт.

23

311865A1

REFLECTOR

Fluorscent

2шт.

24

311863A1

REFLECTOR

Red

2шт.

25

30026030

TUBE

Manual

1шт.

26

09661457

SHIM

0.625 Thick

4шт.

27

14820364

SPECIAL PIN

1-1/4 Dia., Coated

1шт.

28

14823718

SPECIAL PIN

1-7/16, Coated

2шт.

30

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

1шт.

31

09661456

SHIM

0.113 Thick

4шт.

32

09661455

SHIM

8шт.

33

10006250

WHEEL ASSY.

7.60 x 15, Silver, Stabalizer Wheel Option

2шт.

34

18534227

DANGER DECAL

2шт.

35

09661650

TUBE ASSY.

Wing Stop, Rh

1шт.

Used On Some Configurations

1шт.

35

09661660

TUBE ASSY.

Wing Stop, Lh

1шт.

Used On Some Configurations

1шт.

37

18535031

DECAL

Case IH, 2500, Lh

1шт.

Used On 2006 And Prior Units

1шт.

37

87735837

DECAL

Case IH, 2500, Lh

1шт.

Used On 2007 And After Models

1шт.

38

18535032

DECAL

Case IH, 2500, Rh

1шт.

Used On 2006 And Prior Units

1шт.

38

87735838

DECAL

Case IH, 2500, Rh

1шт.

Used On 2007 And After Models

1шт.

39

87563598

DECAL

2шт.

40

18534244

REFLECTOR

Red

2шт.

41

18534243

REFLECTOR

Amber

2шт.

44

14892690

SPECIAL PIN

Wing Hinge

2шт.

45

86992211

NUT

1/4, NC, Hex

2шт.

46

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

2шт.

47

14816348

PIN,25.4mm OD x 133.35mm L

2шт.

48

A30338

PIN

1/4 Dia. x 1-3/4, Klik

2шт.

49

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

50

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

51

85700693

NUT,5/8" - 11, Gr C

12шт.

52

413-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

4шт.

53

492-11075

LOCK WASHER,3/4"

4шт.

54

425-1012

NUT,3/4"-10, G5

4шт.

55

87427163

U-BOLT

BOLT "U" 5/8 x 6 x 7-1/2

2шт.

56

425-1010

NUT,5/8"-11, G5

4шт.

57

14810270

CLEVIS

5/8 x 3-1/2, EL

1шт.

58

14720411

COTTER PIN

PIN, COTTER 1/8 x 2, Hair, ZP

1шт.

59

86992213

NUT

3/8, NC, Stover

2шт.

60

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

61

16309110

U-BOLT

3/8 x 6 x 6

1шт.

62

1978738C1

HAIR PIN COTTER

3/16" x 3

2шт.

63

D33805

PIN

7/16 x 2, Klik

2шт.

64

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

2шт.

65

86992215

LOCK NUT,1/2"-13, GC

Hex

2шт.

66

87427163

U-BOLT

BOLT "U" 5/8 x 6 x 7-1/2

2шт.

69

18534277

DECAL

Warning

1шт.

70

18534387

CAUTION DECAL

1шт.

71

18534107

DECAL

Patent

1шт.

72

87594280

DECAL

Case CIH Logo

1шт.

Used On Some Configurations

1шт.
