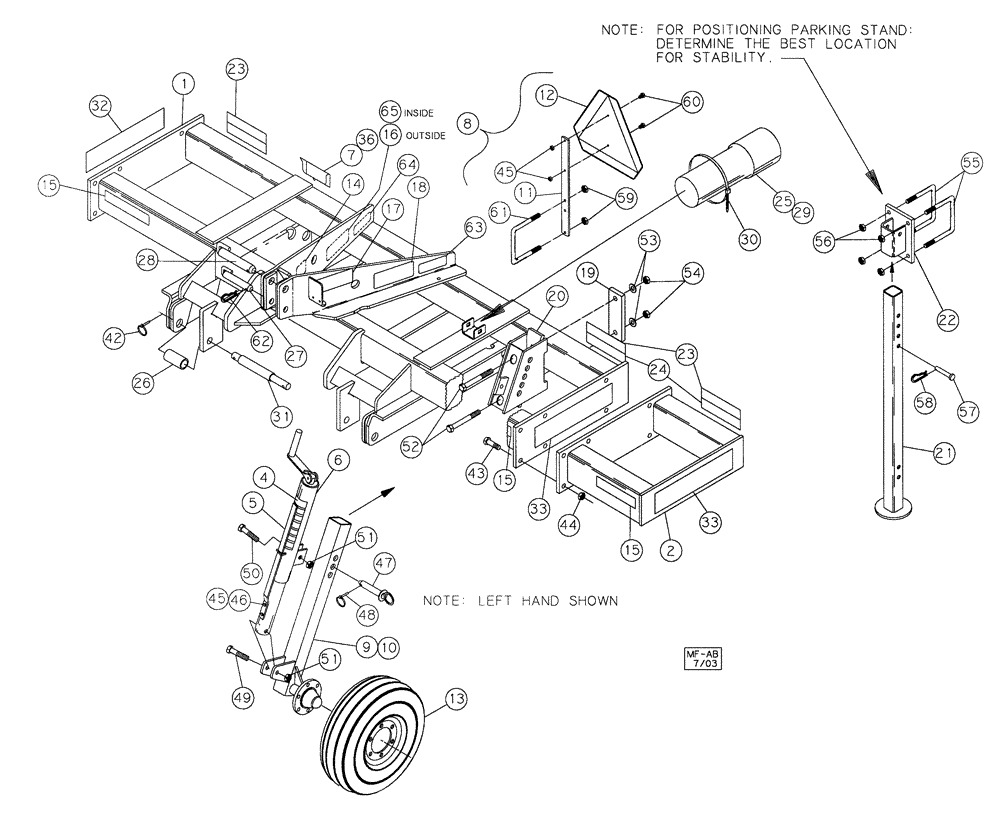

Запчасти Case IH 2500 ECOLO-TIL (39.100.05) - A AND B MAIN FRAME BOLT ON WINGS RIP STRIP (39) - FRAMES AND BALLASTING

1

09662500W

FRAME ASSY

Main, A, 99

1шт.

1

09662510W

FRAME ASSY

Main, B, 135

1шт.

2

09661600W

TUBE ASSY.

Wing, Lh, 17

1шт.

2

09661700W

SPECIAL BOLT

Wing, Rh, 17

1шт.

2

09661610W

TUBE ASSY.

Wing, Lh, 27

1шт.

2

09661710W

SPECIAL BOLT

Wing, Rh, 27

1шт.

4

18534292

DECAL

Depth Indicator

2шт.

5

09661286

INDICATOR STRIP

Indicator

2шт.

6

32253000

JACK ASSY.

5000

2шт.

8

18584100

PRODUCT GRAPHIC

SMV, 2500

1шт.

9

09661280

SPINDLE

Rh, Facing Front Or Lh Facing Back

1шт.

10

09661290

SPINDLE

Lh Facing Front Or Rh Facing Back, Lh Front Shown

1шт.

11

06000099

BRACE

SMV

1шт.

12

311860A1

EMBLEM

SMV, Black

1шт.

13

10008260

LAND WHEEL

20.5 x 8, 6-Bolt, Silver

2шт.

14

NSS

NOT SOLD SEPARAT

Serial Number Plate

1шт.

15

311864A1

REFLECTOR

Amber

4шт.

16

18534282

WARNING DECAL

Warning

1шт.

17

18534362

DANGER DECAL

Warning

1шт.

18

18534361

DANGER DECAL

Warning

1шт.

19

09576610

LINKAGE

Flat

2шт.

20

09661270

BRACKET

Gauge Wheel Mounting

2шт.

21

09661250

STAND

Parking

2шт.

22

09661260

STAND

Parking

1шт.

23

311865A1

REFLECTOR

Fluorescent

4шт.

24

311863A1

REFLECTOR

Red

4шт.

25

30026030

TUBE

Manual

1шт.

26

02305000

SPACER

Category 3, Hitch Pin

2шт.

27

14816500

SPECIAL PIN

1 Dia., Clevis, Coated

1шт.

28

14820364

SPECIAL PIN

1-1/4 Dia., Coated

1шт.

30

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

1шт.

31

14892370

SPECIAL PIN,36.52mm OD x 382.52mm L

Combination 3 Point, Coated

1шт.

32

18535031

DECAL

Case IH 2500, Rh

1шт.

Used On 2007 And After Models

1шт.

32

87735837

DECAL

Case IH, 2500, Rh

1шт.

Used On 2007 And After Models

1шт.

33

18535032

DECAL

Case IH 2500, Lh

1шт.

Used On 2006 And Prior Units

1шт.

33

87735838

DECAL

Case IH 2500, Lh

1шт.

Used On 2007 And After Models

1шт.

36

87563598

DECAL

2шт.

42

A33509

PIN,11.18mm OD

Klik

2шт.

43

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

12шт.

44

425-1012

NUT,3/4"-10, G5

12шт.

45

86992211

NUT

1/4, NC, Hex

2шт.

46

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

2шт.

47

14816348

PIN,25.4mm OD x 133.35mm L

2шт.

48

A30338

PIN

1/4 Dia. x 1-3/4, Klik

2шт.

49

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

50

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

51

85700693

NUT,5/8" - 11, Gr C

8шт.

52

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

4шт.

53

492-11075

LOCK WASHER,3/4"

4шт.

54

425-1012

NUT,3/4"-10, G5

4шт.

55

87427168

U-BOLT

5/8 x 6 x 5-1/2

2шт.

56

425-1010

NUT,5/8"-11, G5

4шт.

57

14810270

CLEVIS

5/8 x 3-1/2, EL

1шт.

58

14720411

COTTER PIN

PIN, COTTER 1/8 x 2, Hair, ZP

1шт.

59

86992213

NUT

3/8, NC, Stover

2шт.

60

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

61

16309101

U-BOLT,3/8" - 16, Square, 4" W x 6" L

BOLT "U" 3/8 x 6 x 4

1шт.

62

1978738C1

HAIR PIN COTTER

3/16" x 3

2шт.

63

18534387

CAUTION DECAL

1шт.

64

18534277

DECAL

Warning

1шт.

65

18534107

DECAL

Patent

1шт.

66

87594280

DECAL

Case CIH Logo

1шт.

Used On 2007 And After Models

1шт.
