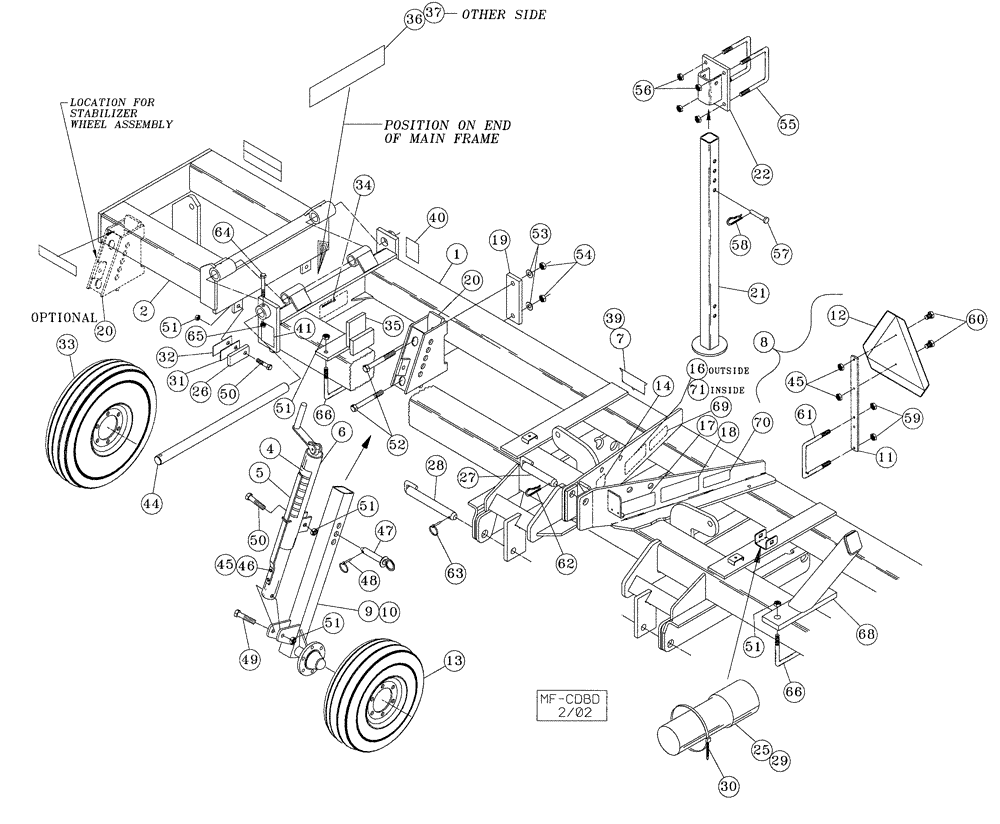

Запчасти Case IH 2500 ECOLO-TIL (39.100.04) - C AND D MAIN FRAME HYDRAULIC FOLD WINGS RIP BED (39) - FRAMES AND BALLASTING
№
Артикул
Название
Примечание
Количество
1
09662520W
FRAME ASSY
Main, C, 132, Red
1шт.
1
09662530W
FRAME ASSY
Main, D, 166, Red
1шт.
2
09661410W
FRAME
Wing Weld, 28, RH, Red
1шт.
2
09661420W
FRAME
Wing Weld, 28, LH, Red
1шт.
2
09661620W
FRAME
Wing Weld, 43, RH, Red
1шт.
2
09661630W
TUBE ASSY.
Wing Weld, 43, LH, Red
1шт.
2
09661450W
TUBE ASSY.
Wing Weld, 61 RH, Red
1шт.
2
09661460W
TUBE ASSY.
Wing Weld, 61, LH, Red
1шт.
4
18534292
DECAL
Depth Indicator
2шт.
3
09661285
JACK
Screw, Assembly
2шт.
5
09661286
INDICATOR STRIP
2шт.
6
32253100
JACK ASSY.
5000
2шт.
7
18534259
DECAL
DMI
2шт.
8
18584100
PRODUCT GRAPHIC
SMV Kit, 2500
1шт.
9
09661290
SPINDLE
Weld, RH Facing Front Or LH Facing Back
1шт.
11
06000099
BRACE
SMV
1шт.
10
09661280
SPINDLE
Weld, LH Facing Front Or RH Facing Back
1шт.
13
10008260
LAND WHEEL
20.5 x 8, 6-Bolt, Silver
2шт.
12
18581100
WARNING SIGN
SMV, Steel Back
1шт.
14
NSS
NOT SOLD SEPARAT
S.NO., Start Serial: (18510009)
1шт.
15
18534367
ADHESIVE
Amber Reflector
2шт.
16
18534282
WARNING DECAL
1шт.
17
18534362
DANGER DECAL
1шт.
19
09576610
LINKAGE
Flat
2шт.
18
18534361
DANGER DECAL
1шт.
20
09661270
BRACKET
Gauge Wheel
2шт.
20
09661320
BRACKET
Gauge Wheel, Optional
2шт.
21
09661250
STAND
Parking, Weld
1шт.
22
09661260
STAND
Parking, Weld
1шт.
23
18534364
INDICATOR STRIP
Fluorescent
2шт.
25
30026030
TUBE
Manual
1шт.
24
18534363
ADHESIVE STRIP
Reflective, Red
2шт.
26
09661457
SHIM
0.0625" Thick
4шт.
27
14820364
SPECIAL PIN
1-1/4" Dia., Coated
1шт.
28
14823718
SPECIAL PIN
1-7/16", Weld, Coated
2шт.
29
00101177
2500 Rip-Bed
1шт.
30
22513500
CARRIAGE BOLT
Worm Gear
1шт.
32
09661455
SHIM
8шт.
31
09661456
SHIM
0.113", Thick
4шт.
33
10006250
WHEEL ASSY.
7.60 x 15, Silver, Stabalizer Option
2шт.
34
18534227
DANGER DECAL
2шт.
35
09661650
TUBE ASSY.
Wing Stop, RH
1шт.
Used On Some Configurations
1шт.
35
09661660
TUBE ASSY.
Wing Stop, LH
1шт.
Used On Some Configurations
1шт.
36
18535031
DECAL
Case IH, 2500, RH
1шт.
Used On 2006 And Prior Units
1шт.
36
87735837
DECAL
Case IH, 2500, RH
1шт.
Used On 2007 And After Models
1шт.
37
18535002
DECAL
Case IH, 2500, LH
1шт.
Used On 2006 And Prior Units
1шт.
37
87735838
DECAL
Case IH, 2500, LH
1шт.
Used On 2007 And After Models
1шт.
38
18535001
DECAL
2500 Case IH, RH
1шт.
39
18535000
DECAL
Case IH
1шт.
40
18534244
REFLECTOR
Red
2шт.
41
18534243
REFLECTOR
Amber
2шт.
44
14892690
SPECIAL PIN
Wing Hinge
2шт.
45
NSS
NOT SOLD SEPARAT
1/4", NC, Hex., Lock Nut
2шт.
46
NSS
NOT SOLD SEPARAT
1/4" x 2-1/2", NC, ZP
2шт.
47
14816348
PIN,25.4mm OD x 133.35mm L
2шт.
48
14710814
SMALL PIN
1/4" Dia. x 1-3/4", Klik
2шт.
49
16010145
BOLT
5/8" x 3-1/2" NC, Gd. 5, ZP
2шт.
50
16010085
BOLT
5/8" x 2", NC, Gd. 5, ZP
2шт.
51
NSS
NOT SOLD SEPARAT
5/8", NC, Lock Nut
12шт.
52
16012345
BOLT
3/4" x 8-1/2", NC, Hex.
4шт.
53
NSS
NOT SOLD SEPARAT
3/4", Lock Nut
4шт.
54
NSS
NOT SOLD SEPARAT
3/4" NC, Hex Bolt
4шт.
55
16310028
SPECIAL BOLT
5/8" x 6" x 7-1/2", U
2шт.
56
NSS
NOT SOLD SEPARAT
5/8" NC, Hex Bolt
4шт.
57
14810270
CLEVIS
5/8" x 3-1/2", EL, Pin
1шт.
58
14720411
COTTER PIN
PIN, COTTER 1/8" x 2", Hair, ZP
1шт.
59
NSS
NOT SOLD SEPARAT
3/8", NC, Stover
2шт.
60
NSS
NOT SOLD SEPARAT
1/4" x 3/4", NC
2шт.
61
16309110
U-BOLT
3/8" x 6" x 6"
1шт.
62
14720608
SCREW
3/16" x 3", Hair Pin
2шт.
63
14710816
PIN, LOCKING
7/16" x 2", Klik
2шт.
64
16008135
BOLT
1/2" x 3-1/4" HC Hex., Gd. 5
2шт.
65
14110801
LOCK NUT
1/2", NC, Hex., Lock
2шт.
66
16310028
SPECIAL BOLT
5/8" x 6" x 7-1/2", U
2шт.
68
09661905
STOP
Wing
2шт.
6-40, 2500 Rip Bed Only
1шт.
69
18534277
DECAL
Warning
1шт.
70
18534387
CAUTION DECAL
1шт.
71
18534107
DECAL
Patent
1шт.
72
87594280
DECAL
Case CIH
1шт.
Used On 2007 And After Models
1шт.
Выбрано товаров: 87
