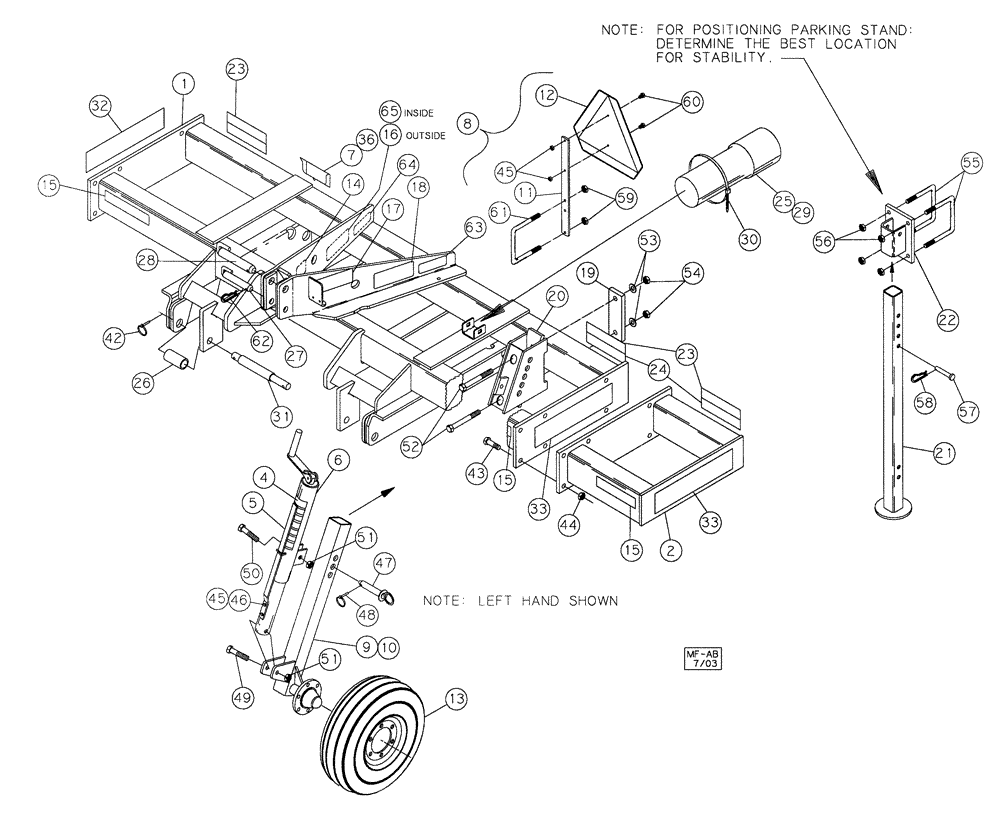

Запчасти Case IH 2500 ECOLO-TIL (39.100.03) - A AND B MAIN FRAME BOLT ON WINGS - RIP BED (39) - FRAMES AND BALLASTING

1

09662500W

FRAME ASSY

Main, A, 99, Red

1шт.

1

09662510W

FRAME ASSY

Main, B, 135, Red

1шт.

2

09661600W

TUBE ASSY.

Wing Weld, 17

1шт.

2

09661610W

TUBE ASSY.

Wing Weld, 17

1шт.

3

09661285

JACK

Screw Assembly

2шт.

4

18534292

DECAL

Depth Indicator

2шт.

5

09661286

INDICATOR STRIP

2шт.

6

32253100

JACK ASSY.

5000

2шт.

7

18534259

DECAL

DMI

2шт.

8

18584100

PRODUCT GRAPHIC

SMV, 2500

1шт.

9

09661280

SPINDLE

RH Facing Front Or LH Facing Back, Weld

1шт.

10

09661290

SPINDLE

LH Facing Front Or RH Facing Back, Weld

1шт.

11

06000099

BRACE

SMV

1шт.

12

18581100

WARNING SIGN

SMV, Steel Black

1шт.

13

10008260

LAND WHEEL

20.5 x 8, 6-Bolt, Silver

2шт.

14

NSS

NOT SOLD SEPARAT

Serial Number Plate

1шт.

15

18534367

ADHESIVE

Amber Reflector

4шт.

17

18534362

DANGER DECAL

Warning

1шт.

18

18534361

DANGER DECAL

Warning

1шт.

19

09576610

LINKAGE

Flat

2шт.

20

09661270

BRACKET

Gauge Wheel Mounting

2шт.

21

09661250

STAND

Parking

1шт.

22

09661260

STAND

Parking

1шт.

23

18534364

INDICATOR STRIP

Flourscent

4шт.

24

18534363

ADHESIVE STRIP

Reflector, Red

4шт.

25

30026030

TUBE

Manual

1шт.

26

02305000

SPACER

Catagory 3, Hitch Pin

2шт.

27

14816500

SPECIAL PIN

1 Dia., Clevis, Weld, Coated

1шт.

28

14820364

SPECIAL PIN

1-1/4 Dia., Weld, Coated

1шт.

29

00101177

2500 Rip-Bed Manual

1шт.

30

22513500

CARRIAGE BOLT

Worm Gear Clamp

1шт.

31

14892370

SPECIAL PIN,36.52mm OD x 382.52mm L

Combination 3 Point, Coated

1шт.

32

18535031

DECAL

Case IH, 2500, Rh

1шт.

For 6 Row 36, C Frame And 8 Row 40, D Frame

1шт.

32

87735837

DECAL

Case IH, 2500, Rh

1шт.

Used On 2007 And After Models

1шт.

33

18535032

DECAL

Case IH, 2500, Lh

1шт.

Used On 2006 And Prior Units

1шт.

33

87735838

DECAL

Case IH, 2500, Lh

1шт.

Used On 2007 And After Models

1шт.

34

18535002

DECAL

2500 Case IH LH

2шт.

35

18535001

DECAL

2500 Case IH RH

2шт.

36

18535000

DECAL

Case IH

2шт.

42

14710815

PIN, LOCKING

Klik

2шт.

43

16012105

BOLT

3/4" x 2-1/2", NC, Gd. 5, ZP

12шт.

44

NSS

NOT SOLD SEPARAT

3/4", NC, Hex., Gd. 5

12шт.

45

NSS

NOT SOLD SEPARAT

1/4", NC, Hex., Lock

2шт.

46

NSS

NOT SOLD SEPARAT

1/4" X 2-1/2", NC, ZP

2шт.

47

14816348

PIN,25.4mm OD x 133.35mm L

2шт.

48

14710814

SMALL PIN

1/4 Dia. x 1-3/4, Klik

2шт.

49

16010145

BOLT

2шт.

50

16010085

BOLT

2шт.

51

NSS

NOT SOLD SEPARAT

5/8", NC, Lock Nut

8шт.

52

16012265

3/4" x 6-1/2" NC, Gd. 5, ZP

4шт.

53

NSS

NOT SOLD SEPARAT

3/4" Lock Nut

4шт.

54

NSS

NOT SOLD SEPARAT

3/4" NC, Hex Bolt.

4шт.

55

16310030

U-BOLT

BOLT "U" 5/8" x 6" x 5-1/2"

2шт.

56

NSS

NOT SOLD SEPARAT

5/8" NC, Hex Bolt.

4шт.

57

14810270

CLEVIS

5/8" x 3-1/2" , EL, Pin

1шт.

58

14720411

COTTER PIN

PIN, COTTER 1/8" x 2" , Hair, ZP

1шт.

59

NSS

NOT SOLD SEPARAT

3/8", NC, Stover

2шт.

60

NSS

NOT SOLD SEPARAT

1/4" x 3/4", NC

2шт.

61

16309101

U-BOLT,3/8" - 16, Square, 4" W x 6" L

BOLT "U" 3/8" x 6" x 4"

1шт.

62

14720608

SCREW

3/16" x 3, Hair Pin

2шт.

63

18534387

CAUTION DECAL

1шт.

64

18534277

DECAL

Warning

1шт.

65

18534107

DECAL

Patent

1шт.

66

87594280

DECAL

Case, CIH

1шт.

Used On 2007 And After Models

1шт.
