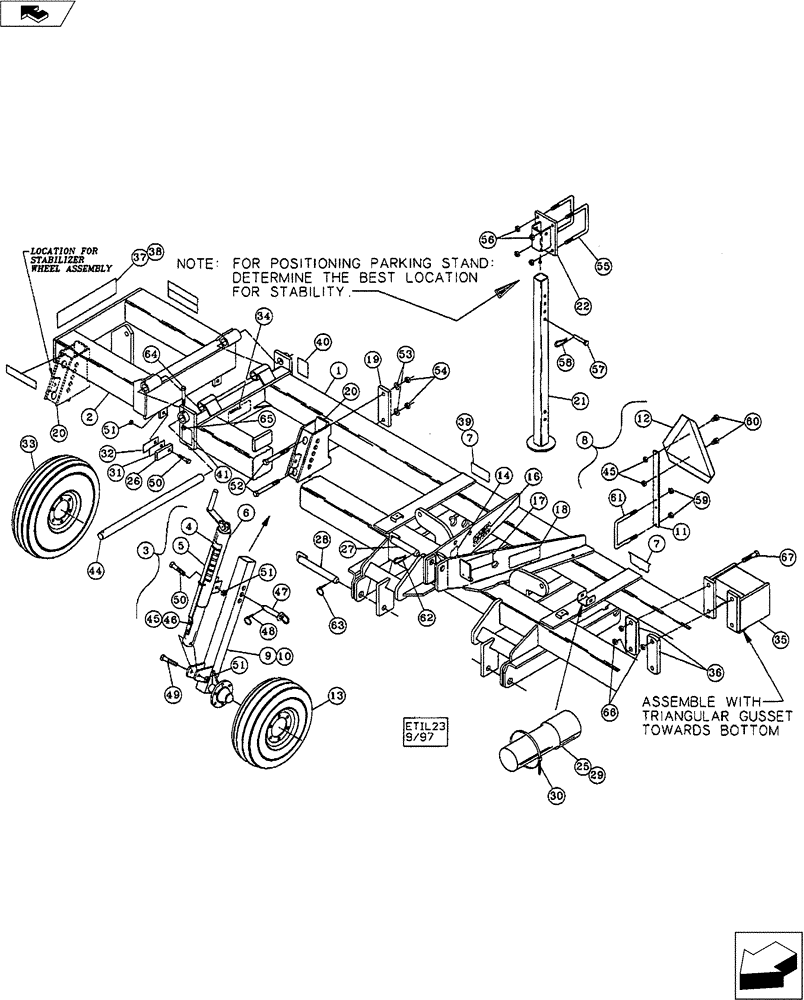

Запчасти Case IH 2500 ECOLO-TIL (39.100.02[01]) - "C" AND "D" MAIN FRAME HYDRAULIC FOLD WINGS (39) - FRAMES AND BALLASTING

1

09662520W

FRAME ASSY

"C" (132") - Red

1шт.

1

09662530W

FRAME ASSY

"D" (166") - Red

1шт.

2

09661410W

FRAME

Wing Weld 28" R.H. - Red

1шт.

2

09661420W

FRAME

Wing Weld 28" L.H. - Red

1шт.

2

09661620W

FRAME

Wing Weld 43" R.H. - Red

1шт.

2

09661630W

TUBE ASSY.

Wing Weld 43" L.H. - Red

1шт.

2

09661450W

TUBE ASSY.

Wing Weld 61" R.H. - Red

1шт.

2

09661460W

TUBE ASSY.

Wing Weld 61' L.H. - Red

1шт.

3

32253000

JACK ASSY.

Inline, 5,000 LB

2шт.

4

18534292

DECAL

Depth Indicator

2шт.

5

09661286

INDICATOR STRIP

2шт.

6

32253100

JACK ASSY.

5,000 LB

2шт.

7

18534259

DECAL

DM1 Logo

2шт.

8

18584100

PRODUCT GRAPHIC

SMV Kit, 2500

1шт.

9

09661280

SPINDLE

Weld, R.H. Facing Front or L.H. Facing Back (R.H. Front Shown)

1шт.

10

09661290

SPINDLE

Weld, L.H. Facing Front or R.H. Facing Back

1шт.

11

06000099

BRACE

SMV

1шт.

12

311860A1

EMBLEM

SMV, Steel Back

1шт.

13

10008260

LAND WHEEL

20.5 x 8 6 Bolt - Silver

2шт.

14

NSS

NOT SOLD SEPARAT

Serial Number Plate

1шт.

15

311864A1

REFLECTOR

Amber

2шт.

16

18534274

DECAL

2500

1шт.

17

18534362

DANGER DECAL

1шт.

18

18534361

DANGER DECAL

1шт.

19

09576610

LINKAGE

Flat

2шт.

20

09661270

BRACKET

Gauge Wheel Mounting

2шт.

20

09661320

BRACKET

Gauge Wheel Mtg (Optional)

2шт.

21

09661250

STAND

Weld

1шт.

22

09661260

STAND

Bracket

1шт.

23

311865A1

REFLECTOR

Fluorscent Strip

2шт.

24

311863A1

REFLECTOR

Red Strip

2шт.

25

30026030

TUBE

Manual Canister

1шт.

26

09661457

SHIM

0.625" thick

4шт.

27

14820364

SPECIAL PIN

1-1/4" Dia. Coated

1шт.

28

14823718

SPECIAL PIN

1-7/16" Weld, Coated

2шт.

29

101161

HOUSING

ecolo-til 2500 Manual

1шт.

30

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

1шт.

31

09661456

SHIM

0.113" thick

4шт.

32

09661455

SHIM

8шт.

33

10006250

WHEEL ASSY.

7.60 x 15 - Silver (Stabilizer Wheel Option)

2шт.

34

18534227

DANGER DECAL

Danger Sign

2шт.

35

09576810

BRACKET

10" Set-Back

1шт.

35

09661890

BRACKET

16" Set-Back

1шт.

36

09576790

STRAP

1шт.

37

18535002

DECAL

2500 Case Stripe Left Hand - Red

1шт.

38

18535001

DECAL

2500 Case Stripe Right Hand - Red

1шт.

39

18535000

DECAL

Case IH

1шт.

40

18534244

REFLECTOR

Red

2шт.

41

18534243

REFLECTOR

Amber

2шт.

44

14892690

SPECIAL PIN

Wing Hinge

2шт.

45

280129

NUT,1/4"-20

2шт.

46

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

2шт.

47

14816348

PIN,25.4mm OD x 133.35mm L

2шт.

48

A30338

PIN

1/4" Dia. x 1-3/4" Klik

2шт.

49

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

50

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

51

232-41410

LOCK NUT,5/8"-11, GC

8шт.

52

413-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

4шт.

53

492-11075

LOCK WASHER,3/4"

4шт.

54

425-1012

NUT,3/4"-10, G5

4шт.

55

16310028

SPECIAL BOLT

5/8" x 6" x 7-1/2"

2шт.

56

425-1010

NUT,5/8"-11, G5

4шт.

57

14810270

CLEVIS

5/8" x 3-1/2" E.L. Pin

1шт.

58

14720411

COTTER PIN

PIN, COTTER 1/8" x 2" Hair, ZP

1шт.

59

232-4146

NUT,3/8"-16, GC

2шт.

60

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

61

16309110

U-BOLT

3/8" x 6" x 6"

1шт.

62

1978738C1

HAIR PIN COTTER

3/16" x 3"

2шт.

63

D33805

PIN

7/16" x 2" Klik

2шт.

64

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

2шт.

65

232-4148

NUT,1/2"-13, GC

2шт.

66

425-1014

NUT,7/8"-9, G5

1шт.

67

413-14104

BOLT,Hex, 7/8" - 9 x 6-1/2", Gr 5

1шт.
