(35.100.02[01]) - HYDRAULIC CYLINDERS 3" X 10"

Запчасти Case IH 2500 ECOLO-TIL (35.100.02[01]) - HYDRAULIC CYLINDERS 3" X 10" (35) - HYDRAULIC SYSTEMS

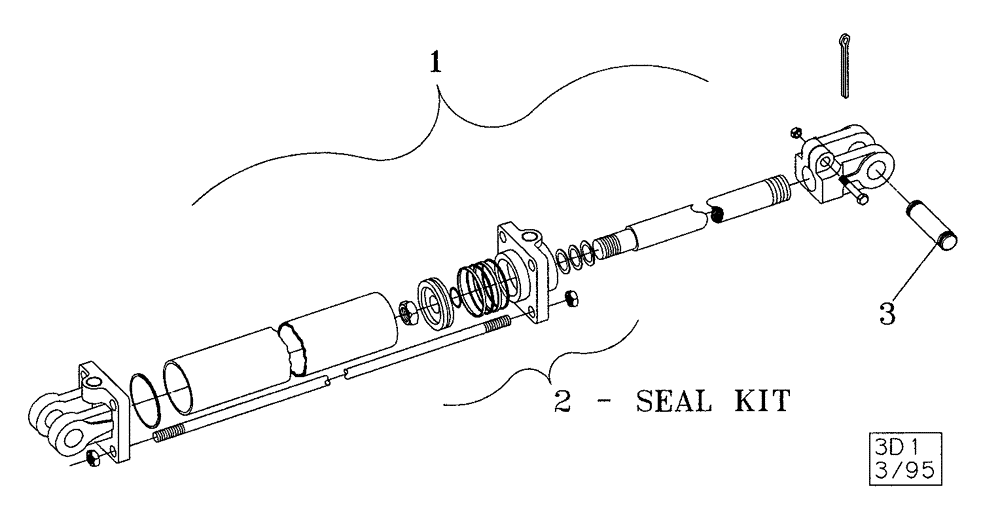

Схема запчастей Case IH 2500 ECOLO-TIL - (35.100.02[01]) - HYDRAULIC CYLINDERS 3" X 10" (35) - HYDRAULIC SYSTEMS
1
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

25335101

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 254mm Stroke

Hydraulic, 3-1/2" x 10", 3000 PSI

1шт.

2

1024314

KIT

Hydraulic Cylinder, 3-1/2" x 10"

1шт.

3

25890100

KIT

Clevis pin, 1" x 3", Incl. pins and cotter pins

1шт.

Выбрано товаров: 3
